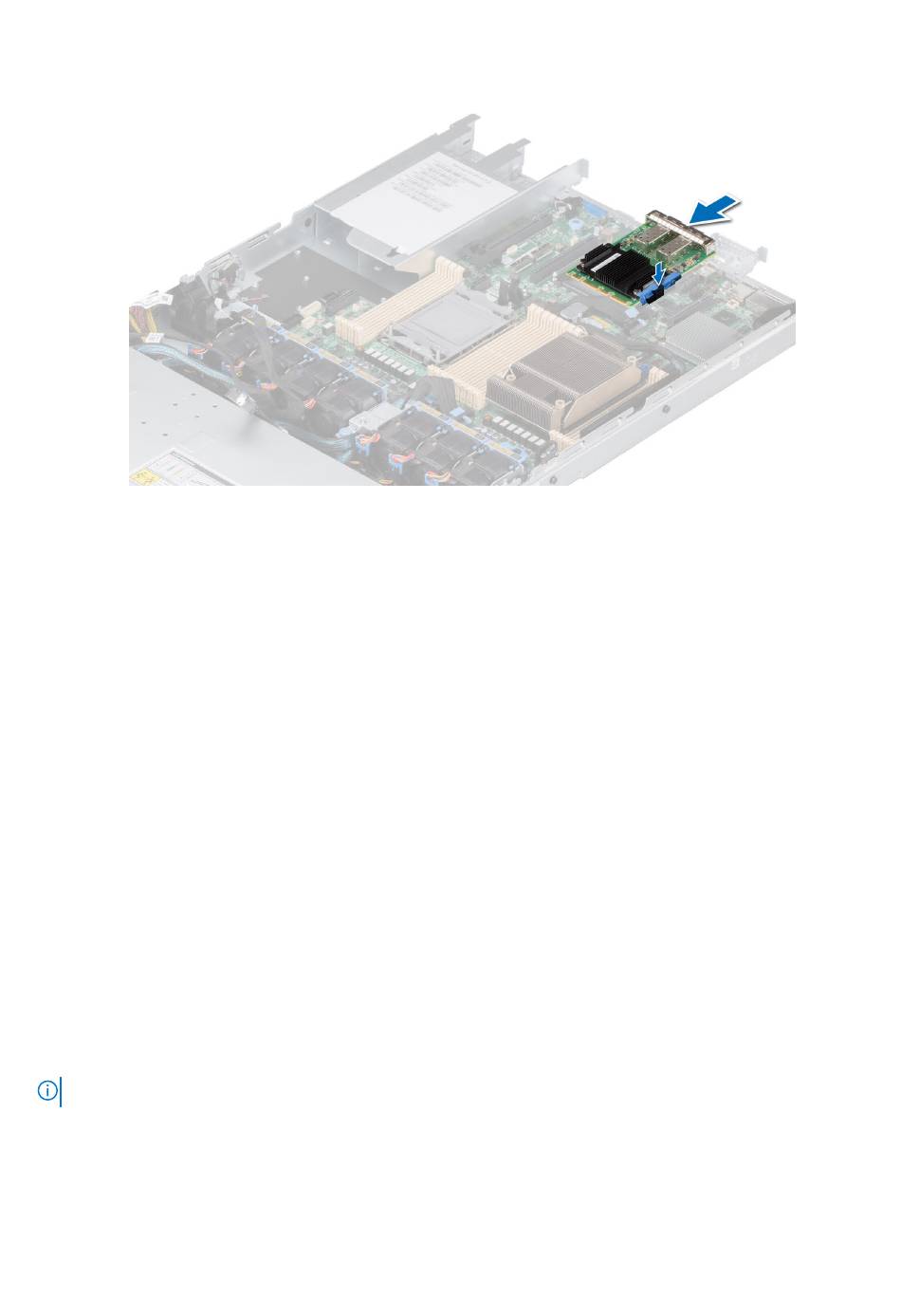

Figure 110. Installing the OCP card
Next steps
1.
Install the expansion card
2. Follow the procedure listed in
Front mounting front PERC module
This is a service technician replaceable part only.
Removing the front mounting front PERC module
Prerequisites
1. Follow the safety guidelines listed in the
2. Follow the procedure listed in the
3.
Remove the drive backplane
4. If installed,
remove the air
5. Disconnect all the cables, observe the cable routing.
Steps
1. Using a Phillips #2 screwdriver, loosen the thumbscrews on the front PERC module.
2. Pull the front PERC module to disengage from the connector on the drive backplane.
3. Tilt and lift the front PERC module out of the system.
NOTE:
The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
108
Installing and removing system components
riser.
After working inside your
Safety
instructions.
Before working inside your
cover.
shroud.
system.
system.
