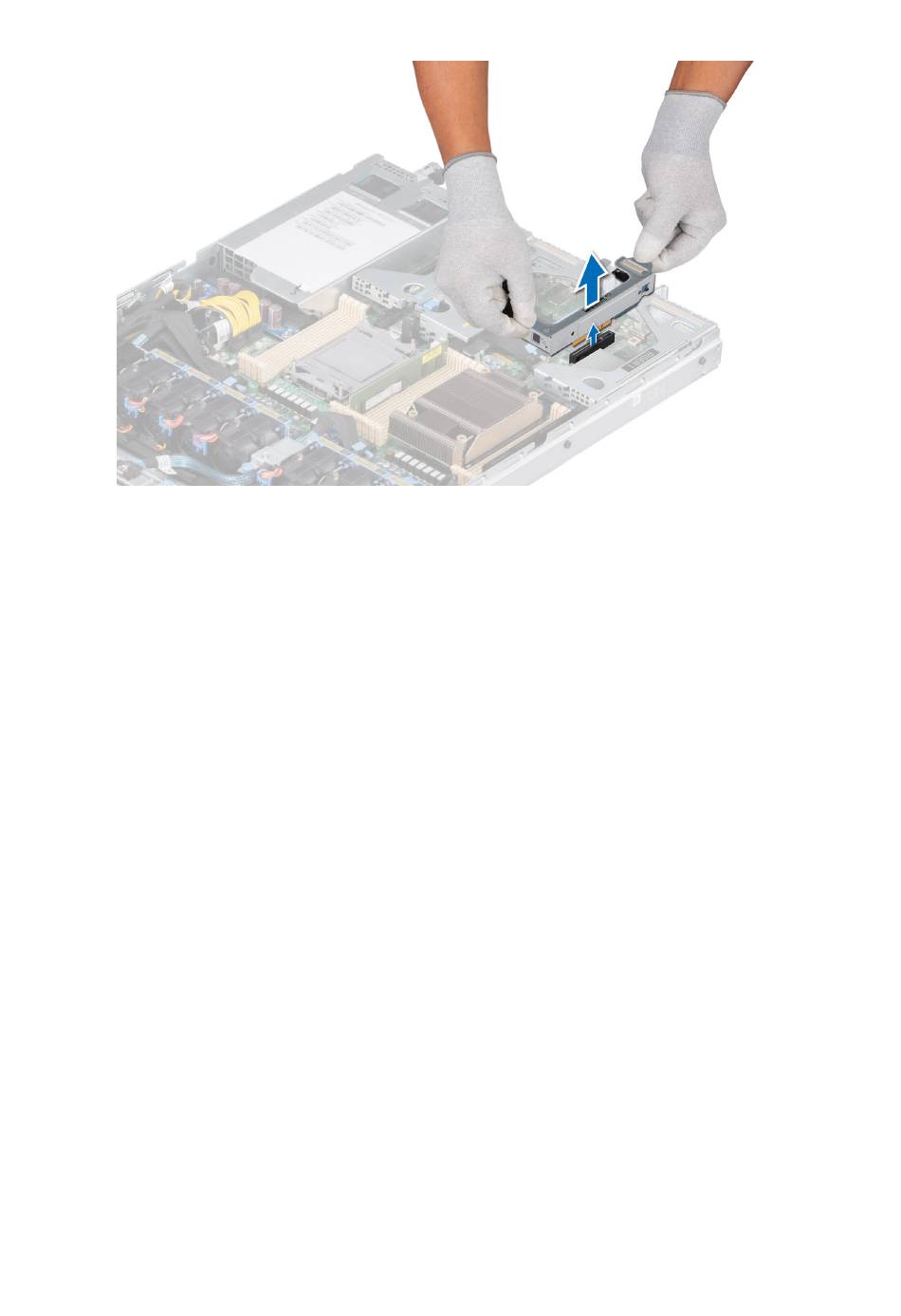

Figure 101. Removing the M.2 BOSS riser
Next steps
Replace the M.2 BOSS
riser.
Installing the M.2 BOSS riser
Prerequisites
1. Follow the safety guidelines listed in the
Safety
instructions.
2. Follow the procedure listed in
Before working inside your
system.
Steps
1. Align the M.2 BOSS riser connector with the connectors on the system board and the guide on the M.2 BOSS riser with the
guiding slot on the system board.
2. Lower the M.2 BOSS riser into place until the M.2 BOSS riser connector is fully seated in the connector.
100
Installing and removing system components
