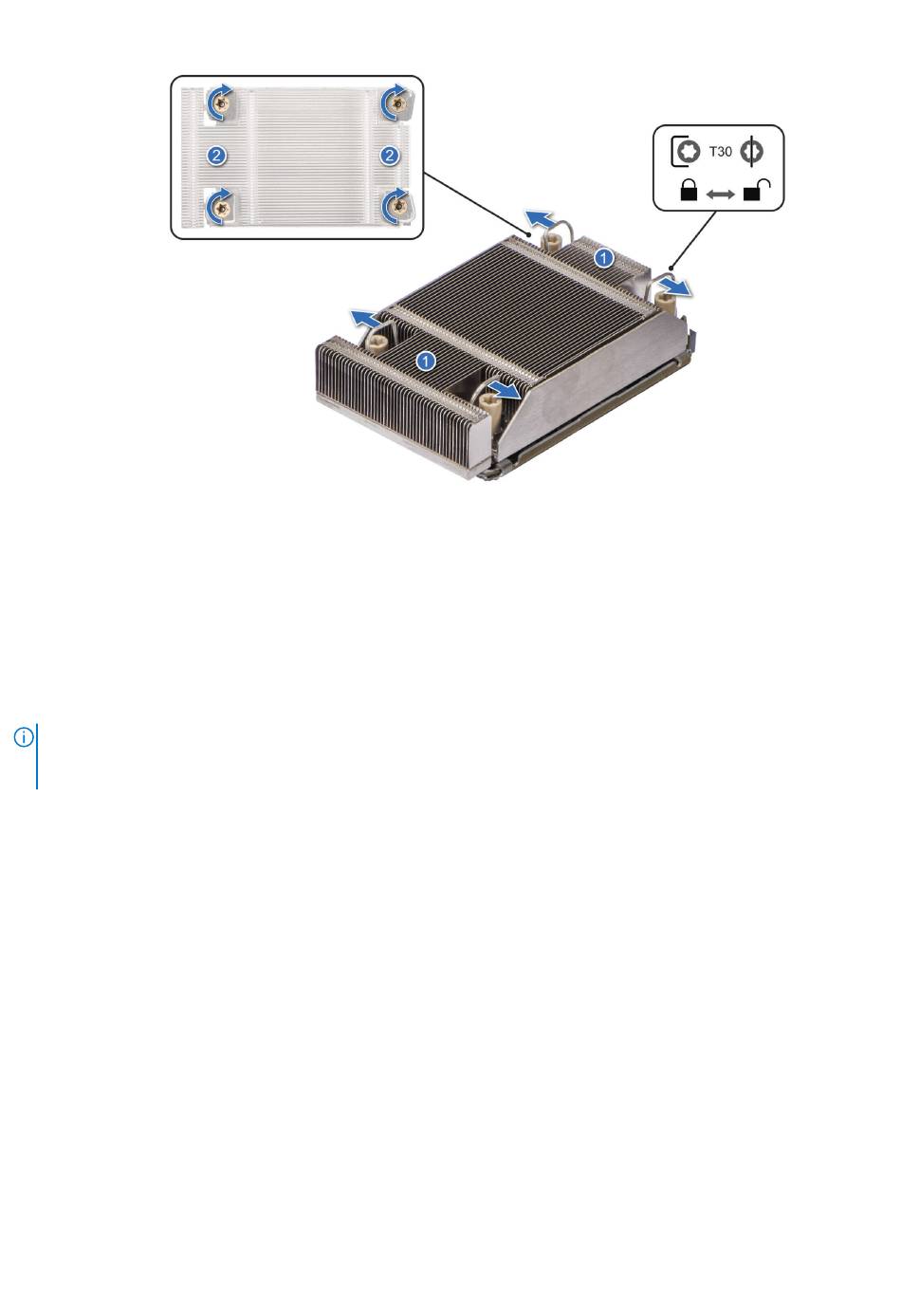

Figure 63. Set the anti-tilt wires to the locked position and tightening the captive nuts
Next steps
1.
Install the air
shroud.
2. Follow the procedure listed in
Expansion cards and expansion card risers
NOTE:
When an expansion card is not supported or missing, riser the iDRAC and Lifecycle Controller logs an event. This
does not prevent your system from booting. However, if a F1/F2 pause occurs with an error message, see Troubleshooting
expansion cards section in the Dell EMC PowerEdge Servers Troubleshooting Guide at www.dell.com/poweredgemanuals.
70
Installing and removing system components
After working inside your
system.
