Installing The Internal Usb Card; Vga Module; Removing The Vga Module - Dell PowerEdge R650XS RD8NP Installation And Service Manual

Installing the internal USB card

Prerequisites
1. Follow the safety guidelines listed in the
2. Follow the procedure listed in the
3. Removing the M.2 BOSS
Steps
1. Connect the USB key to the internal USB card.
2. Align the internal USB card with the connector on the system board and press firmly until the internal USB card is seated.

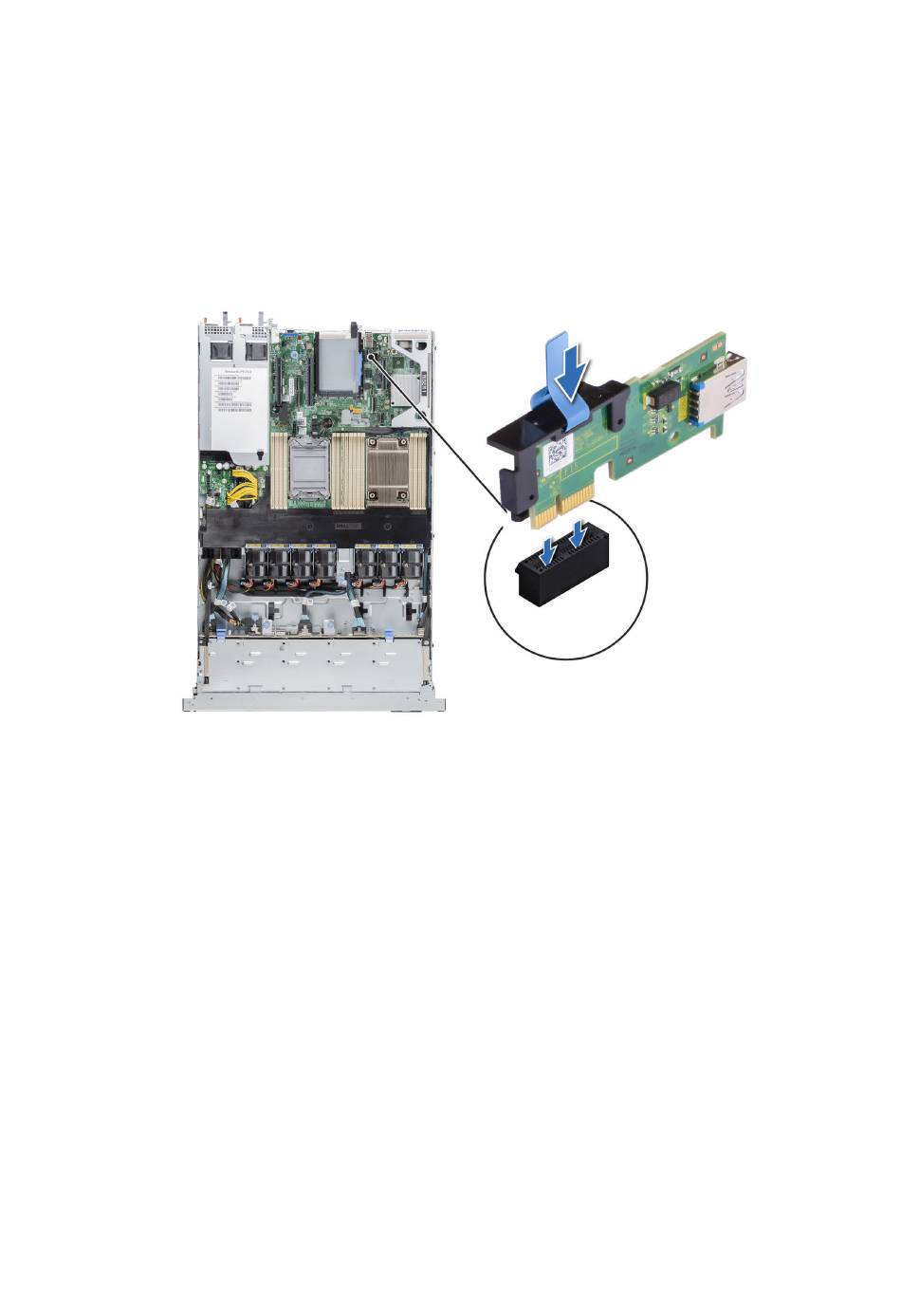

Figure 116. Installing the internal USB card
Next steps
1. Follow the procedure listed in
2. While booting, press F2 to enter System Setup and verify that the system detects the USB memory key.

VGA module

This is a service technician replaceable part only.

Removing the VGA module

Prerequisites
1. Follow the safety guidelines listed in the
2. Follow the procedure listed in
3. Remove the front bezel.
4. Remove the backplane
5. Remove the air shroud.
6. Disconnect the VGA cable from the VGA connector on the system board. For locating the connector, see the
jumpers and connecters
Safety instructions.
Before working inside your
riser.
After working inside your
Safety instructions.
Before working inside your
cover.
section.
system.
system.
system.
