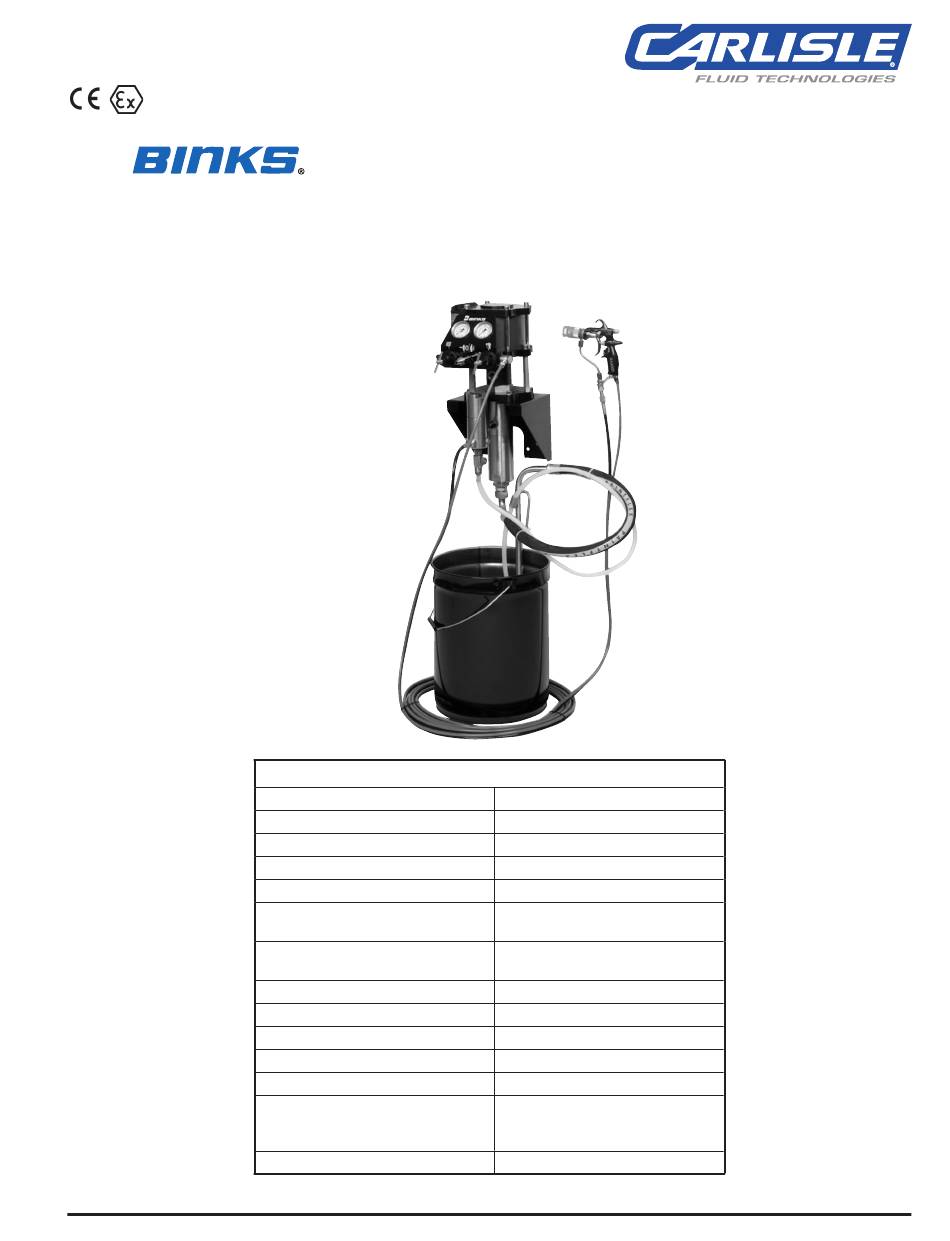

SERVICE MANUAL
EN
77-2919-R8 (5/2019)

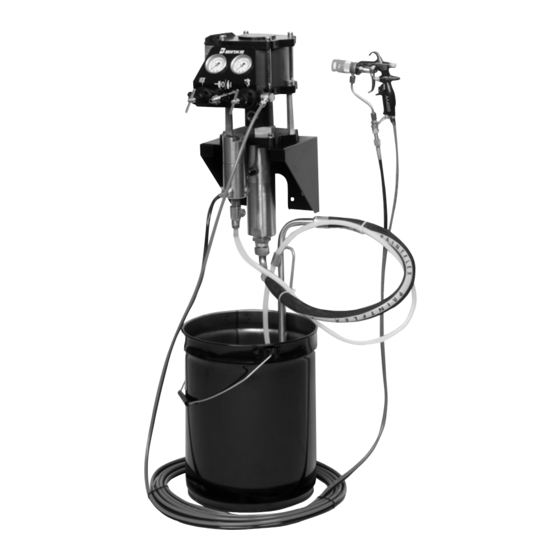

MX1231
31:1 PUMP SYSTEMS FOR
AIR ASSIST & AIRLESS FINISHING
Patent 7,603,355
SPECIFICATIONS
Ratio:
Maximum air inlet pressure:
Maximum fluid pressure:
Displacement per cycle:
Output @ 60 cycles/min:
Air consumption @ 20 cycles/min and
8 bar [116 psi] air inlet pressure:
Maximimum recommended
continuous cycle rate:
Air inlet connection:
Air piston diameter:
Stroke length:
Fluid inlet connection:
Fluid outlet connection:
Wetted parts materials of
construction:
Sound level:
31:1
8 bar [116 psi]
248 bar [3596 psi]
72 cc [02.4 oz]
4.3 L /m [1.2 gal/m]
498 L PM [17.6 SCFM]
20 cycles/min
3/8" BSP(f) and 1/4" NPS(m)
140 mm [5.5 in]
75 mm [3.0 in]
3/4" NPS(m)
3/8" BSP(m) / 3/8" NPS(m)
Stainless Steel, Tungsten Carbide,
Hard Chrome, PTFE, Polyethylene,
Leather
97.3 dB
1 / 12
www.carlisleft.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the BINKS MX1231 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carlisle BINKS MX1231

Summary of Contents for Carlisle BINKS MX1231

  • Page 1 SERVICE MANUAL MX1231 31:1 PUMP SYSTEMS FOR AIR ASSIST & AIRLESS FINISHING Patent 7,603,355 SPECIFICATIONS Ratio: 31:1 Maximum air inlet pressure: 8 bar [116 psi] Maximum fluid pressure: 248 bar [3596 psi] Displacement per cycle: 72 cc [02.4 oz] Output @ 60 cycles/min: 4.3 L /m [1.2 gal/m] Air consumption @ 20 cycles/min and 498 L PM [17.6 SCFM]...
  • Page 2 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING NOTE CAUTION Hazards or unsafe practices which Hazards or unsafe practices which could result in severe personal Important installation, operation or could result in minor personal injury, injury, death or substantial property maintenance information.
  • Page 3 WARNING HIGH PRESSURE CAN CAUSE SERIOUS INJURY IF EQUIPMENT IS INSTALLED OR USED INCORRECTLY— READ, UNDERSTAND, AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL. INSTALL, OPERATE OR SERVICE THIS EQUIPMENT ONLY AFTER ALL INSTRUCTIONS ARE CLEARLY UNDERSTOOD. It is the responsibility of the employer to place this information into the hands of the operator. WARNING CAUTION NOTE...
  • Page 4 HAZARD CAUSE SAFEGUARDS EXPLOSION STATIC ELECTRICITY 1. If installing this equipment in a potentially explosive atmosphere, check the ATEX equipment category and Use of this equipment in temperature ratings meet the requirements for the a potentially explosive zoned area. atmosphere. 2.

  • Page 5: Startup And Operation

    STARTUP AND OPERATION (Part numbers referenced are contained pressure line into operation, relieve the the length of the material lines and in the MX1231 bare pump assemblies pressure regulator by fully unscrewing the solubility of the spray material. part sheet: 77-2918.) the regulating screw.
  • Page 6 STARTUP AND OPERATION SHUT-DOWN CLEANING YOUR BINKS PUMP flows back into the tank through the high pressure filter, the high pressure ball CAUTION CAUTION valve and the return pipe. Do not allow spray material or solvent Once work is completed, the BINKS 6.
  • Page 7 MX1231 CART MOUNTED SYSTEMS MX1231 __ __ – __ __ C __ __ __ __ SEALS SPRAY GUN AIR CONTROL FILTER SIPHON HOSE PL = PTFE / Leather 0 = none 0 = none 0 = none 0 = none 00 = none PP = PTFE G = AA4400 Flat Tip...
  • Page 8 MX1231 WALL MOUNTED SYSTEMS MX1231 __ __ – __ __ W __ __ __ __ SEALS SPRAY GUN AIR CONTROL FILTER SIPHON HOSE PL = PTFE / Leather 0 = none 0 = none 0 = none 0 = none 00 = none PP = PTFE G = AA4400 Flat Tip...
  • Page 9 STAINLESS STEEL HIGH PRESSURE FILTER ASSEMBLIES 0115-010326 (100 MESH FILTER ELEMENT) 0115-010630 (200 MESH FILTER ELEMENT) SPECIFICATIONS Max working pressure: 272 bar [3945 psi] Fluid inlet connection: 3/8" BSP (f) Fluid outlet connection: 1/4" NPS (m) Wetted parts materials of Stainless Steel, PTFE construction: Additional filter mesh sizes (sold separately):...

  • Page 10: System Accessories

    SYSTEM ACCESSORIES 0115-010381 55-GALLON SIPHON KIT 41-17262 5-GALLON SIPHON KIT PARTS LIST When ordering, please specify Part No. ITEM PART DESCRIPTION QTY. 41-2661 1/2 NPSM x 30 MESH S.S. STRAINER.... 1 www.carlisleft.com 10 / 12 77-2919-R8 (5/2019)
  • Page 11 ACCESSORIES FOR YOUR MX1231 PUMP FLUID FILTER (100 MESH) 0115-010326 BRACKET TROLLEY ASSEMBLY 0115-010179 0115-010186 FLUID FILTER (200 MESH) 0115-010630 SIPHON KITS AIR CONTROLS LUBRICATING OIL FOR 41-17262 (5 GAL) 0115-010180 FLUID PUMP 0115-010381 (55 GAL) 0114-009433 (Solvent Based Materials) 0114-014871 (Water Based Materials) 77-2919-R8 (5/2019)

  • Page 12: Warranty Policy

    This product is covered by Carlisle Fluid Technologies’ materials and workmanship limited warranty. The use of any parts or accessories, from a source other than Carlisle Fluid Technologies, will void all warranties. Failure to reasonably follow any maintenance guidance provided may invalidate any warranty.
