- Page 1 Green Motion DC 22 EV charger Green Motion DC 22 User manual...
- Page 2 Corporation’s (“Eaton”) experience and judgment and may not cover all contingencies. If further information is required, an Eaton sales office should be consulted. Sale of the product shown in this literature is subject to the terms and conditions outlined in appropriate Eaton selling policies or other contractual agreement between Eaton and the purchaser.
-
Page 3: Table Of Contents
DISCOVER YOUR GREEN MOTION DC 22 EV CHARGER ....... . . -
Page 4: Introduction

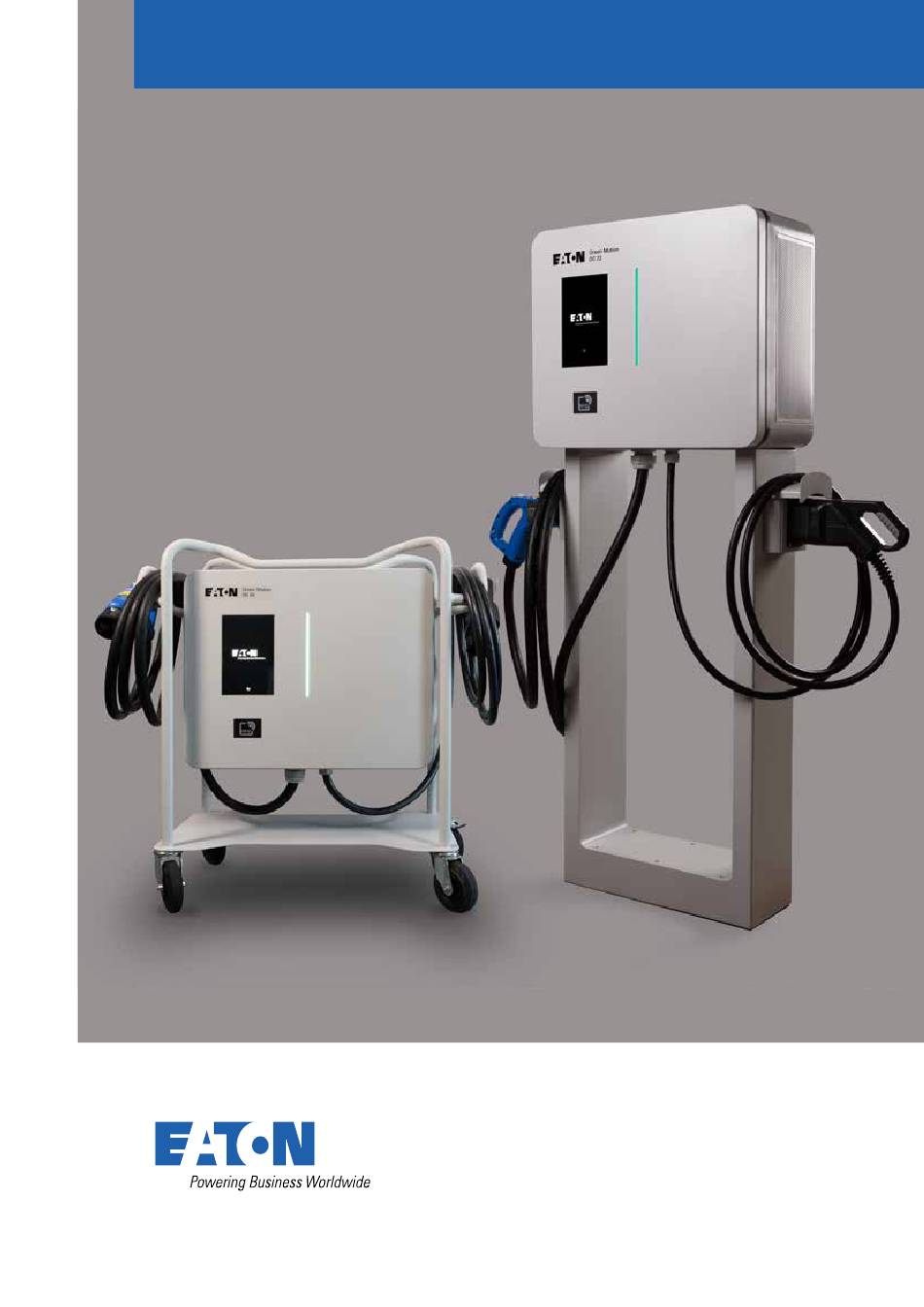

1. Introduction Thank you for purchasing the Green Motion DC 22 EV charger. The Green Motion DC 22 offers fast charging speed with high efficiency in a compact design. The charging unit can be delivered as a fully assembled product on a mobile platform (trolley) or mounted on the wall or floor (with the help of a floor-mount pedestal). -
Page 5: Scope Of The Document
1.1 Scope of the document This manual is intended for end-users of Green Motion DC 22 EV charger. It describes the operating environment, the product and its operating behavior. The document does not cover installation and uninstallation, commissioning guidance and troubleshooting. -
Page 6: Cautions
The unit must be used and stored in locations with relative humidity below 95 %. The unit must be transported in conditions with relative humidity below 95 %. The unit must be used at altitude not exceeding 2000 m above sea level. GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN December 2023 www.eaton.com... -
Page 7: Discover Your Green Motion Dc 22 Ev Charger
3. Discover your Green Motion DC 22 EV charger 3.1 Package contents The Green Motion DC 22 EV charger package should contain the following parts: EV Charger • Quick start guide, • Safety guidelines • EV cable(s), depending on customer configuration: •... -
Page 8: Bottom View
2. CHAdeMO. This cable is optional. The nominal output power of the Green Motion DC 22 EV charger charger is 22 kW. However, the actual output power may vary due to external factors such as the available grid power, the capacity of the electrical installations, climatic conditions, and the EV model. -
Page 9: Green Motion Dc22 Mobile
750 mm (29.5 inch) 984 mm (38.7 inch) 28 mm (1.1 inch) 679 mm (26.7 inch) 125 mm (5 inch) Description Top view Front view Angle view GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN December 2023 www.eaton.com... -
Page 10: Indicators And User Interfaces

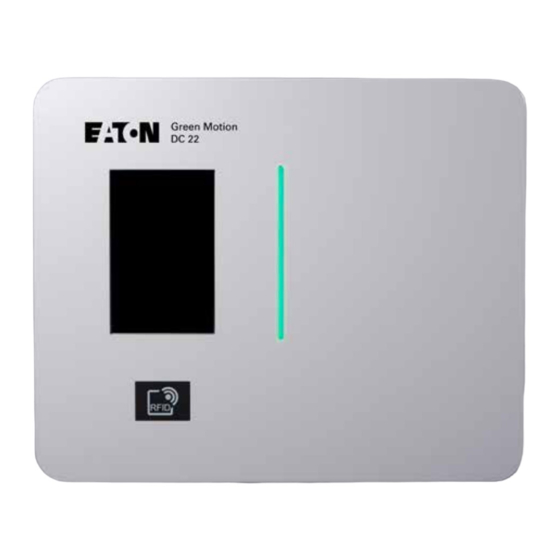

The EV charger is equipped with a LED indicator located on the front door. See Figure 1. Table 2 summarises all possible LED indicator states that may occur during operation, providing a brief explanation for each. Table 2. LED indicator states of the Green Motion DC 22 EV charger Visual state... -
Page 11: Color Touchscreen Display
4.2 Color touchscreen display Green Motion DC 22 EV charger is equipped with a color touchscreen display located on the front door. See Figure 1. Table 3 provides examples of the screens. Due to continuous improvement, it is possible that changes will be implemented in the future to enhance the user experience. - Page 12 After checking that there is no more risk, release the emergency stop button located on the bottom side of the unit. See Figure 2. Open door detected. The door needs to be closed before starting a new charging session GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN December 2023 www.eaton.com...
-
Page 13: Emergency Stop Button
4.3 Emergency stop button The emergency stop button is located on the bottom left side of the Green Motion DC 22 EV charger, as per Figure 6. Push the button in case of emergency. Figure 6. Location of the emergency stop button... -
Page 14: How To Start And Stop Charging
If the RFID card is recognised, the LED indicator starts flashing blue and shows the state of charge level of the battery. Figure 7. Location of the RFID reader RFID GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN December 2023 www.eaton.com... -
Page 15: Software Suite
6. Software suite The Green Motion DC 22 EV charger can be used in combination with the advanced management solution from Eaton called Charging network manager (CNM). Eaton CNM is an all-in-one software solution designed to control and manage a charging network over OCPP 1.6 JSON. Refer to the Eaton Charging network manager user manual, available on www. -
Page 16: Cleaning Or Replacing Filters
Check the filters on a yearly basis to ensure that they are not obstructed, and they work properly. In case of clogging, filters need to be replaced as soon as possible. Eaton does not recommend using the unit until the filters have been replaced. -
Page 17: Troubleshooting
You cannot start the charging session if you are not the user who booked it. An error has occurred: Disconnect and reconnect the electric vehicle to the charging unit to rectify the error. GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN December 2023 www.eaton.com... -
Page 18: Frequently Asked Questions
How long is the warranty period? The warranty period is 3 years. • If the problem persists, contact your local installer or your Eaton technical support representative using the email address BGTechSupport@eaton.com. GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN December 2023 www.eaton.com... -
Page 19: Technical Data
The labels must NOT be hidden with foreign objects (rags, boxes, equipment etc.); they must be periodically cleaned and kept always clearly visible. Figure 8. Location of the rating plate Description Rating plate GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN December 2023 www.eaton.com... -
Page 20: Technical Datasheet
11. Contact support information Should any technical problems arise during the operation of the EV charger, contact your Eaton technical support representative for assistance using the email address BGTechSupport@eaton.com. The following information should be provided when contacting the Eaton technical support representative: Product model and serial number, •...
