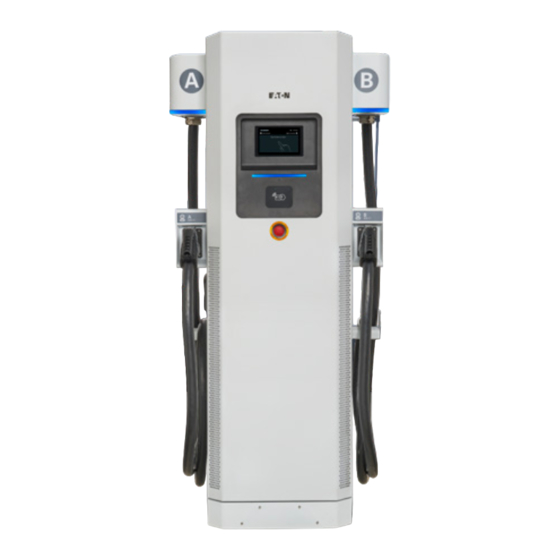

The new Eaton Green Motion
50–150 kW DC Fast Charger
Powering the electric vehicles of today and tomorrow
The new Eaton Green Motion 50–150 kW DC Fast
Chargers combine electric vehicle charging hardware
with Eaton digital power management capabilities
and electrical infrastructure products and services.
With hardware and software solutions for Electric
Vehicle Supply Equipment (EVSE), Green Motion
50-150 kW DC Fast Chargers are part of an EVSE
strategy to power the electric vehicles of today
and tomorrow.
Eaton is committed to improve the quality of life
and the environment through the use of power
management technologies and services. With
advances in electric transportation, Eaton can leverage
existing expertise in adjacent technologies and
services to help power EVSE for personal, business
and industrial use.
Features and benefits
Vehicle compatibility provides charging for current and future
•
light and medium-duty electric vehicles
300 amp, passively cooled charging cables on higher power
•
models ensures more peak power delivered to vehicles with
greater reliability and reduced capital cost
ISO 15118 plug-and-charge allows for easy charging and
•
eliminates the need for apps or credit cards at the time of
charge for payment (future support)
Ethernet or 4G cellular communication provide the ability
•
to perform firmware updates remotely, which eliminates the
need for a planned visit to a remote site to perform an update,
ultimately saving time and money
OCPP v1.6J support provides compatibility and integration
•
with various charging network management and fleet software
management solutions
More power means you can get
on the road quicker
Unlike many competitive solutions that use 200 A power cables, the
Green Motion 50–150 kW DC Fast Chargers provide more power for
400 Vdc battery pack vehicles, such as the Ford Mustang Mach-E and
Ford F-150 Lightning. Each Green Motion DC Fast Charger rated at
100 kW, 125 kW and 150 kW are equipped with 300 A CCS1 cables,
allowing for higher rates of charge for most battery electric vehicles
(BEVs) produced between 2010–2023 that use lower voltage, 400 V
class battery packs. By using passively-cooled cables, the Green
Motion 50–150 kW DC Fast Chargers do not require liquid cooling
components within the charger or the charging cables, which reduces
complexity, cost and maintenance while improving reliability.
