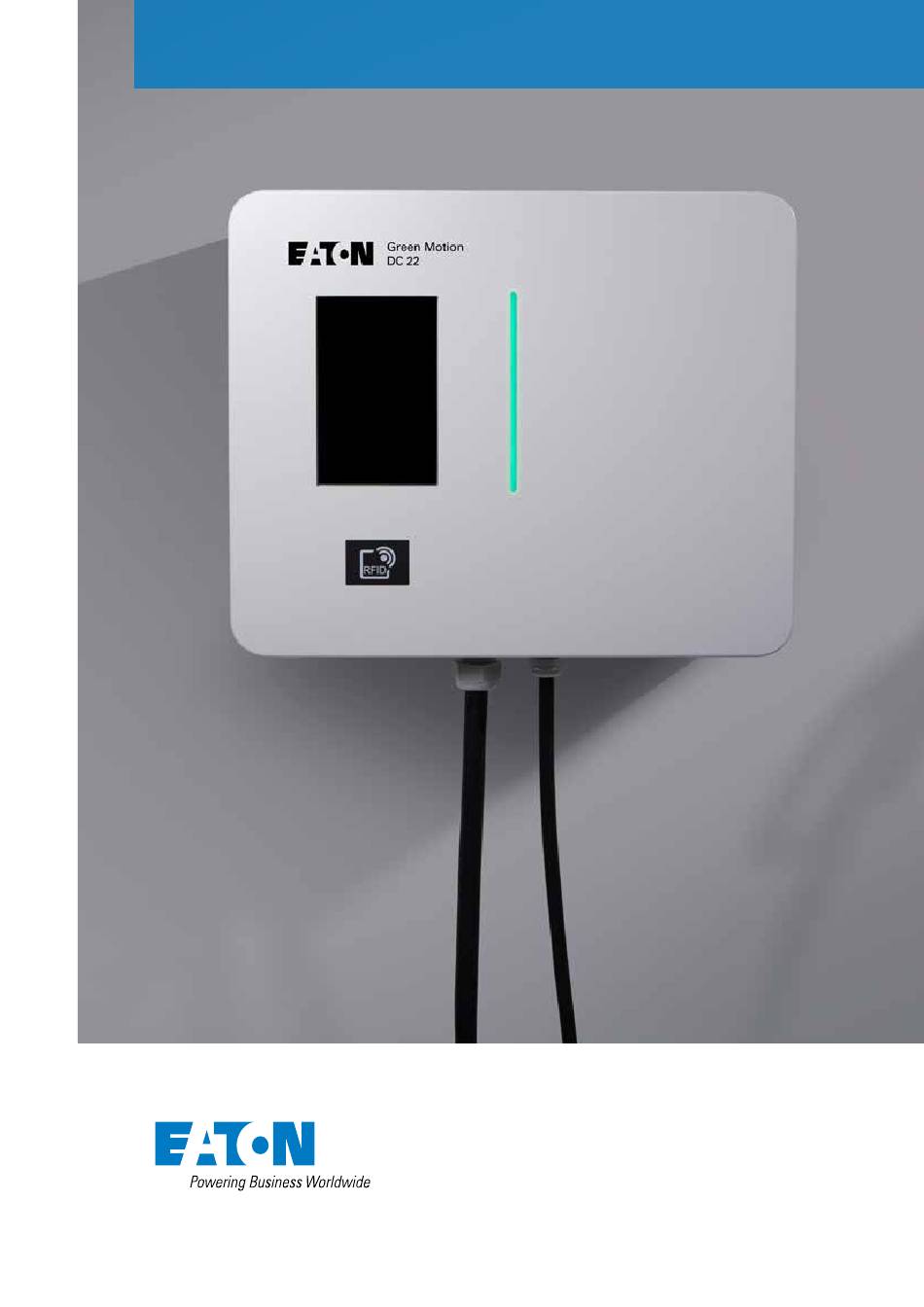

- Page 1 Green Motion DC 22 EV charger Green Motion DC 22 User manual...
- Page 2 Corporation’s (“Eaton”) experience and judgment and may not cover all contingencies. If further information is required, an Eaton sales office should be consulted. Sale of the product shown in this literature is subject to the terms and conditions outlined in appropriate Eaton selling policies or other contractual agreement between Eaton and the purchaser.
-
Page 3: Table Of Contents
7 .3 Cleaning or replacing filters ..........................13 7 .4 Disposal ................................14 FREQUENTLY ASKED QUESTIONS ..................... 14 TECHNICAL DATA ..........................15 9.1 Rating plate ..............................15 9.2 Technical datasheet ............................15 CONTACT SUPPORT INFORMATION ....................16 GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com... -
Page 4: Introduction
Green Motion DC 22 EV charger. All instructions must be read before installing and operating the equipment. This manual should be retained for future reference. Please note that the Green Motion DC 22 EV charger must only be installed by professional and qualified personnel, i.e. -
Page 5: Scope Of The Document
1.1 Scope of the document This manual is intended for end-users of Green Motion DC 22 EV charger. It describes the operating environment, the product and its operating behavior. The document does not cover installation and uninstallation, commissioning guidance and troubleshooting. -
Page 6: Cautions
The unit must be used and stored in locations with relative humidity below 95 %. The unit must be transported in conditions with relative humidity below 95 %. The unit must be used at altitude not exceeding 2000 m above sea level. GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com... -
Page 7: Discover Your Green Motion Dc 22 Ev Charger
3. Discover your Green Motion DC 22 EV charger 3.1 Checking the box contents The Green Motion DC 22 EV charger box must contain the following parts: EV Charger • Quick start guide, • Safety guidelines • EV cable(s), depending on customer configuration: •... -
Page 8: Bottom View
2. CHAdeMO. This cable is optional. The maximum power that Green Motion DC 22 EV charger can deliver is 22 kW. The instantaneous charging power can vary upon other variables such as grid power available, installation and car model. For those reasons, Eaton declines any responsibility on the actual power value delivered. -
Page 9: How To Start And Stop Charging
Step 4. To stop charging, unplug the connector from your vehicle. Usually, the connector must be released from inside your vehicle first. See the instruction manual of your vehicle. GREEN MOTION DC 22 EV CHARGER USER MANUAL MN192003EN October 2022 www.eaton.com... -
Page 10: Indicators And User Interfaces
The EV charger is equipped with a LED indicator located on the front door. See Figure 1. Table 3 summarizes the possible colors of the LED indicator during the operation. Table 2. LED indicators of the Green Motion DC 22 EV charger Visual indicator... -
Page 11: Color Touchscreen Display
5.2 Color touchscreen display Green Motion DC 22 EV charger is equipped with a color touchscreen display located on the front door. See Figure 1. Table 4 provides an example of the screens at startup phase. Due to continuous improvement, it is possible that changes will be implemented in the future to enhance the user experience. -
Page 12: Emergency Stop Button
5.3 Emergency stop button The emergency stop button is located on the bottom left side of the Green Motion DC 22 EV charger, as per Figure 6. Push the button in cases of emergencies. Figure 6. Location of theemergency stop button... -
Page 13: Maintenance
The unit can be set as out of order in two ways: 1. On-site method: Press the emergency stop button. 2. Remote method: Access the Eaton Charging network manager and set the unit as out of order. 7.2 Station updates It is mandatory to install and maintain the units with the latest system updates to enable new features and bug fixes, or the guarantee conditions may be voided. -
Page 14: Cleaning Or Replacing Filters
Check the filters on a yearly basis to ensure that they are not obstructed, and they work properly. In case of obstruction, filters need to be replaced as soon as possible and Eaton recommends not to use the unit and wait for the replacement of the filters. -
Page 15: Technical Data
Figure 7. Location of the rating plate Description Rating plate 9.2 Technical datasheet The latest version of the technical datasheet is available for download from www.eaton.com/GreenMotiondc22. CE certification is also available on www.eaton.com/GreenMotiondc22 or contact your local Eaton service representative. -
Page 16: Contact Support Information
10. Contact support information Should any technical problems arise during the operation of the EV charger, contact your Eaton technical support representative for assistance using the email address BGTechSupport@eaton.com. The following information should be provided when contacting the Eaton technical support representative: Product model and serial number, •...
