Summary of Contents for Eaton Green Motion Home

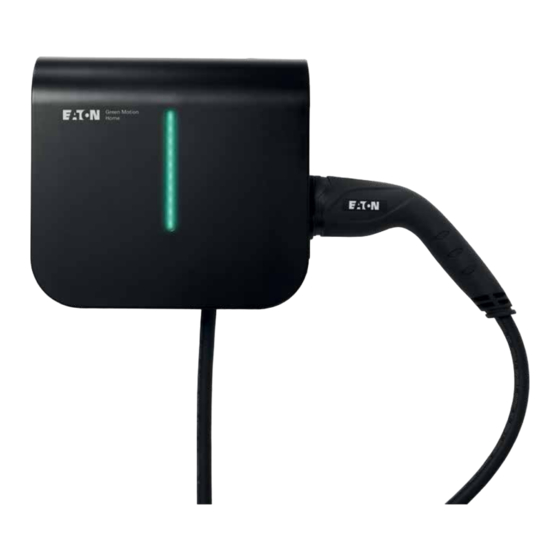

- Page 1 Green Motion Home EV Charger Green Motion Home User manual...
- Page 2 MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
-
Page 3: Table Of Contents
The Eaton Green Motion Charger controller application ..............12 Maintenance ............................13 9.1 Software updates ............................13 9.2 Disposal ................................13 Troubleshooting ............................ 14 Technical data ............................15 11.1 Rating plate ..............................15 11.2 Technical datasheet ............................16 Warranty and technical support ......................17 GREEN MOTION HOME USER MANUAL MN191026EN September 2022 www.eaton.com... -
Page 4: Introduction
Eaton cannot be held legally accountable. The contents of this manual are the copyright of Eaton and may not be copied, reproduced or redistributed in whole or in part without Eaton’s prior written permission. While every care has been taken to ensure the accuracy of the information contained in this manual, Eaton assumes no liability for any error or omission. -
Page 5: Scope Of The Document
1.1 Scope of the document This manual is intended for users of the Eaton Green Motion Home EV charger. It describes the operating environment, the EV charger and its features. The document does not cover installation, removal and commissioning guidance. For installation instructions, refer to the installation manual available on www.eaton.com. -
Page 6: Cautions
The unit should only be used in accordance with the technical specifications. Eaton is committed to minimizing the cybersecurity risk in its products and deploying best practices and solutions, making them more secure, reliable and competitive for customers. For more information related to cybersecurity features refer to product documentation at www.eaton.com... -
Page 7: Discover Your Green Motion Home Ev Charger
4. Discover your Green Motion Home EV charger 4.1 Package contents The Green Motion Home EV charger package contains the following items: Green Motion Home EV charger • Quick start guide • Safety guidelines • Drilling template • Four adhesive gaskets •... - Page 8 Description Green Motion Home EV charger with Type 2 cable GREEN MOTION HOME USER MANUAL MN191026EN September 2022 www.eaton.com...
-
Page 9: Types Of Cables
4.3 Types of cables The Green Motion Home EV charger is provided with one of two possible types of connections: Type 2 connector with cable (Mode 3), 230 V/400 V 16 A/32 A for either single or three phases. •... -
Page 10: Led Indicator
White + Red dot Flashing Check that the Wi-Fi is connected and the password has not been changed Orange Pulse An update is in progress No Light EV charger has no power GREEN MOTION HOME USER MANUAL MN191026EN September 2022 www.eaton.com... -
Page 11: How To Start And Stop Charging
Unplug the connector from the vehicle and/or the EV charger. Usually, the connector must first be released from inside • the vehicle (please refer to the instruction manual of your vehicle for more information). GREEN MOTION HOME USER MANUAL MN191026EN September 2022 www.eaton.com... -
Page 12: Changing The Output Power
The output power reconfiguration should be done only after validation by professional and qualified personnel. DO NOT choose an output power higher than the available power supply. • Refer to the installation manual of the Green Motion Home EV charger to use the internal DIP Switch • to limit the output power. -
Page 13: Maintenance
Eaton encourages all its customers and end users to make responsible decisions when it comes to disposing products. Eaton is not responsible for the transportation of the device to the collection point or recycling center. GREEN MOTION HOME USER MANUAL MN191026EN September 2022 www.eaton.com... -
Page 14: Troubleshooting
Visually inspect the condition of the cable used for charging, its connector and sockets, the vehicle socket as well as the EV charger socket if using a Green Motion Home EV charger with a Type 2 female socket. Stop usage immediately if you see physical damage to any of these parts. -
Page 15: Technical Data
1. Manufacturer 2. Model 3. Serial Number 4. Ratings 5. Warnings. Figure 6. Location of the rating plate on the bottom of the Green Motion Home EV charger Description Rating plate GREEN MOTION HOME USER MANUAL MN191026EN September 2022 www.eaton.com... -
Page 16: Technical Datasheet
Figure 7. Example of the Green Motion Home rating plate 11.2 Technical datasheet The latest version of the technical datasheet for the Green Motion Home EV charger as well as its CE Certification document are available for download on www.eaton.com. -
Page 17: Warranty And Technical Support
12. Warranty and technical support Should any technical problems arise during the warranty period of the Green Motion Home EV charger, contact your local installer or your Eaton technical support representative for assistance using the email address BGTechSupport@eaton.com. The following information should be provided when contacting the Eaton technical support representative:... - Page 18 Eaton Industries Manufacturing GmbH Place de la Gare 2 1345 Le Lieu, Switzerland Eaton.com/greenmotionhome © 2022 Eaton Eaton is a registered trademark. All Rights Reserved Publication No. MN191026EN All trademarks are property September 2022 of their respective owners.
