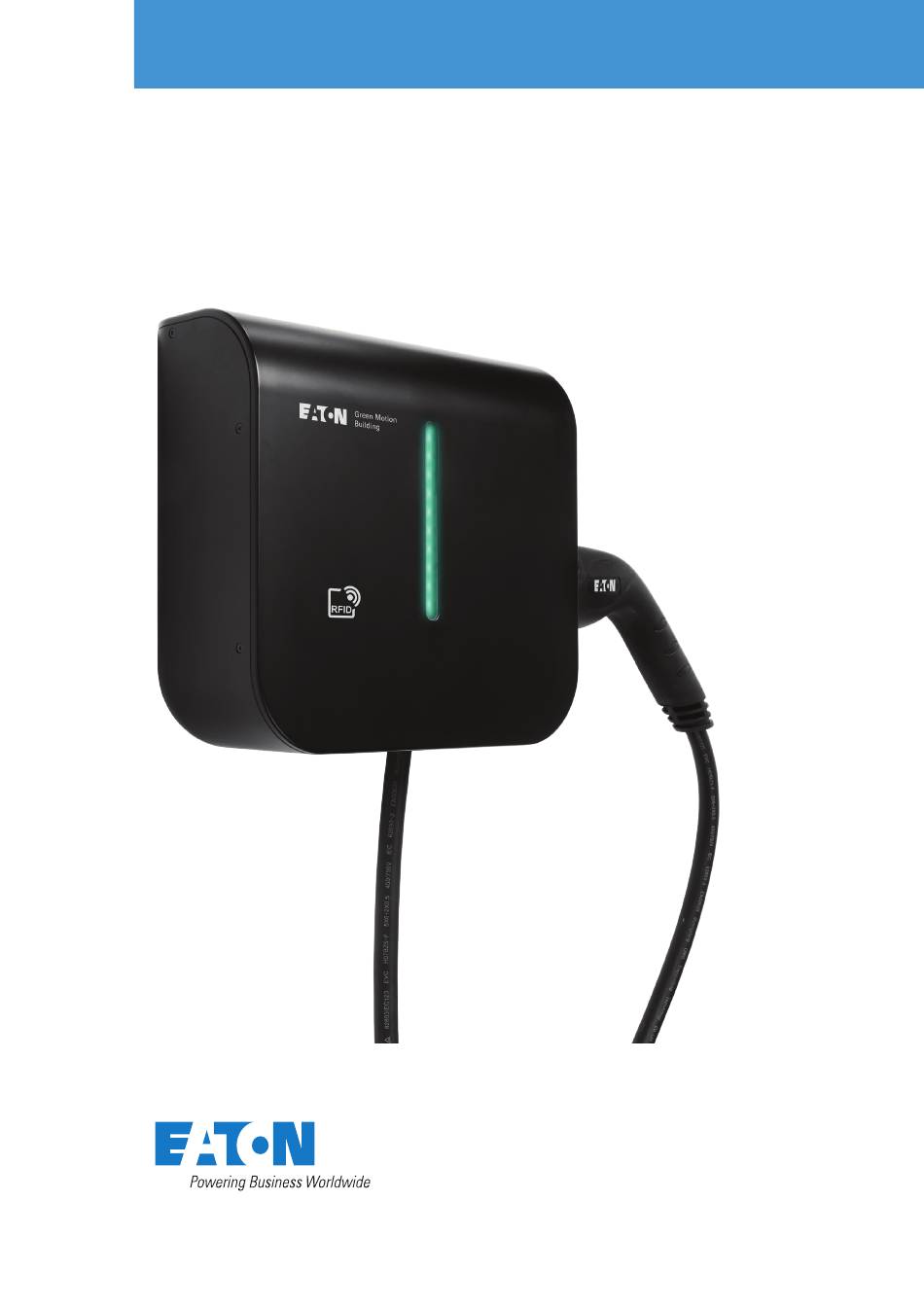

- Page 1 Green Motion Building EV Charger Green Motion Building User manual...
- Page 2 MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
-
Page 3: Table Of Contents
1.1 Scope of the document ............................. 5 1.2 Symbols used in this manual ..........................5 CAUTIONS ..............................6 OPERATING ENVIRONMENT AND RESTRICTIONS ................6 DISCOVER YOUR GREEN MOTION BUILDING EV CHARGER ............7 4.1 Box contents ..............................7 4.2 Overview ................................7 4.3 Types of cables ..............................9 USER INTERFACES ..........................10... -
Page 4: Introduction
Eaton cannot be held legally accountable. The contents of this manual are the copyright of Eaton and may not be copied, reproduced or redistributed in whole or in part without Eaton’s prior written permission. While every care has been taken to ensure the accuracy of the information contained in this manual, Eaton assumes no liability for any error or omission. -
Page 5: Scope Of The Document
1.1 Scope of the document This manual is intended for users of the Green Motion Building EV charger. It describes the operating environment, the EV charger and its features. The document does not cover installation, removal and commissioning guidance. For installation instructions, refer to the installation manual available on www.eaton.com/greenmotionbuilding. -
Page 6: Cautions
The unit must be used and stored in locations with relative humidity below 95 %. The unit must be transported in conditions with relative humidity below 95 %. The unit must be used below a maximum altitude of 2000 m above sea level. GREEN MOTION BUILDING USER MANUAL MN191027EN December 2021 www.eaton.com... -
Page 7: Discover Your Green Motion Building Ev Charger
4. Discover your Green Motion Building EV charger 4.1 Box contents The Green Motion Building EV charger box contains the following items: Green Motion Building EV charger • Quick start guide • Safety guidelines • Drilling template • Four adhesive gaskets •... - Page 8 R F I D Description Green Motion Building EV charger with Type 2 cable GREEN MOTION BUILDING USER MANUAL MN191027EN December 2021 www.eaton.com...
-
Page 9: Types Of Cables
4.3 Types of cables The Green Motion Building EV charger is provided with one of two possible types of connections: Type 2 connector with cable (Mode 3), 230 V/400 V 32 A for either single or three phases. • Type 2 connector with female socket (Mode 3). -
Page 10: User Interfaces
Flashing green light: establishing connection with the vehicle Flashing blue light: the vehicle is charging Solid blue light: the vehicle is fully charged Solid red light: EV charger error No light: EV charger switched off or no power GREEN MOTION BUILDING USER MANUAL MN191027EN December 2021 www.eaton.com... -
Page 11: Energy Meter
5.2 Energy meter The MID compliant Green Motion Building EV charger is equipped with the energy meter Iskra WM3M4. The Eichrecht compliant Green Motion Building EV charger is equipped with the energy meter Iskra WM3M4C. Figure 4. Energy meter display Isk ra ®... -
Page 12: Rfid Card Authentication
6.2 Registering RFID cards RFID cards allow authentication for the Green Motion Building EV charger and provide a means for payment. The RFID cards can be registered through the Eaton Charging network manager. Read the user manual of the Charging network manager on www.eaton.com/chargingnetworkmanager... - Page 13 Figure 5. Removing the plug from the EV charger Description Green Motion Building EV charger Type 2 connector How to stop a charging session: Step 1. Unplug the connector from the vehicle and/or the EV charger. Usually, the connector must first be released from inside the vehicle (please refer to the instruction manual of your vehicle for more information).
-
Page 14: Maintenance
Eaton encourages all its customers and end users to make responsible decisions when it comes to disposing products. Eaton is not responsible for the transportation of the device to the collection point or recycling center. GREEN MOTION BUILDING USER MANUAL... -
Page 15: Troubleshooting
Visually inspect the condition of the cable used for charging, its connector and sockets, the vehicle socket as well as the EV charger socket if using a Green Motion Building EV charger with a Type 2 female socket. Stop usage immediately if you see physical damage to any of these parts. -
Page 16: Technical Data
1. Manufacturer 2. Model 3. Serial Number 4. Ratings 5. Warnings. Figure 6. Location of the rating plate on the bottom side of the Green Motion Building EV charger Description Rating plate GREEN MOTION BUILDING USER MANUAL MN191027EN December 2021 www.eaton.com... -
Page 17: Technical Datasheet
Figure 7. Example of the Green Motion Building rating plate 10.2 Technical datasheet The latest version of the technical datasheet for the Green Motion Building EV charger as well as its CE Certification document are available for download on www.eaton.com/greenmotionbuilding. - Page 18 Eaton Industries Manufacturing GmbH Place de la Gare 2 1345 Le Lieu, Switzerland Eaton.com/greenmotionbuilding © 2021 Eaton Eaton is a registered trademark. All Rights Reserved Publication No. MN191027EN All trademarks are property of their December 2021 respective owners.
