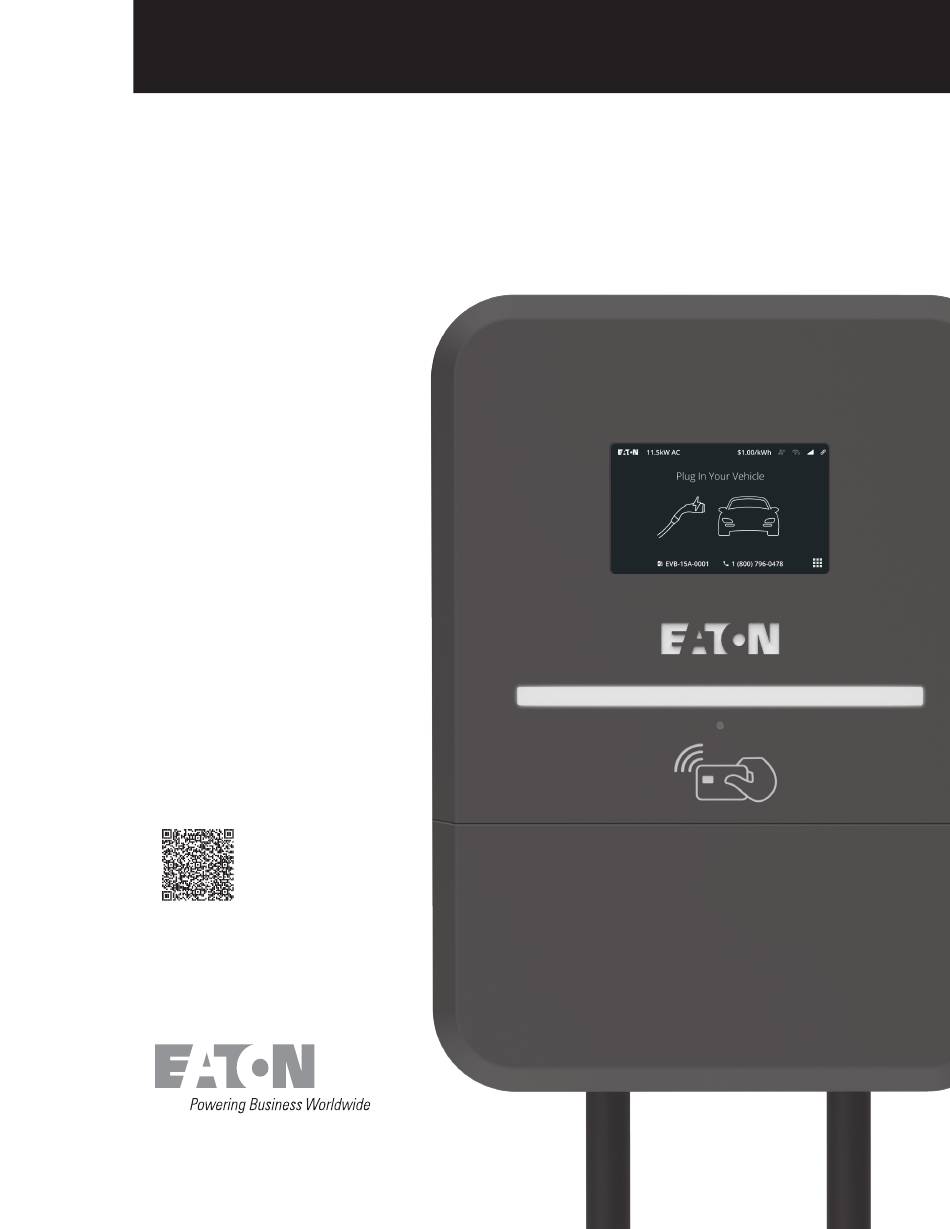

- Page 1 Green Motion chargers Installation guide: Green Motion Building Pro Scan here for Spanish translations Scannez ici pour les traductions en espagnol...
-
Page 2: Table Of Contents
Contents PRODUCT INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 PACKAGE CONTENTS . -
Page 3: Product Introduction

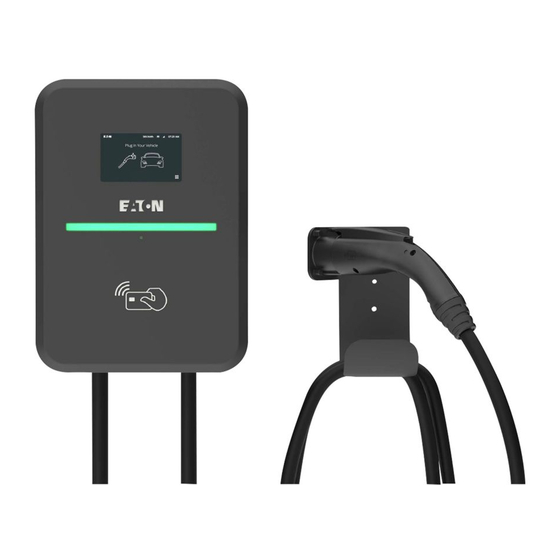

Installation Guide Product introduction Eaton Green Motion Building Pro is a 11.5 kW AC Level 2 charger. Green Motion Building Pro chargers power plug-in hybrid and all-electric vehicles and are compatible with the Society of Automotive Engineers J1772 charging standard. Green Motion Building Pro chargers enable cost effective deployment and operation of EV charging infrastructure in commercial, work-place and multi-family settings. -
Page 4: Routine Operation
No Blink Vehicle connected Blue Short Vehicle connected, EVSE ready Blue Long Charging Blue No Blink EVSE/EV Fault (1) Long Control Pilot Fault No Blink 1. Refer to the troubleshooting section for help on various faults. GREEN MOTION BUILDING PRO www.eaton.com... -
Page 5: Installation
YOU CONTACT YOUR ELECTRIC UTILITY TO DISCONNECT POWER TO AN EXISTING LOADCENTER. THE LINE SIDE OF THE MAIN BREAKER IS ENERGIZED UNLESS POWER IS DISCONNECTED UPSTREAM. EATON WILL NOT ASSUME RESPONSIBILITY FOR PROPERTY DAMAGE OR PERSONAL INJURY RESULTING FROM MISUSE OF THE INFORMATION IN THIS PUBLICATION. -
Page 6: General Reference
. This equipment should be located at least 18 inches 15” min (460 mm) above the floor . 15” min 10” max 48” max GREEN MOTION BUILDING PRO www.eaton.com 15” min... -
Page 7: A - Preparing The Ev Charger(S)
Size Upstream Circuit Breaker Green Motion Building Pro allows users to select the output current through the LCD interface. You can access this selection through the LCD’s Admin menu that is password protected . Log into “Admin Menu → System Settings →... - Page 8 OPTIONAL if you would like to replace Eaton provided SIM card with a different SIM card . Remove the upper front panel of the charger by loosening eight screws . Set aside for later . GREEN MOTION BUILDING PRO www.eaton.com...
- Page 9 SIM card slot is on the bottom side SIM card module of the SIM card module . Carefully remove the Eaton provided SIM card and insert a new SIM . Place the SIM card module back into its slot on the printed circuit board .
-
Page 10: B Mount An Ev Charger To A Wall
This section details the instructions for various installation options . Failure to follow these instructions may result in nonfunctional and/or unprotected equipment . Eaton suggests following the appropriate ADA installation guidelines for commercial applications . CAUTION: Ensure the EV charger’s dedicated upstream breaker handle is in the OFF position. - Page 11 Recommended lug (L1/L2) YAD4CM6E14 Recommended lug (GND) YAD8CM5E10 Torque (lbf-in) Wire Type Copper Screw Type L1/L2: M6; GND: M5 * Local electric code shall take priority over this recommendation. Electrical Systems supported: 240V Residential, 208V Wye GREEN MOTION BUILDING PRO www.eaton.com...
- Page 12 Energize the loadcenter or the panelboard . The EV charger [A] electronics should power immediately, and the LCD will indicate the status of the charger . Lower front panel Screws Installation is complete. Turn to page 19 to commission the EV charger. GREEN MOTION BUILDING PRO www.eaton.com...
-
Page 13: C Mount An Ev Charger To A Pedestal
Only remove second NEMA plug if you intend to For all pedestals, remove the top and bottom panels . connect to ethernet . Bolts, washers, nuts Top panel Bolt, washer, nut Middle panel NEMA plug (Ethernet) NEMA plug Bolt, washer, nut Bottom panel GREEN MOTION BUILDING PRO www.eaton.com... - Page 14 [P] . Reference: • 1/4”-20 Hex head bolt [N] - x6 • Neoprene washer [R] - x6 • 1/4”-20 serrated flange nuts [P] - x6 • Mounting plate [C] • Premium cord holster [D] GREEN MOTION BUILDING PRO www.eaton.com...
- Page 15 Lineside wiring Reference: • 1” threaded plastic pipe nipple [G] • 1” plastic nuts [H] - x2 • 1” o-ring [J] - x2 • 1/2” threaded plastic pipe nipple [K] • 1/2” plastic nuts [L] GREEN MOTION BUILDING PRO www.eaton.com...
- Page 16 Recommended lug (L1/L2) YAD4CM6E14 Recommended lug (GND) YAD8CM5E10 Torque (lbf-in) Wire Type Copper Screw Type L1/L2: M6; GND: M5 * Local electric code shall take priority over this recommendation. Electrical Systems supported: 240V Residential, 208V Wye GREEN MOTION BUILDING PRO www.eaton.com...
- Page 17 LCD will indicate the status of the charger . Lower front panel Screws Installation is complete. Turn to page 19 to Middle panel commission the EV charger. Bottom panel GREEN MOTION BUILDING PRO www.eaton.com...
-
Page 18: D Mount A Second Ev Charger To A Pedestal
. Reference: • Mounting plate [C] • 1/2” o-ring [M] • 1/4”-20 Hex head bolt [N] - x3 • Neoprene washer [R] - x3 • 1/4”-20 serrated flange nuts [P] - x3 GREEN MOTION BUILDING PRO www.eaton.com... - Page 19 . Then, feed the 1/2” threaded plastic pipe nipple [K] through the smaller hole and use one 1/2” plastic nut [L] to hold it in place from the pedestal interior . Top Panel Assembly Bolt Washer GREEN MOTION BUILDING PRO www.eaton.com...
- Page 20 • Premium cord holster [D] Installation is complete. • 1/4”-20 Hex-head bolt [N] - x2 Turn to page 19 to commission • Neoprene washer [R] - x2 the EV charger. • 1/4”-20 serrated flange nuts [P] - x2 GREEN MOTION BUILDING PRO www.eaton.com...
-
Page 21: Fcc
. Do not attempt to repair or service any other part of the unit yourself . If the unit requires servicing, please contact Eaton customer service . The installation, maintenance, and servicing of your EV charger must only be performed by qualified personnel in accordance with applicable local regulations . -
Page 22: Warranty Information
For all other Terms and Conditions of Sale, please refer to Eaton’s in conformance with Seller’s recommendations, including as set forth in these Selling Policy 25-000. -
Page 23: Troubleshooting
SAE J1772 connector like the one on Eaton EV charger. Please check instructions that came with your car on where to find this adapter or contact your manufacturer. SAE J1772 is a universal charging connector widely adopted by most EV vehicle manufacturers. - Page 24 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton .com © 2023 Eaton All Rights Reserved Eaton is a registered trademark. Printed in USA Publication No . IL191021EN All trademarks are property Rev . 01 of their respective owners.
