CC1312PSIP SimpleLink™ Sub-1-GHz Wireless System-in-Package

1 Features

Wireless microcontroller
Powerful 48 MHz Arm
352KB flash program memory
256KB of ROM for protocols and library functions
8KB of cache SRAM
80KB of ultra-low leakage SRAM with parity for
high-reliability operation
Programmable radio includes support for 2-
(G)FSK, 4-(G)FSK, MSK, OOK, IEEE 802.15.4
PHY and MAC
Supports over-the-air upgrade (OTA)
Ultra-low power sensor controller
Autonomous MCU with 4KB of SRAM
Sample, store, and process sensor data
Fast wake-up for low-power operation
Software defined peripherals; capacitive touch,
flow meter, LCD
Low power consumption
MCU consumption:
– 2.9 mA active mode, CoreMark
– 60 μA/MHz running CoreMark®
– 0.9 μA standby mode, RTC, 80KB SRAM
– 0.1 μA shutdown mode, wake-up on pin
Ultra low-power sensor controller consumption:
– 30 μA in 2 MHz mode
– 808 μA in 24 MHz mode
Radio Consumption:
– 5.8 mA RX at 868 MHz
– 28.7 mA TX at +14 dBm at 868 MHz
– 62 mA TX at +19 dBm at 915 MHz
– 86 mA TX at +20 dBm at 915 MHz
Wireless protocol support
Wi-SUN®
mioty®
Wireless M-Bus
SimpleLink™ TI 15.4-stack
6LoWPAN,
Proprietary systems
High-performance radio
–119 dBm for 2.5 kbps long-range mode
–108 dBm at 50 kbps, 802.15.4, 868 MHz
Output power up to +20 dBm with temperature and
voltage compensation
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
®
Cortex
®
-M4F processor
®
Regulatory compliance
Certified module for:
– FCC CFR47 Part 15
– ISED Certified (Canada)
Suitable for systems targeting compliance with:
– ETSI EN 300 220 Receiver Cat. 1.5 and 2, EN
303 131, EN 303 204
– ARIB STD-T108
MCU peripherals
Digital peripherals can be routed to 30 GPIOs
Four 32-bit or eight 16-bit general-purpose timers
12-bit ADC, 200 kSamples/s, 8 channels
8-bit DAC, two comparators
Programmable current source
Two UART, two SSI, I
Real-time clock (RTC)
Integrated temperature and battery monitor
Security enablers
AES 128- and 256-bit cryptographic accelerator
ECC and RSA public key hardware accelerator
SHA2 Accelerator (full suite up to SHA-512)
True random number generator (TRNG)
Development tools and software

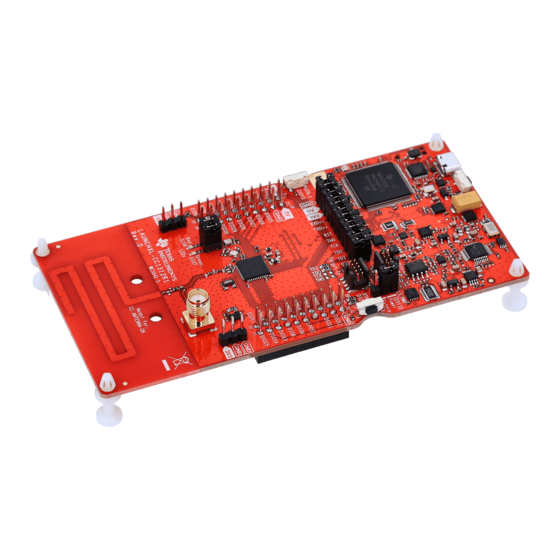

LP-CC1312PSIP Development Kit
SimpleLink Low Power F2 SDK
SmartRF™ Studio
for simple radio configuration
Sensor Controller Studio
sensing applications
SysConfig
system configuration tool
Operating range
1.8 V to 3.8 V single supply voltage
–40 to +105°C (+14 dBm PA)
–40 to +95°C (+20 dBm PA)
All necessary components integrated
48-MHz crystal: RF accuracy ±10 ppm initial and
over temperature
32-kHz crystal: RTC accuracy ±50 ppm initial and
over temperature
DC/DC converter components and decoupling
Single-RF pin for RX/TX with 50 Ohm impedance.
Package
7-mm × 7-mm MOT (30 GPIOs)
Pin-to-pin compatible with
CC2652PSIP
RoHS-compliant package
CC1312PSIP
SWRS293 – NOVEMBER 2023
2
2
C, I
S
for building low-power
CC2652RSIP
and
