www.ti.com
EVM User's Guide: AM2754, AM2754-Q1, AM2752, AM2752-Q1

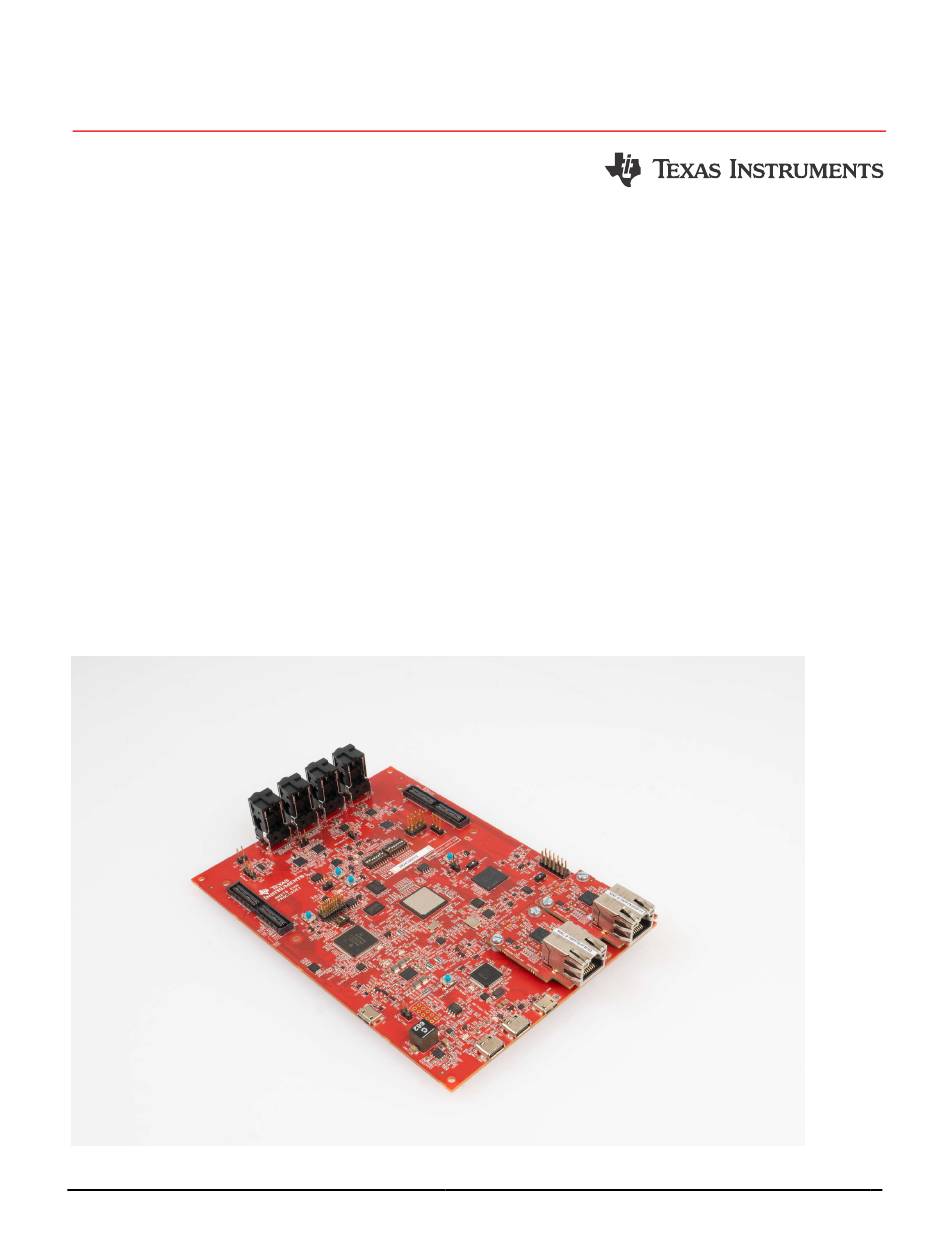

AM275x Evaluation Module User's Guide

Description

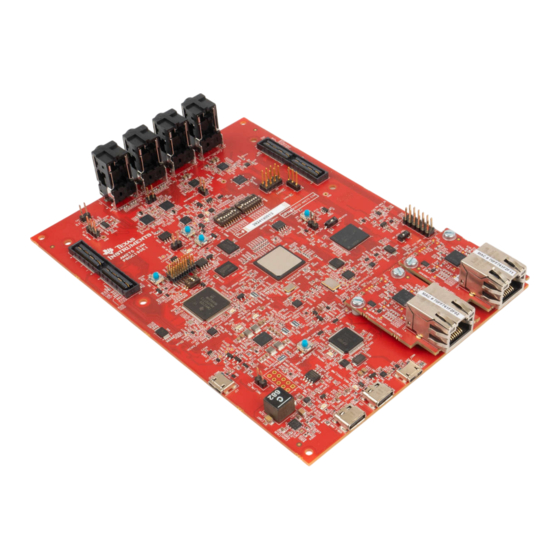

The AM275x evaluation module (EVM) is a
standalone test, development and evaluation platform
that lets developers evaluate AM275x functionality
and develop prototypes for a variety of applications.
The AM275x EVM is equipped with an AM275x
microcontroller along with additional components to
allow the user to make use of the various device
interfaces including the Ethernet
others to easily create prototypes. Onboard current
measurement capabilities are available to monitor
power consumption for power-conscious applications.
The supplied USB cable paired with embedded
emulation logic allows for emulation and debugging
using standard development tools such as Code
Composer Studio
(CCSTUDIO).

Features

Powered through two 5V, 3A USB Type-C
Multirail power supply designed for safety-relevant
Applications
SPRUJE8 – DECEMBER 2024
Submit Document Feedback
, dual CAN-FD and
®
input
Copyright © 2024 Texas Instruments Incorporated
Multi-channel stereo ADC and DAC input/output
lines.
Two Audio expansion connectors
Two Ethernet add-on board connector for an
automotive or industrial Ethernet PHY
On-board XDS110 debug probe
Four push buttons:
– PORz
– RESETz
– User Interrupt
– IO Retention Wake
Two LEDs for user testing
CAN connectivity with on-board CAN transceiver
MMC interface to micro SD card connector
On-board memory
– 512 Mb OSPI NOR flash
– 1 Kb I2C EEPROM
– 512 Mb HYBERBUS HYPERRAM
– 256Gb eMMC
Flash
AM275x Evaluation Module User's Guide
Description
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM275 Series and is the answer not in the manual?

Questions and answers

GURAKA PUNEETH
July 15, 2025

We are looking for the current values for designing power tree and couldn't found

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments AM275 Series

  • Page 1: Description

    – 256Gb eMMC Flash • Powered through two 5V, 3A USB Type-C ® input • Multirail power supply designed for safety-relevant Applications SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Table Of Contents

    4.1 If You need Assistance..............................36 4.2 Trademarks..................................5 References.................................... 5.1 Reference Documents..............................5.2 Other TI Components Used This Design......................... 6 Revision History................................... AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3: Evaluation Module Overview

    TI recommends using an external power supply or accessory which complies with applicable regional safety standards such as (by example) UL, CSA, VDE, CCC, PSE. SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4: Kit Contents

    C7, R5 JTAG ports are both closed • Security subsystems and SoC firewalls are both closed • TIFS-MCU and SBL need to be signed with active customer key AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5: Audio Expansion Connectors

    Up to 47 GPIOs • 10x Reserved pins for futureproofing For more information on Audio expansion connectors refer to the AEC Mapping chapter. SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6: Hardware

    USB-C DRP Top Component ID FT4232 3V3 only (J24) (J25) LDO (U66) 5V Buck (U134) FT4232 USB (J22) Figure 2-1. Top Component Identification AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 Current Monitors (U120) OSPI Flash Reset (U27) FT4232 Voltage Bottom Component Isolation Buffers USB-C PD Controller (U129) Figure 2-2. Bottom Component ID SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8: Power Requirements

    – DC barrel jack to Type- • 5V, 1.5A power adapter with USB-C captive cable or receptacle • PC USB Type-C port not capable of 3A AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9: Power Status Leds

    Indicator LED for Type_C USB connector 2 LD14 VMAIN_EN Power Delivery Error Indicator, Type-C connection not supplying minimum 15W (5V at 3A) SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 On if FT4232 USB connected VBUS_TYPEC2 (LD9) On if typeC2 USB connected LEDs VBUS_TYPEC1 (LD13) On if typeC1 USB connected Figure 2-4. Power Status LEDs AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 GPIO5 0.4A LDO3 If VDD = 0.75V ->VDDR CORE 0.85V VPP_1V8 MCU_SAFETY_ERRORz_1V8 GPIO6(nERR_MCU) VCC_5V0 VDDSHV_CANUART VDDSHV_CANUART VDD_CANUART VMON VDD_CANUART 22pF TPS6522435RAHRQ1 VDDR_CANUART SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12: Power Sequence

    LDO3 is intentionally not included in this diagram because this configuration is for a 0.85V VDD Core which is shared with VDDR Core. LDO3 is OFF by default unless BUCK1/2 are configured for 0.75V. AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 Digital Low: 3.3V LDO2 output GPIO6 Watchdog timeout Enable/Disable Populated External pull-up to 1.8V: Watchdog Timer disabled Non-populated External pull-up to 1.8V: Watchdog timeout enabled SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14: Reset

    MCU_PORz is the Power-On-Reset for the AM275 SoC. • MCU_RESETz is the Warm Reset to AM275 SoC. • RESETSTATz_1V8 is the reset for the Main Domain. AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 PMOS drain which is tied directly to ground. The MCU_RESETz signal is tied to: • AM275x SoC MCU_RESETz input • Audio Expansion Connectors (1&2) SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 8. Audio Expansion Connector(1&2) 9. BOOTMODE buffer output enable The AM275x EVM also has an external interrupt to the SoC, GPIO1_23_INTn, that occurs when: AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17: Clock

    When the crystal is used as a clock source then the AM275x CLKOUT0 (P1) signal is used to source the three output clock buffer for the Ethernet expansion connector reference clock signals. SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 Level Translator (SN74AVC2T244DQMR), from 3.3V to 1.8V before being applied to the Multiplexer inputs. AUDIO_EXT_REFCLK2_S0 and AUDIO_EXT_REFCLK2_S1 serve as Multiplexer input selection bits for selecting AUDIO_EXT_REFCLK2 clock input. AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 AUDIO_EXT_REFCLK1, from the AM275x SoC. AEC1_REFCLK_SEL and AEC2_REFCLK_SEL serve as Multiplexer input selection bits to AUDIO_EXT_REFCLK0 and AUDIO_EXT_REFCLK1 respectively. SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20: Boot Mode Selection

    26 MHz RSVD RSVD RSVD Table 2-7. Primary Boot Mode Selection[6:3] SW2.7 SW2.6 SW2.5 SW2.4 Primary Boot Mode Selected Serial NAND OSPI AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 0: Hung bus reset attempt RSVD Addr 0: 0x50 I2C0 after 1ms 1: No hung Bus reset 1: 0x51 attempted RSVD RSVD RSVD UART0 SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22 Clksrc bit = 1 (If RMII) Mode bit = 0 RSVD Csel bit = 0 Mode = 0 RSVD Addr = 0 Bus Rest = 0 AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 23: Header Information

    ADC0_AIN2 ADC0_AIN7 ADC0_AIN3 ADC Ext. Trig. USB-C Power USB-C DRP ADC0_AIN4 only (J24) (J25) ADC0_AIN5 DGND FT4232 USB (J22) Figure 2-15. Headers SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 24: Push Buttons

    Table 2-14. CPSW RGMII Ethernet Expansion Connector 1 Pinout Pin Number Net Name/Signal I/O Direction Pin Number Net Name/Signal I/O Direction DGND POWER EXT_VMON2_1 POWER CPSW_RGMII1_TXC INPUT VDD_2V5 POWER AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 25 CPSW_RGMII2_COL OUTPUT DGND POWER DGND POWER DGND POWER DGND POWER CPSW_RGMII2_RXC OUTPUT CPSW_RGMII2_MDC INPUT DGND POWER CPSW_RGMII2_MDIO BIDIRECTION CPSW_RGMII2_RD0 OUTPUT DGND POWER SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 26: Audio Interfaces

    – External Audio reference clock generated from clock generator(CDCE6214) to AUDIO_EXT_REFCLK2 – External Audio reference clock generated from Audio expansion connectors AEC1 and AEC2 via AUDIO_EXT_REFCLK0 and AUDIO_EXT_REFCLK1 respectively AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 27 Four input 3.5mm TRS Audio Jack connectors for Eight Stereo Channel Microphone/Line AC-coupled inputs.. Each Pair of the TRS Audio Jack Connectors are connected to a four-channel Audio ADC(PCM6240) device (Two ADCs in total). SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 28 McASP3 is used as the primary McASP interface for Audio Expansion Connector 2 (AEC2). McASP3 has Four Audio Transmit/Receive channels (McASP3_AXR[0:3]). Figure 2-19. McASP0, McASP2, McASP3, McASP4 Note For additional Information on McASP features and configuration, go to AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 29: Aec Mapping

    The Table below lists all the AM275 EVM signals routed to AEC1: Table 2-16. AEC1 Pinout Pin Number NET NAME Pin Number NET NAME MCU_PORz VCC_5V0 EPWM0_A VCC_5V0 SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 30 AEC1_REFCLKOUT DGND DGND MCAN4_TX MCAN4_RX_R RESETSTATZ_1V8 DGND DGND UART2_TXD UART2_RXD DGND DGND MCASP4_AXR0 MCASP4_AXR3 MCASP4_AXR4 MCASP4_AXR5 DGND DGND MCASP4_ACLKX MCASP4_ACLKR MCASP4_AFSX MCASP4_AFSR AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 31 MCASP2_AXR1 MCASP2_AXR3 DGND MCASP2_AXR4 AEC2_REFCLKIN MCASP2_AXR5 DGND DGND MCASP2_ACLKX MCASP2_AFSX MCASP2_AFSR AEC2_GPIO0_0 MCASP2_ACLKR AEC2_GPIO0_1 DGND DGND AEC2_REFCLKOUT DGND DGND MCAN1_TX MCAN1_RX_R RESETSTATZ_1V8 SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 32: Test Points

    TP21 3.3V XDS_USB_VBUS TP78 VINT_LDO TP74 1.8V VCC_3V3_SYS J29.3 3.3V VCC1V8_SYS J29.1 1.8V VDDSHV_CANUART TP80 1.8V VDD_CANUART TP52 0.85V PMIC_LPM_EN0 TP75 1.8V AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 33 TP49 1.8V OSBCLK0 TP587 1.8V DGND J34.2, J9.2, TP1, J7.2, TP40, TP44, TP42, TP41, TP85, J32.2, TP106, J2.2, J21.2, J21.10, J31.12, TP2 SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 34 VDD_2V5 (TP92) SOC_DVDD1V8 (TP86) VCC_5V0 (TP103) Critical Signals VMAIN (TP104) Ground Power FT4232_USB_VBUS (TP96) VBUS_TYPEC1 (TP107) LEGEND VBUS_TYPEC2 (TP108) Figure 2-21. Test Points AM275x Evaluation Module User's Guide SPRUJE8 – DECEMBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 35: Hardware Design Files

    Hardware Design Files 3 Hardware Design Files To download the zip file containing the latest design files for the EVM, click the following link SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 36: Additional Information

    USB-C ® are registered trademarks of USB Implementers Forum. ® is a registered trademark of Texas Instruments. ® is a registered trademark of Arm Limited. All trademarks are the property of their respective owners. AM275x Evaluation Module User's Guide SPRUJE8 –...
  • Page 37: References

    • TCAN1043A-Q1 CAN Transceiver • TCA6424A I/O Expander • SN74AVC8T245 Boot Buffer 6 Revision History DATE REVISION NOTES December 2024 Initial release. SPRUJE8 – DECEMBER 2024 AM275x Evaluation Module User's Guide Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 38 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
