User's Guide
TMDSCNCD2800137 controlCARD Information Guide
The F2800137 controlCARD (TMDSCNCD2800137) from Texas Instruments (TI) provides a great way to learn
and experiment with the F280013x devices. The F280013x device is a member of TI's C2000
microcontrollers (MCUs). This 120-pin controlCARD is intended to provide a well-filtered robust design that
is capable of working in most environments. This document provides the hardware details of the F2800137
controlCARD and explains the functions, locations of jumpers, and connectors present on the board.
1
Introduction.............................................................................................................................................................................2
2 Hardware Quick Setup Guide................................................................................................................................................
Standalone...............................................................................................................................................3
2.2 Configuration 2: External 5 V Supply.................................................................................................................................
3 Errata.......................................................................................................................................................................................
3.1 Warnings, Notes, and Errata..............................................................................................................................................
4 Getting Familiar with the controlCARD................................................................................................................................
4.2 Assumed Operating Conditions.........................................................................................................................................
Requirements..............................................................................................................................................5
4.4 Using the controlCARD......................................................................................................................................................
4.5 Experimentation Software..................................................................................................................................................
5 Special Notes..........................................................................................................................................................................
5.1 XDS110 Emulator and SCI (UART) Connectivity...............................................................................................................
Methodology........................................................................................................................................................7
5.3 Evaluation of the Analog-to-Digital Converters (ADCs).....................................................................................................
6 Hardware References.............................................................................................................................................................
7 Revision History...................................................................................................................................................................

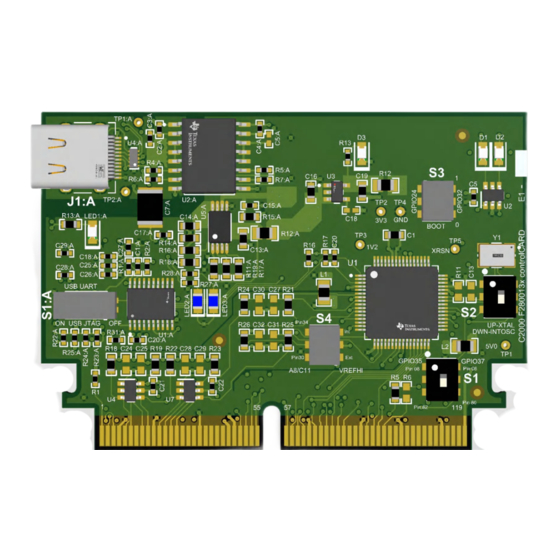

Figure 1-1. F2800137 controlCARD............................................................................................................................................
Figure 5-1. Female SMA Connector............................................................................................................................................
Figure 6-1. Key Components on the controlCARD - Front..........................................................................................................
Table 3-1. MCU102A...................................................................................................................................................................
Table 3-2. MCU102E1.................................................................................................................................................................
Table 4-1. Emulator Switch Selections........................................................................................................................................
Table 6-1. Hardware Connections.............................................................................................................................................
Trademarks
™
C2000
and Code Composer Studio
All trademarks are the property of their respective owners.
SPRUJ15B - NOVEMBER 2021 - REVISED OCTOBER 2022
Submit Document Feedback
ABSTRACT
Table of Contents
Revisions..............................................................................................................4
Features......................................................................................................................................5
List of Figures
Back.........................................................................................................10
List of Tables
Table..................................................................................................................................12
™
are trademarks of Texas Instruments.
Copyright © 2022 Texas Instruments Incorporated
™
TMDSCNCD2800137 controlCARD Information Guide
Table of Contents
family of
3
3
4
4
5
5
5
7
7
7
7
9
12
2
8
9
4
4
6
10
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments controlCARD TMDSCNCD2800137
Summary of Contents for Texas Instruments controlCARD TMDSCNCD2800137
-
Page 1: Table Of Contents
Table of Contents User’s Guide TMDSCNCD2800137 controlCARD Information Guide ABSTRACT The F2800137 controlCARD (TMDSCNCD2800137) from Texas Instruments (TI) provides a great way to learn ™ and experiment with the F280013x devices. The F280013x device is a member of TI’s C2000 family of microcontrollers (MCUs). -
Page 2: Introduction
Full compliance to safety, EMI/EMC, and other regulations are left to the designer of the customer’s system. TMDSCNCD2800137 controlCARD Information Guide SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 3: Hardware Quick Setup Guide
Note The TMDSCNCD2800137 controlCARD automatically switches to the external 5 V supply when present. No additional configuration is required. SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 TMDSCNCD2800137 controlCARD Information Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 4: Errata
EVM for software development This EVM is for software development only and is meant to be used only with the TMDSHSECDOCK. only TMDSCNCD2800137 controlCARD Information Guide SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 5: Getting Familiar With The Controlcard
Furthermore, the capacitor C7:A can be removed to minimize the possibility of leakage current flowing across the isolation barrier of the controlCARD. SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 TMDSCNCD2800137 controlCARD Information Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 6: Table 4-1. Emulator Switch Selections
DIM100 docking station. This assumes that the TMDSADAP180TO100 adapter card is used. More information on the controlCARD docking station can be found at the following location: • <install directory>\c2000\C2000Ware_x_xx_xx_xx\boards\controlCARDs\TMDSCNCD2800137\Rx_x TMDSCNCD2800137 controlCARD Information Guide SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 7: Experimentation Software
1-bit better source than the converter. In this case, that means that ideally the analog input can be accurate to 13-bits. SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 TMDSCNCD2800137 controlCARD Information Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 8: Figure 5-1. Female Sma Connector
300 pF capacitors were used. Using this setup, the ADC parameters were observed to be consistent with the numbers in the device-specific data sheet. Figure 5-1. Female SMA Connector TMDSCNCD2800137 controlCARD Information Guide SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 9: Hardware References
Figure 6-1. Key Components on the controlCARD - Front SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 TMDSCNCD2800137 controlCARD Information Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 10: Figure 6-2. Key Components On The Controlcard - Back
External precision resistor. Optional external precision resistor (ExtR), no populated by default, to achieve better accuracy with INTOSC2. Refer to the F280013x data sheet for more information on the ExtR feature. TMDSCNCD2800137 controlCARD Information Guide SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... - Page 11 Device Ground XRSn of F280013x device: Connected to the XRSn pin of the F280013x device. SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 TMDSCNCD2800137 controlCARD Information Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
-
Page 12: Revision History
• Added Warning in Section 4.4 ........................... • Changed Table 4-1 ............................• Added Warning in Section 6 ..........................TMDSCNCD2800137 controlCARD Information Guide SPRUJ15B – NOVEMBER 2021 – REVISED OCTOBER 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... - Page 13 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
