Installation

• If the computer is turned on you must turn it off before continuing.

Do not plug-in or turn-on the power to the monitor until instructed to do so.

• The following illustrations are for your reference only. The appearance and available input and output jacks

may vary depending on the purchased model.

Avoid finger pressure on the screen surface.

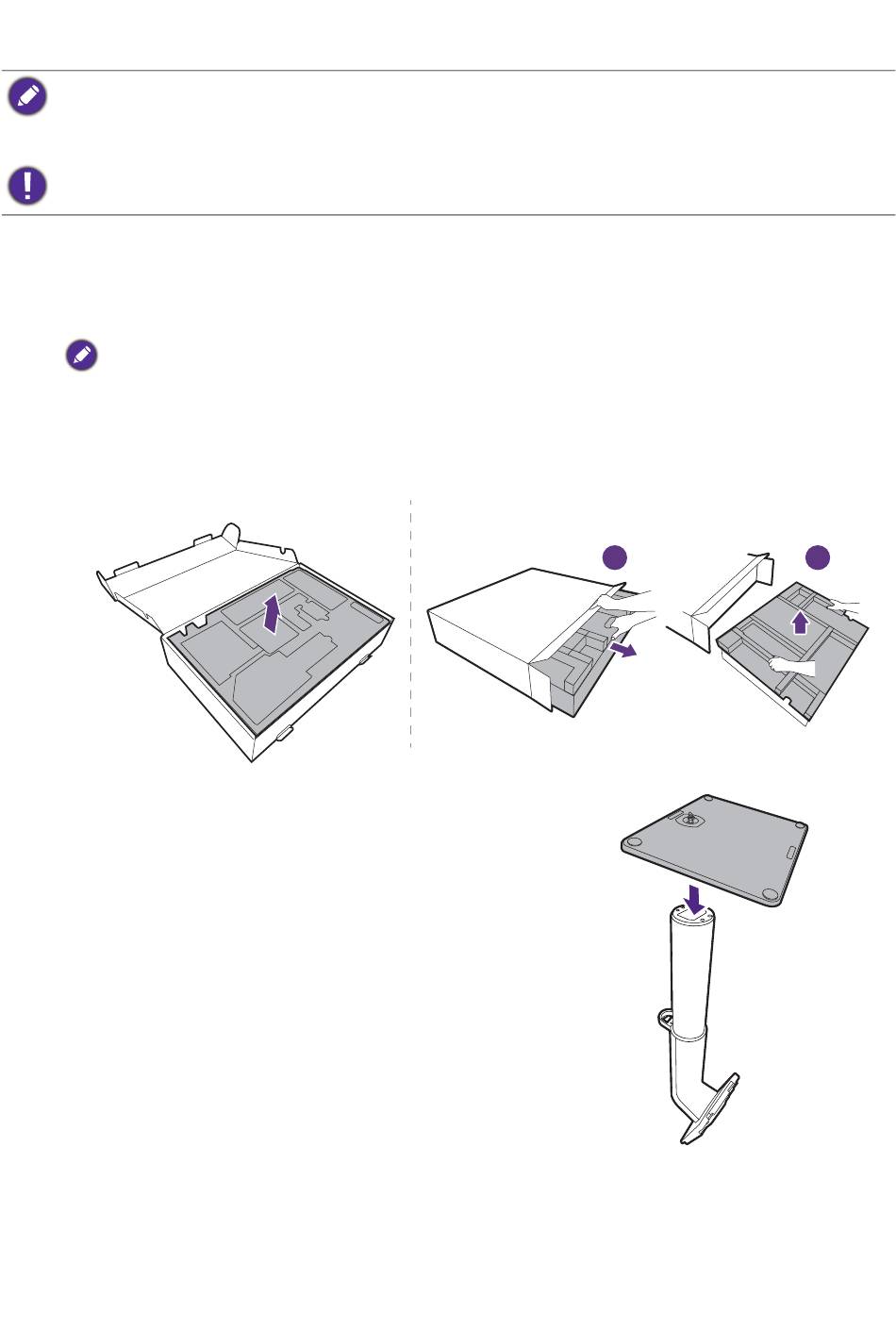

1. Attach the monitor base. (PD3206U / PD3225U / PD3420Q)

Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a

stapler or a mouse will crack the glass or damage the LCD substrate voiding your warranty. Sliding or

scraping the monitor around on your desk will scratch or damage the monitor surround and controls.

While the monitor is still inside the box, remove the cushion that protects the back of the

monitor.

PD3420Q

Remove the foam wrap from the monitor stand and

base. Attach the monitor stand to the monitor base

as illustrated.

PD3206U / PD3225U
