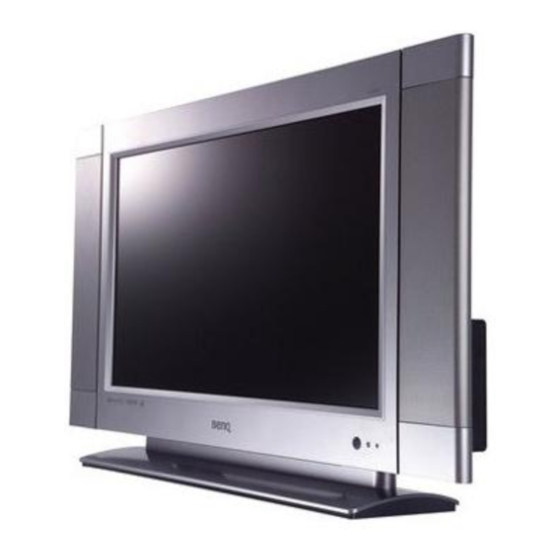

BenQ V32S User Manual
  1. Manuals
  2. Brands
  3. BenQ Manuals
  4. Monitor
  5. V32S
  6. User manual

BenQ V32S User Manual

Lcd display
Hide thumbs Also See for V32S:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
DV3251-En.book Page i Monday, December 12, 2005 4:07 PM

Table of Contents

Section 1: Quick Start Guide........................................ 1
1. Please read these instructions......................................................................... 2
2. Unpack the display ......................................................................................... 2
3. Select and prepare the installation location .................................................. 3
4. Connect the antenna cable ............................................................................. 4
5. Connect the power cable ................................................................................ 4
6. Activate the remote control............................................................................ 5
7. Initialise the display ........................................................................................ 6
8. View the TV programs ................................................................................... 7
Care and cleaning information .......................................................................... 7
What's next? ........................................................................................................ 7
Section 2: User's Manual .............................................. 9
Getting to know your display.................................................10
Introduction........................................................................................................ 10
What do I connect?............................................................................................. 10
Input options ...................................................................................................... 10
Connecting analog TV source inputs.................................................................................10
Connecting Composite (AV) source inputs ......................................................................10
Connecting Component Video source inputs ...................................................................10
Connecting other Graphic source inputs...........................................................................11
Display (front view)............................................................................................ 11
Display control panel.......................................................................................... 12
External AV devices (temporary) terminal panel ............................................. 13
Display (rear view).............................................................................................. 14
Getting to know the remote control ......................................16
Using the remote control .......................................................18
Power on, power off and standby ...................................................................... 18
Turning on the display........................................................................................................18
Turning off the display........................................................................................................18
Switching inputs ................................................................................................. 18
Adjusting volume................................................................................................ 18
Adjusting the volume ..........................................................................................................18
Mute setting .........................................................................................................................18
TV sound mode selection ...................................................................................................18
Changing programs ............................................................................................ 18
Selecting a picture mode .................................................................................... 19
Table of Contents
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V32S and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ V32S

Summary of Contents for BenQ V32S

  • Page 1: Table Of Contents

    DV3251-En.book Page i Monday, December 12, 2005 4:07 PM Table of Contents Section 1: Quick Start Guide........1 1. Please read these instructions................. 2 2. Unpack the display ..................2 3. Select and prepare the installation location ..........3 4. Connect the antenna cable ................4 5.
  • Page 2 DV3251-En.book Page ii Monday, December 12, 2005 4:07 PM Using the freeze function ................... 19 Adjusting aspect ratio ..................19 Using the PIP function ..................19 Using the sleep timer ..................20 Adjusting backlight ..................... 20 Display information.................... 20 Using the Teletext function................20 Setting-up the display device ..........
  • Page 3 DV3251-En.book Page iii Monday, December 12, 2005 4:07 PM Specifications ...................... 39 Supported PC (D-Sub/DVI) Input Signal Timing ........... 40 Supported Video (Component/DVI) Input Signal Timing ......40 Aspect ratio behaviour ..................41 16:9 ............................41 4:3 ............................41 Letterbox ..........................42 Wide .............................42 Real............................43 Troubleshooting ....................
  • Page 4 DV3251-En.book Page iv Monday, December 12, 2005 4:07 PM <Memo> Table of Contents...

  • Page 5: Section 1: Quick Start Guide

    DV3251-En-QuickStartGuide.fm Page 1 Tuesday, December 13, 2005 2:03 PM V32S/DV3251/DV3253 LCD Display Section 1: Quick Start Guide Welcome...

  • Page 6: Please Read These Instructions

    DV3251-En-QuickStartGuide.fm Page 2 Tuesday, December 13, 2005 2:03 PM 1. Please read these instructions Congratulations on purchasing your BenQ V32S/DV3251/DV3253 LCD Display. You have a state-of-the-art flat widescreen digital LCD display which should provide you with years of viewing pleasure.

  • Page 7: Select And Prepare The Installation Location

    Do not glue the bracket to the wall. Use only a recommended BenQ TV wall bracket for this model display. Ensure the bracket is level horizontally. Once all considerations and precautions have been made, position the display where most suitable.

  • Page 8: Connect The Antenna Cable

    Never change the plug type on a power cable. Be aware of total loading when using extension cords or multiple outlet power boards. WARNING: This BenQ LCD display has been engineered and manufactured with the highest priority on safety, however IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD.

  • Page 9: Activate The Remote Control

    DV3251-En-QuickStartGuide.fm Page 5 Tuesday, December 13, 2005 2:03 PM 6. Activate the remote control Locate the remote control and batteries from the packaging, and unwrap them. Turn the remote control end up to reveal its base, and open the lid of the battery compartment by using a small coin or similarly curved object to rotate the slot 90°...

  • Page 10: Initialise The Display

    DV3251-En-QuickStartGuide.fm Page 6 Tuesday, December 13, 2005 2:03 PM Test the remote control Press the Power button on the remote control. The display should turn on, and the power indicator change to green. If so, progress to the next step (7.

  • Page 11: View The Tv Programs

    DV3251-En-QuickStartGuide.fm Page 7 Tuesday, December 13, 2005 2:03 PM 8. View the TV programs Press the Program or Program buttons on the remote control (as highlighted in the illustration) or press the Program or Program buttons on the top of the display to view the TV programs available in your area.
  • Page 12 DV3251-En-QuickStartGuide.fm Page 8 Tuesday, December 13, 2005 2:03 PM <Memo> Section 1: Quick Start Guide...

  • Page 13: Section 2: User's Manual

    DV3251-En.book Page 9 Monday, December 12, 2005 4:07 PM V32S/DV3251/DV3253 LCD Display Section 2: User’s Manual Welcome...

  • Page 14: Getting To Know Your Display

    DV3251-En.book Page 10 Monday, December 12, 2005 4:07 PM Getting to know your display Introduction This booklet is divided into two sections: the Quick Start Guide; and the User’s Manual. For details of the Quick Start Guide, see "1. Please read these instructions" on page This is section 2, the User's Manual which describes how to customise the display settings so that you can gain the best viewing experience possible to suit your preferences and viewing environment.

  • Page 15: Connecting Other Graphic Source Inputs

    DV3251-En.book Page 11 Monday, December 12, 2005 4:07 PM Connecting other Graphic source inputs You can connect a PC video card graphic source (if available) like an RGB output or a digital DVI output. If your device supports HDMI output, you can also use the HDMI input on the LCD display for connection.

  • Page 16: Display Control Panel

    DV3251-En.book Page 12 Monday, December 12, 2005 4:07 PM Display control panel Name Description Toggles the display between standby mode and on. (Performs (Power) the same action as the Power button on the remote control.) • Cycles through possible input signal sources. (Performs the same action as the Input button on the remote control.) INPUT...

  • Page 17: External Av Devices (Temporary) Terminal Panel

    DV3251-En.book Page 13 Monday, December 12, 2005 4:07 PM External AV devices (temporary) terminal panel Name Description This socket is an audio output for connecting an external Headset socket headset. The display speakers will be muted whenever the headset socket is being used. •...

  • Page 18: Display (Rear View)

    DV3251-En.book Page 14 Monday, December 12, 2005 4:07 PM Display (rear view) 9 11 Name Description AC INLET Connect to the AC power cable Connect to a DVI digital video or HDMI digital audio/video output of HDMI your digital source device Connect to the audio output of either the PC or DVI digital video PC AUDIO output as appropriate for your source device.
  • Page 19 DV3251-En.book Page 15 Monday, December 12, 2005 4:07 PM Connect to the audio output of either the Composite Video or S- AV3 AUDIO Video output as appropriate for your AV source device. (These inputs are common for either Video or S-Video audio.) ANTENNA Connect to your antenna TV/CATV cable system Connect each to the SCART output of up to 2 separate AV source...

  • Page 20: Getting To Know The Remote Control

    DV3251-En.book Page 16 Monday, December 12, 2005 4:07 PM Getting to know the remote control Power Press this button to power the display on and off. See "Power on, power off and standby" on page Input Press this button to select a different input source. See "Switching inputs"...
  • Page 21 DV3251-En.book Page 17 Monday, December 12, 2005 4:07 PM Subpage Press this button to enter the subpage of a Teletext menu. See "Using the Teletext function" on page Teletext Press this button to turn the Teletext decoder on or off. Page store won’t start until the Teletext decoder is activated.

  • Page 22: Using The Remote Control

    DV3251-En.book Page 18 Monday, December 12, 2005 4:07 PM Using the remote control Power on, power off and standby Turning on the display After plugging the display's power cord into a wall outlet, the display will enter standby mode automatically. The power indicator will light up red. Press the (Power) button on the top of the display, or press the Power button on the remote control as highlighted.

  • Page 23: Using The Program 5/6 Buttons To Sequentially Change Programs

    DV3251-En.book Page 19 Monday, December 12, 2005 4:07 PM • The program indicator icon on the top right corner of the screen shows either '-' or '--' to indicate which entry mode is selected. Using the program buttons to sequentially change programs Press the Program buttons on your remote control, or press the Program Program...

  • Page 24: Using The Sleep Timer

    DV3251-En.book Page 20 Monday, December 12, 2005 4:07 PM Using the sleep timer Press the Sleep button to enter the sleep timer function. Press the button again to set the time interval. Time is set in increments of 30 minutes, from 0 to 180 minutes.

  • Page 25: Setting-Up The Display Device

    DV3251-En.book Page 21 Monday, December 12, 2005 4:07 PM Setting-up the display device Connecting audio and video inputs Pay attention to the following when making connections: • For safety reasons, before connecting any external devices, please turn the devices off. •...

  • Page 26: Connecting The Composite Video Input

    DV3251-En.book Page 22 Monday, December 12, 2005 4:07 PM Connecting the Composite Video input Connect the Composite Video output of your AV equipment to the Composite Video (AV3) input terminals on the back of the display using the Composite Video cable (RCA connector, not provided) as illustrated.

  • Page 27: Connecting The Component Video Input

    DV3251-En.book Page 23 Monday, December 12, 2005 4:07 PM Connecting the Component Video input The display supports two separate sets of Component Video inputs. This allows you to connect two independent Component Video equipped AV devices to the display at the same time if you wish.

  • Page 28: Connecting The Hdmi Input

    DV3251-En.book Page 24 Monday, December 12, 2005 4:07 PM Connecting the HDMI input Connect the HDMI output of your equipment to the HDMI terminal on the display using an HDMI cable (not provided). HDMI (High-Definition Multimedia Interface) is an uncompressed and all- digital audio/video interface.

  • Page 29: Connecting The Audio Output

    DV3251-En.book Page 25 Monday, December 12, 2005 4:07 PM Connecting the audio output The display provides a set of (RCA type) stereo audio output terminals for delivering the audio signal to a sound system or other audio devices. If you use this outlet, you may wish to mute the built-in speakers.

  • Page 30: On-Screen Display (Osd) Menu

    DV3251-En.book Page 26 Monday, December 12, 2005 4:07 PM On-Screen Display (OSD) menu OSD structure Audio Picture Feature • Volume • Picture Mode • Black Extension • Balance • Contrast • ACE • Sound Type • Brightness • Noise Reduction •...

  • Page 31: Audio Menu

    DV3251-En.fm Page 27 Thursday, December 15, 2005 2:20 PM Audio menu 1. Press the MENU button to display the main menu. 2. Press the or buttons to select Audio and then press OK to enter the submenu. 3. Press the or buttons to select an item. 4.

  • Page 32: Picture Menu

    DV3251-En.fm Page 28 Thursday, December 15, 2005 2:20 PM Use to increase mid treble Adjust mid-treble tones. tone, to decrease mid treble -12 to 12 Treble tone. Use to increase middle tone, Middle Adjust mid tones. -12 to 12 to decrease middle tone. Use to increase mid bass tone, Mid Bass Adjust mid-bass tones.
  • Page 33 DV3251-En.book Page 29 Monday, December 12, 2005 4:07 PM Adjusts image sharpness level when Personal is selected as the for sharper image Picture Mode. Sharpness 0 to 7 for softer image This option will not appear when PC or DVI (via the HDMI input) is the signal source.

  • Page 34: Feature Menu

    DV3251-En.book Page 30 Monday, December 12, 2005 4:07 PM Feature menu 1. Press the MENU button to display the menu. 2. Press the buttons to select Feature and then press OK to enter the submenu. 3. Press the buttons to select an item. 4.

  • Page 35: Window Menu

    DV3251-En.book Page 31 Monday, December 12, 2005 4:07 PM Window menu This item is available only when PC is the signal source. 1. Press the MENU button to display the menu. 2. Press the buttons to select Window and then press OK to enter the submenu. 3.

  • Page 36: Tv Menu

    DV3251-En.book Page 32 Monday, December 12, 2005 4:07 PM TV menu 1. Press the MENU button to display the menu. 2. Press the buttons to select TV and then press OK to enter the submenu. 3. Press the buttons to select an item. 4.

  • Page 37: Performing Manual Installation

    DV3251-En.book Page 33 Monday, December 12, 2005 4:07 PM Performing manual installation The Manual Installation feature allows you to change the program locations that are stored in the TV Program memory of the display. This option is not possible when the Child lock is activated. See "Child lock"...

  • Page 38: Editing Programs

    DV3251-En.book Page 34 Monday, December 12, 2005 4:07 PM Editing programs You can delete unwanted programs, add a program name and change the program position number. This option is not possible when the Child lock is activated. See "Child lock" on page Naming a program 1.

  • Page 39: Child Lock

    DV3251-En.book Page 35 Monday, December 12, 2005 4:07 PM 3. Press the button to highlight PR Delete and then press the OK button to delete the program. 4. Press the MENU button to close the menus. Child lock The Child Lock function can be used to prevent access to selected programs. For example, to prevent children viewing inappropriate broadcast programs such as adult-only programs.

  • Page 40: Setup Menu

    DV3251-En.book Page 36 Monday, December 12, 2005 4:07 PM Setup menu 1. Press the MENU button to display the menu. 2. Press the buttons to select Setup and then press OK to enter the submenu. 3. Press the buttons to select an item. 4.

  • Page 41: Reference

    BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents of this User's Manual. BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents thereof without obligation to notify any person of such revision or changes.

  • Page 42: Dimensional Drawings

    DV3251-En.book Page 38 Monday, December 12, 2005 4:07 PM Dimensional drawings Unit: mm Reference...

  • Page 43: Specifications

    DV3251-En.book Page 39 Monday, December 12, 2005 4:07 PM Specifications Model V32S/DV3251/DV3253 Weight 20 Kg (Net) Display Dimensions 997 (W) x 593.5 (H) x 123.5 (D) mm LCD Panel Size 80 cm (31.5 inches) Aspect ratio 16:9 Native resolution 1366 x 768...

  • Page 44: Supported Pc (D-Sub/Dvi) Input Signal Timing

    DV3251-En.book Page 40 Monday, December 12, 2005 4:07 PM Supported PC (D-Sub/DVI) Input Signal Timing Horizontal Vertical Dot Clock Resolution Note Frequency (Khz) Frequency (Hz) Frequency (Mhz) 720 x 400 31.467 70.082 28.32 640 x 480 31.469 59.94 25.175 640 x 480 37.861 72.819 31.5...

  • Page 45: Aspect Ratio Behaviour

    DV3251-En.book Page 41 Monday, December 12, 2005 4:07 PM Aspect ratio behaviour According to the signal sources connected to the display, the input video images may have different native aspect ratios. Aspect ratio refers to the ratio between the length and width of the video image.

  • Page 46: Letterbox

    DV3251-En.book Page 42 Monday, December 12, 2005 4:07 PM black (unlit) vertical bars visible on the vertical edges of the screen on either side of the image, marking the difference between the width of a 4:3 aspect image and a 16:9 screen of the same height.

  • Page 47: Real

    DV3251-En.book Page 43 Monday, December 12, 2005 4:07 PM linear non-linear the '16:9' aspect setting in that '16:9' uses image resizing, whereas 'Wide' uses resizing. All of the available image is displayed and none is cropped or lost. Real Displays the image in a one-to-one pixel mapping in the centre of the screen without alteration or resize.

  • Page 48: Troubleshooting

    Troubleshooting There are a very many external influences and circumstances beyond the control of BenQ which may be causing problems with your BenQ LCD display. Some of the more common and user fixable problems are listed below for your assistance.

  • Page 49: Antenna

    DV3251-En.book Page 45 Monday, December 12, 2005 4:07 PM • Check for incorrect battery orientation. • Check for dead batteries • Check your distance and angle from the display. • Check whether remote control is properly being pointed at the display's remote control sensor window. •...
