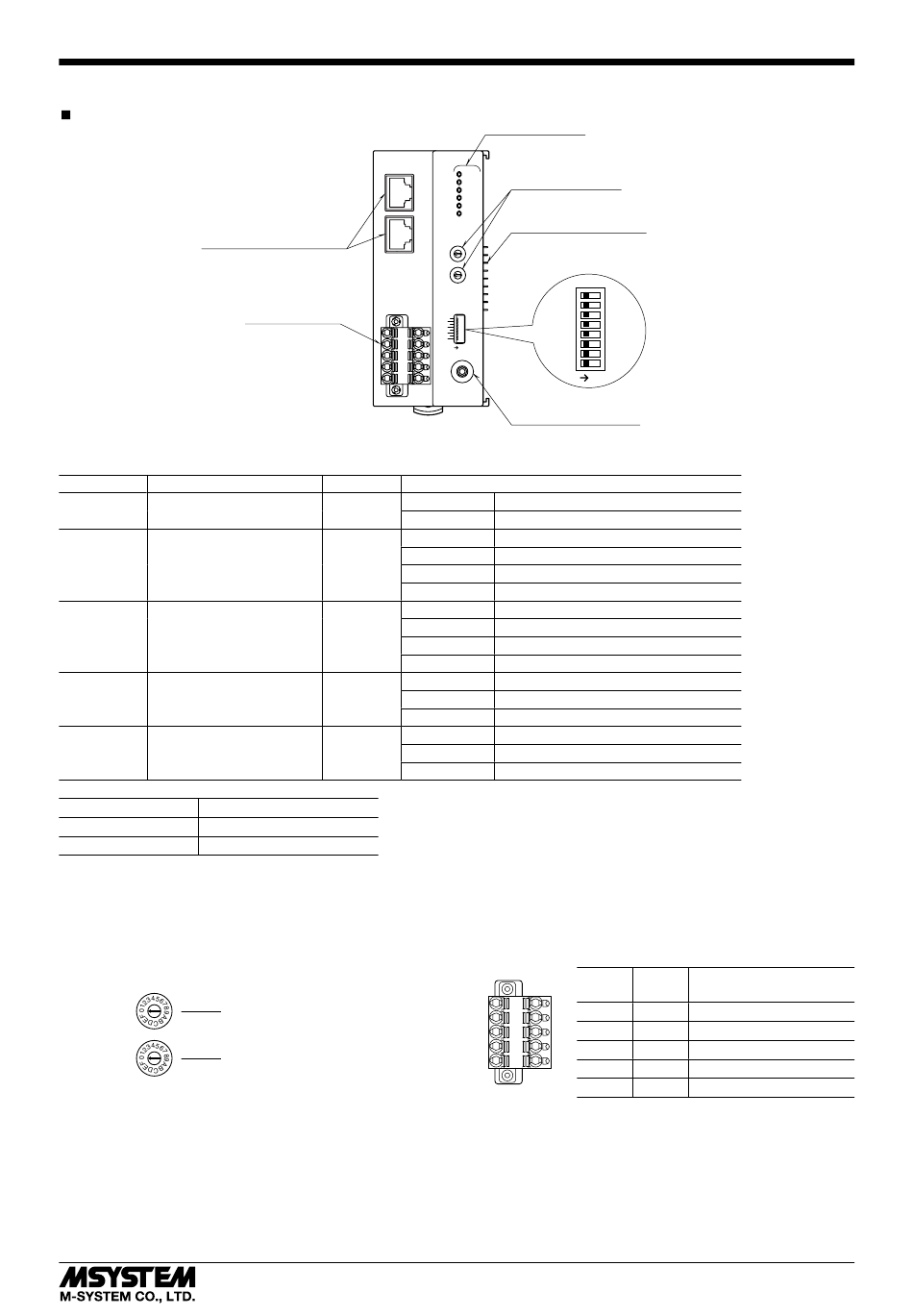

COMPONENT IDENTIFICATION

FRONT VIEW
EtherCAT Communication
RJ-45 Modular Jack
■ STATUS INDICATOR LED
ID FUNCTION
Power Main unit internal power
RUN Device state
ERR Error
L/A IN IN port status
L/A OUT OUT port status
Blinking 200ms-On, 200ms-Off
Single Flash 200ms-On, 1000ms-Off
Flickering 50ms-On, 50ms-Off
■ FIXED ADDRESS
Fixed address 1 to 255 can be set using the two rotary
switches each marked 0 to F in combination.
When fixed address is not used, set the switches to 0.
Settable range: 0 to 255
Factory default: 0
Address Setting (x16)
Address Setting (x1)
■ MAINTENANCE MODE DIP SW
SW1-1 to 7 Unused
SW1-8 OFF Normal operating
ON Maintenance mode
I/O module RUN indicator turning on order is
from the lowest address. This operation is re-
peated every time it is turned off until recover-
ing.
ECAT IN
ECAT OUT
Connector for
Power Supply and
Excitation Supply
COLOR
Green
Green
Single Flash
Red
Single Flash
Green Flickering
Green Flickering
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
Status Indicator LED
Fixed Address Setting
Power
Rotary SW
RUN
ERR
L/A IN
L/A OUT
Internal Bus Connector
Function Setting
X16
DIP SW
Dev ID
X1
8
7
SW1
6
8
7 5
6
5
4
4
3
2
1
3
On
2
Config
1
On
Miniature Jack Connector
for Configuration
STATUS
Off Error
On Normal
Off INIT
Blinking PRE-OPERATIONAL
SAFE-OPERATIONAL
On OPERATIONAL
Off No error
Blinking Invalid Configuration
Local error
On Application Controller failure
Off No Link
Link and activity
On Link without activity
Off No Link
Link and activity
On Link without activity
■ POWER SUPPLY, EXCITATION SUPPLY CONNECTOR
ASSIGNMENT
Printed-circuit board connector (Phoenix Contact)
Unit side connector: MSTBV2,5/5-GF-5,08AU
Cable side connector: TFKC2,5/5-STF-5,08AU
1
2
3
4
5
R8-NECT1
PIN
ID FUNCTION
No.
1 24V Power supply 24V DC
2 0V Power supply 0V DC
3 + Excitation supply 24V DC
4 – Excitation supply 0V DC
5 FE1 Grounding
EM-9738-B Rev.13 P. 3 / 20
