Installing the Device
2.5.1 Connecting High AC/DC Power
5.
6.
16
Screw
1
Safety Cover
2
Screw Terminal Block
3
RUGGEDCOM RX1536 Device
4

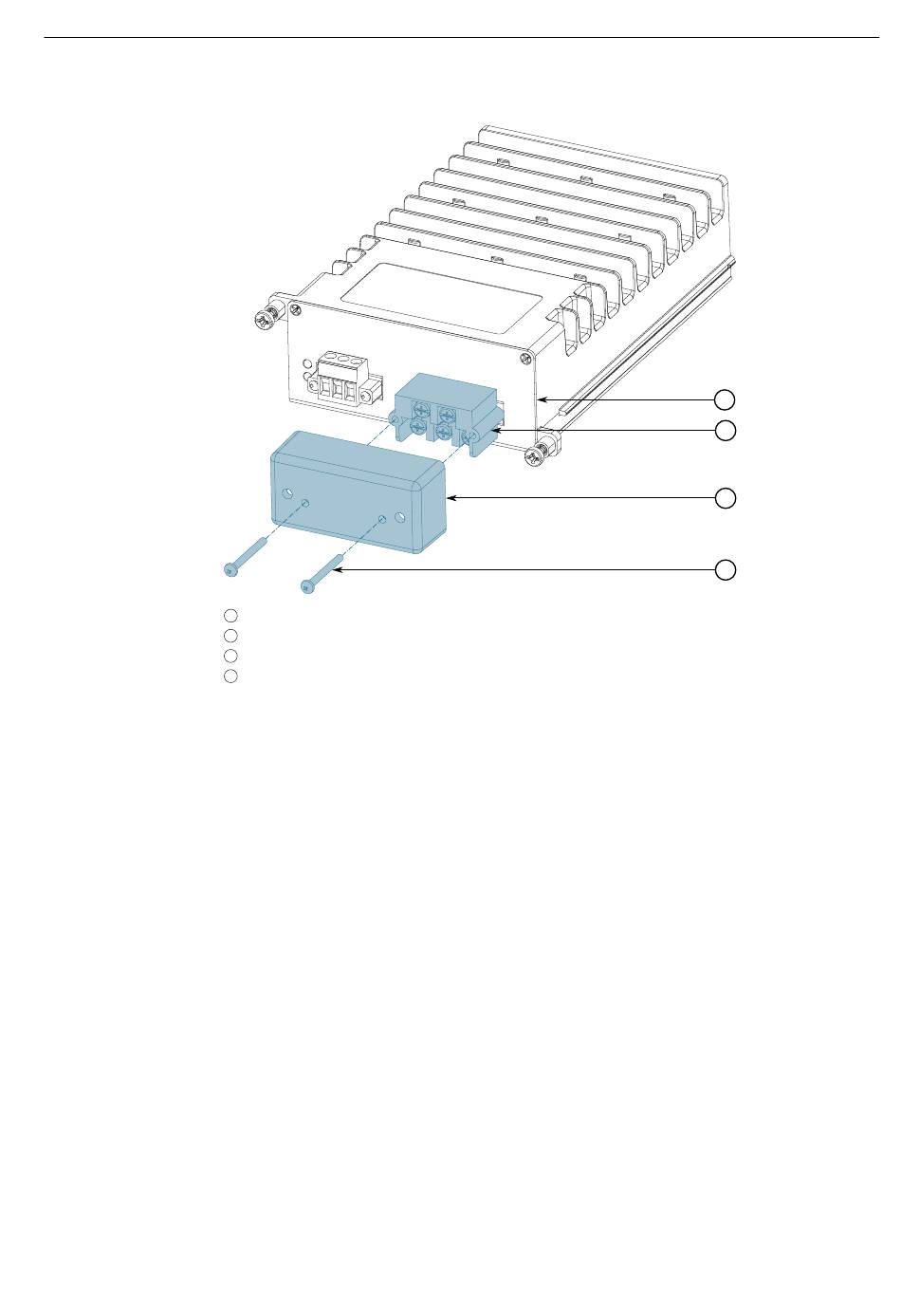

Figure 2.7 Assembling the Safety Cover
Using a braided wire or other appropriate grounding wire, connect the ground
terminal to the chassis ground connection.
Using a #10 ring lug and #10-32 screw, secure the ground terminal on the
power source to the ground connection on the device. Make sure the screw is
tightened to 1.1 N·m (9.5 lbf·in).
4
3
2
1
RUGGEDCOM RX1536
Equipment Manual, 10/2023, C79000-G8976-1488-07
