Installing the Device
2.3.1 Mounting the Device to a Rack
Vibration hazard – risk of damage to the device.
Always use four rack mount adapters (two at the front of the device and two at the
rear) when installing the device in high-vibration or seismically active locations.
Electrical/mechanical hazard – risk of damage to the device.
Before installing the device in a rack, make sure of the following:
•
•
•
•
To secure the device to a standard 48 cm (19 in) rack, do the following:
1.
10
NOTICE
NOTICE
When installing the device in a closed or multi-device rack, be aware that
the operating ambient temperature of the rack may be higher than the
ambient temperature of the room. Make sure the rack is installed in a suitable
environment that can withstand the maximum ambient temperature generated
by the rack.
Do not exceed the maximum number of devices or weight restrictions specified
by the rack manufacturer.
Do not overload the supply circuit. Refer to the over-current protection and
power supply ratings specified by the rack manufacturer.
Make sure the rack and all devices have a proper ground-to-Earth connection.
Pay particular attention to power supply connections other than direct
connections to the branch circuit (e.g. power strips).
Make sure the rack mount adapters are installed on the correct side of the
chassis.
•
To make the modules and ports accessible, install the rack mount adapters
at the rear of the chassis
•
To make the management ports and LEDs accessible, install the rack mount
adapters at the front of the chassis
Note
The chassis features multiple mounting holes, allowing the rack mount adapters
to be installed up to 25 mm (1 in) from the face of the device.

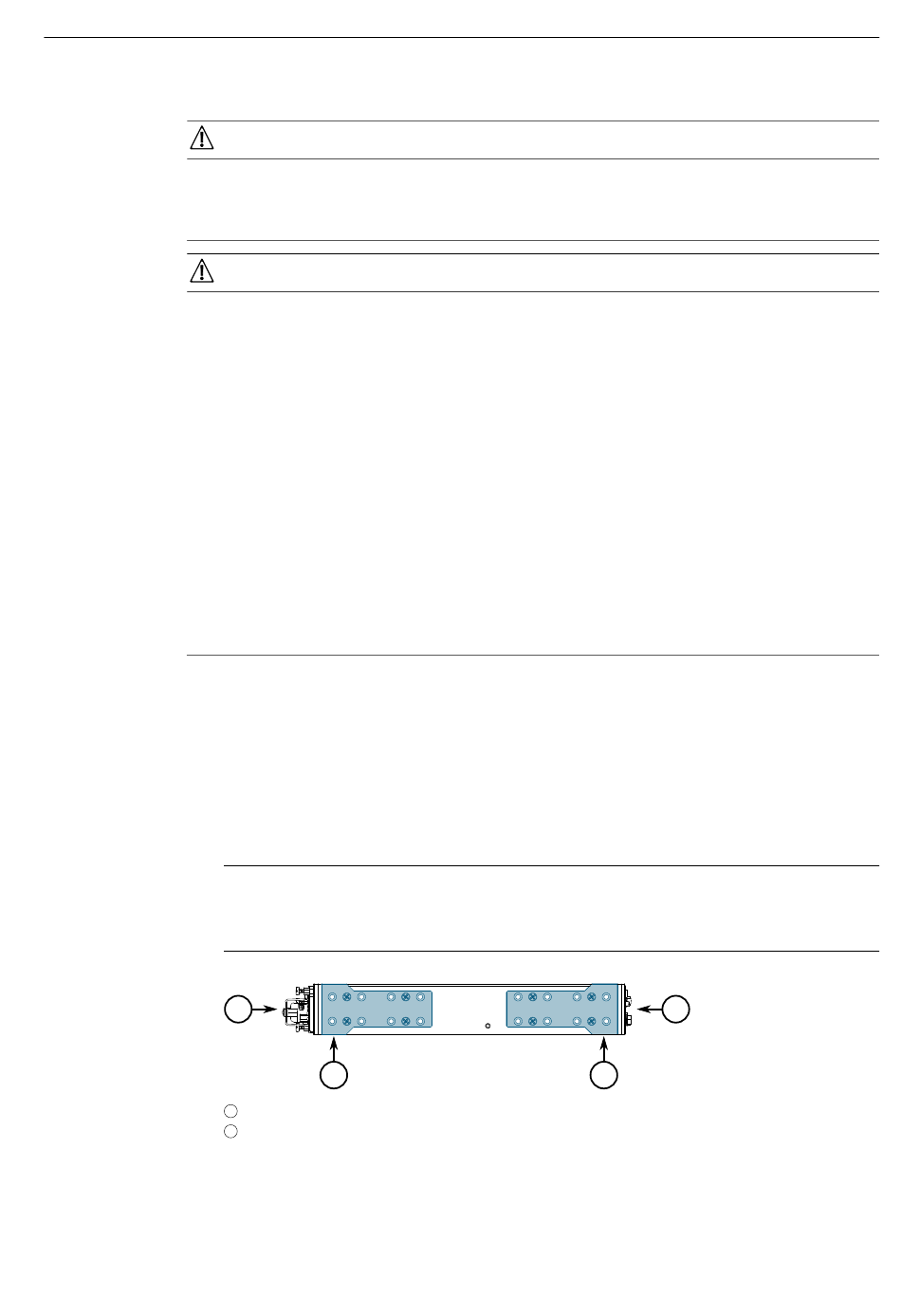

1
3
Rear
1
Front
2
2
3
Equipment Manual, 10/2023, C79000-G8976-1488-07
