2.5.1 Connecting High AC/DC Power
2.5.1 Connecting High AC/DC Power
To connect a high AC/DC power supply to the device, do the following:
Electrocution hazard – risk of death, serious personal injury and/or damage to
the device
Make sure the supplied cover is always installed over high voltage screw terminal
blocks.
Electrical hazard – risk of damage to equipment
Do not connect AC power cables to a 12, 24 or 48 VDC power supply terminal block.
Damage to the power supply may occur.
1.
14
DANGER
NOTICE
Connect the power supply terminal block to the device.
European-style (Euroblock) Terminal Block
1
Positive/Live (+/L) Terminal
2
Ground Terminal
3
Negative/Neutral (-/N) Terminal
4

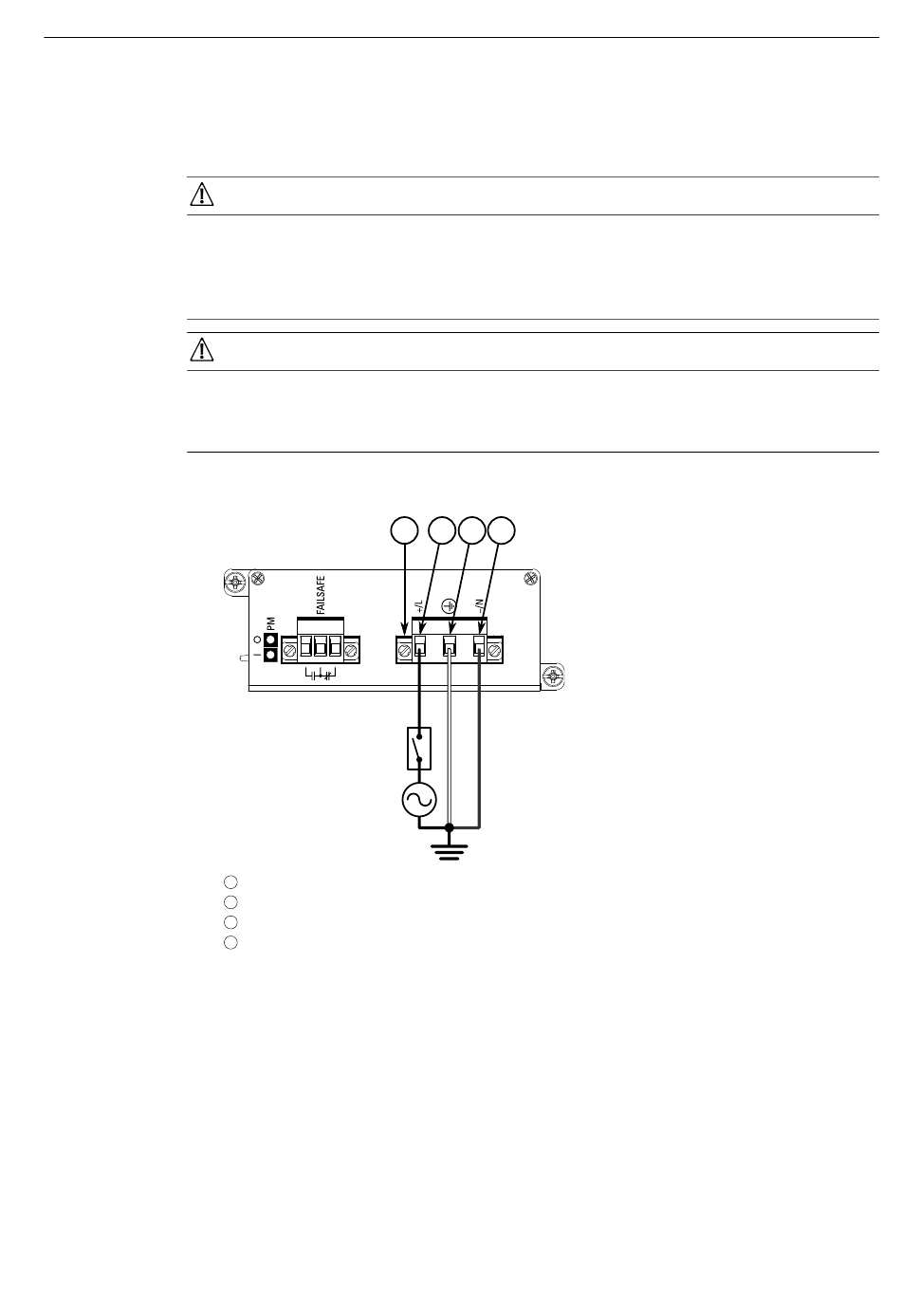

Figure 2.5 AC Terminal Block Wiring – European-style (Euroblock) Terminal Block for HIP
Power Supplies
1 2 3 4
