CARTON CONTENTS

1. Sweeper Housing Assembly
2. Bag Arm Tube (2)
3. Hitch Tube, L.H.
4. Hitch Bracket
5. Hitch Bracket (Straight)
6. Height Adjustment Strap
11
10
TOOLS REQUIRED FOR ASSEMBLY
(2)
1/2" Open End or Box End Wrench
(1)
Knife or Scissors
(1)
Hammer
REMOVAL OF PARTS FROM CARTON

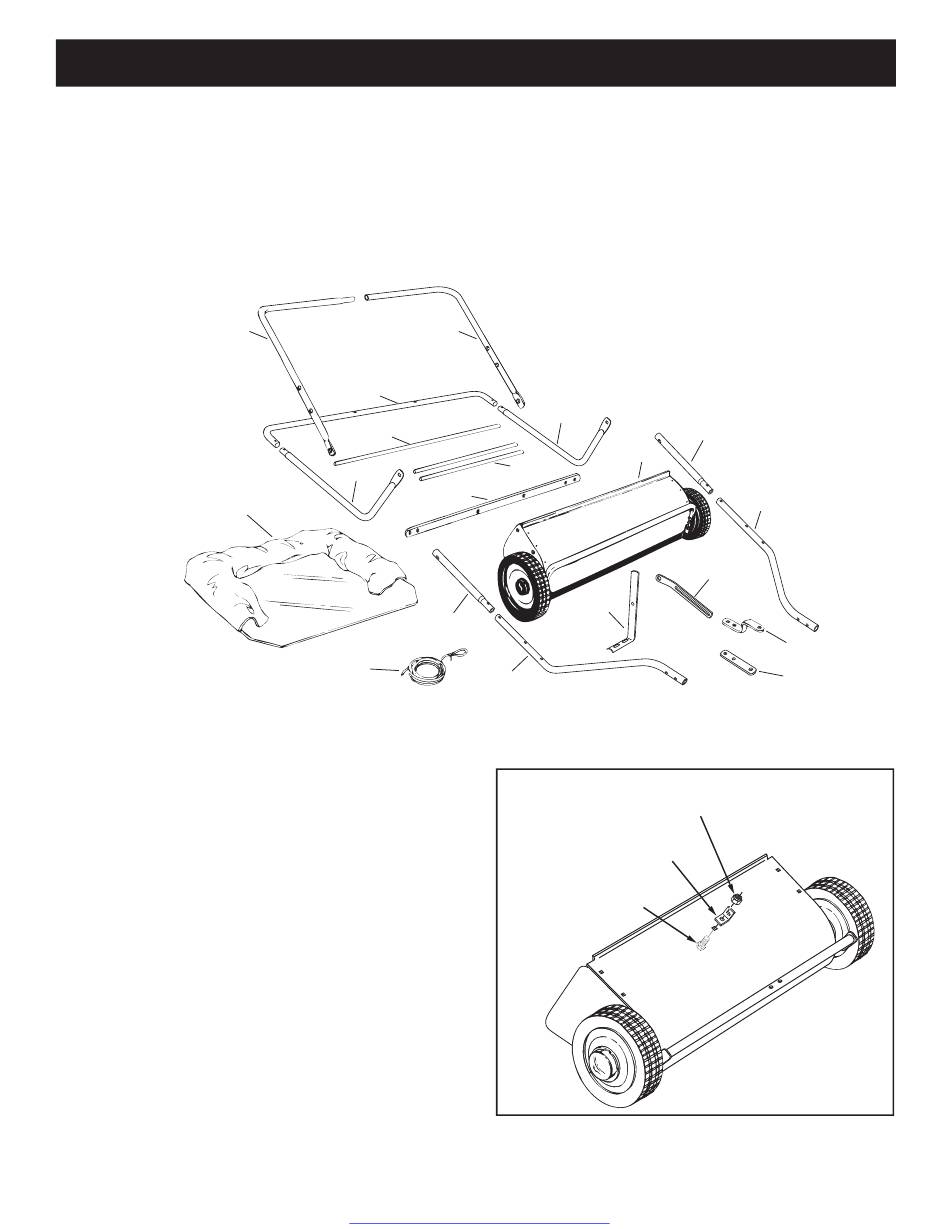

Remove all parts and hardware packages from the
carton. Lay out all parts and hardware and identify
using the illustrations on pages 4 and 5.
ASSEMBLY OF SWEEPER
Note: Right hand (R.H.) and left hand (L.H.) are
determined from the operator's position while seated on
the tractor.
Assemble the angle bracket to the sweeper housing
using a 5/16" x 3/4" hex bolt and a 5/16" hex lock
nut. Make sure the bracket is turned as shown and
aligned straight with the housing and then tighten.
See fi gure 1.

ASSEMBLY

7. Height Adjustment Handle
8. Hitch Tube, R.H.
9. Rope
10. Hopper Bag
11. Upper Hopper Tube, R.H.
12. Upper Hopper Tube, L.H.
12
13
15
16
14
17
2
9
8
FIGURE 1
4
Get other manuals https://www.bkmanuals.com
13. Lower Hopper Tube, Rear
14. Lower Hopper Tube, Side (2)
15. Hopper Bag Rod
16. Hopper Support Rod (2)
17. Bag Frame Strap
14
2
1
6
7
5/16" HEX
LOCKNUT
ANGLE
BRACKET
5/16" x 3/4"
HEX BOLT
3
4
5
