RULES FOR SAFE OPERATION
The following
safety precautions
are suggested,_ This
lawn sweeper
is designed,
engineered
and tested to
offer'
reasonab!y
safe
and
effective
service,
provided it is operated in strict accordance
with these
instructions..
Failure to do so may result in personal
injury. Always
observe
the rules for safe operation.
lv
Do not allow
anyone
to operate
the sweeper
without
proper
instructions
2_
Do not permit
children
to operate
sweeper,
3_
Do not push or tow sweeper too close to a fire,
because
the hopper
and brush
will burnl
4,,
Do
not
attempt
to
remove
wire
or string
wrapped
around
brush while brush is rotating
5,
Operate
sweeper
at reduced
speed
on rough
terrain,
in ditches,
and on hillsides
to prevent
tipping
and loss of control.
Stay alert for holes
or other
hidden hazards
6,
This sweeper is not meant for street or highway
use. Watch
for
traffic
when
sweeping
near
roadways,
7
Keep all nuts, bolts and screws tight to be sure
equipment
is in safe working
condition.
8.
Vehicle and attachments
should be stopped and
inspected
for damage
after
striking
a foreign
object
and damage
should
be repaired
before
restarting
and operating
the equipment.
9,
Fo!low maintenance
instructions
as outlined
in
this manual,,
Your
lawnsweeper
carton
and inner pack
parts
carton contains parts as shown
in the figure below,
The
hardware
package
contains
two
separate
packages,
see figures 1 and 2 on page 3o Identify
all parts and layout as shown in the figure below and
figures 1 and 2.

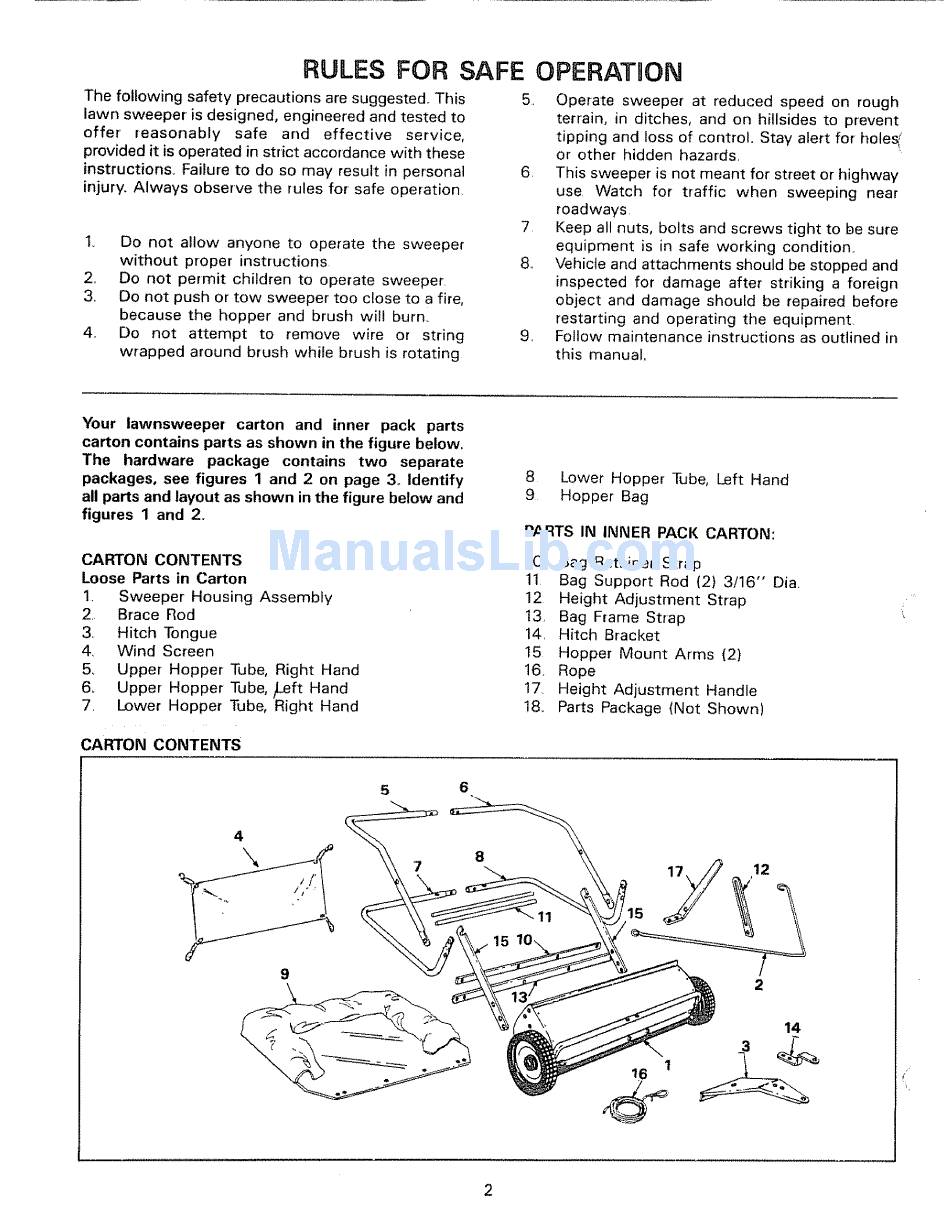

CARTON CONTENTS
Loose Parts in Carton
1,
Sweeper
Housing
Assembly
2,.
Brace Rod
3
Hitch
Tongue
4.
Wind
Screen
5.
Upper
Hopper
Tube, Right Hand
6.
Upper
Hopper
Tube, )_eft Hand
7,
Lower
Hopper
Tube, Right Hand
CARTON
CONTENTS
8
Lower Hopper
Tube, Left Hand
9
Hopper
Bag
PARTS IN INNER PACK CARTON:
10,
Bag Retainer
Strap
11
Bag Support
Rod (2) 3/16"
Dia
12
Height
Adjustment
Strap
13,
Bag Frame Strap
14,
Hitch
Bracket
15
Hopper
Mount
Arms
(2}
16,
Rope
!7,
Height
Adjustment
Handle
18,
Parts Package
(Not Shown)
5
6
4
9
\
12
14
/
i
