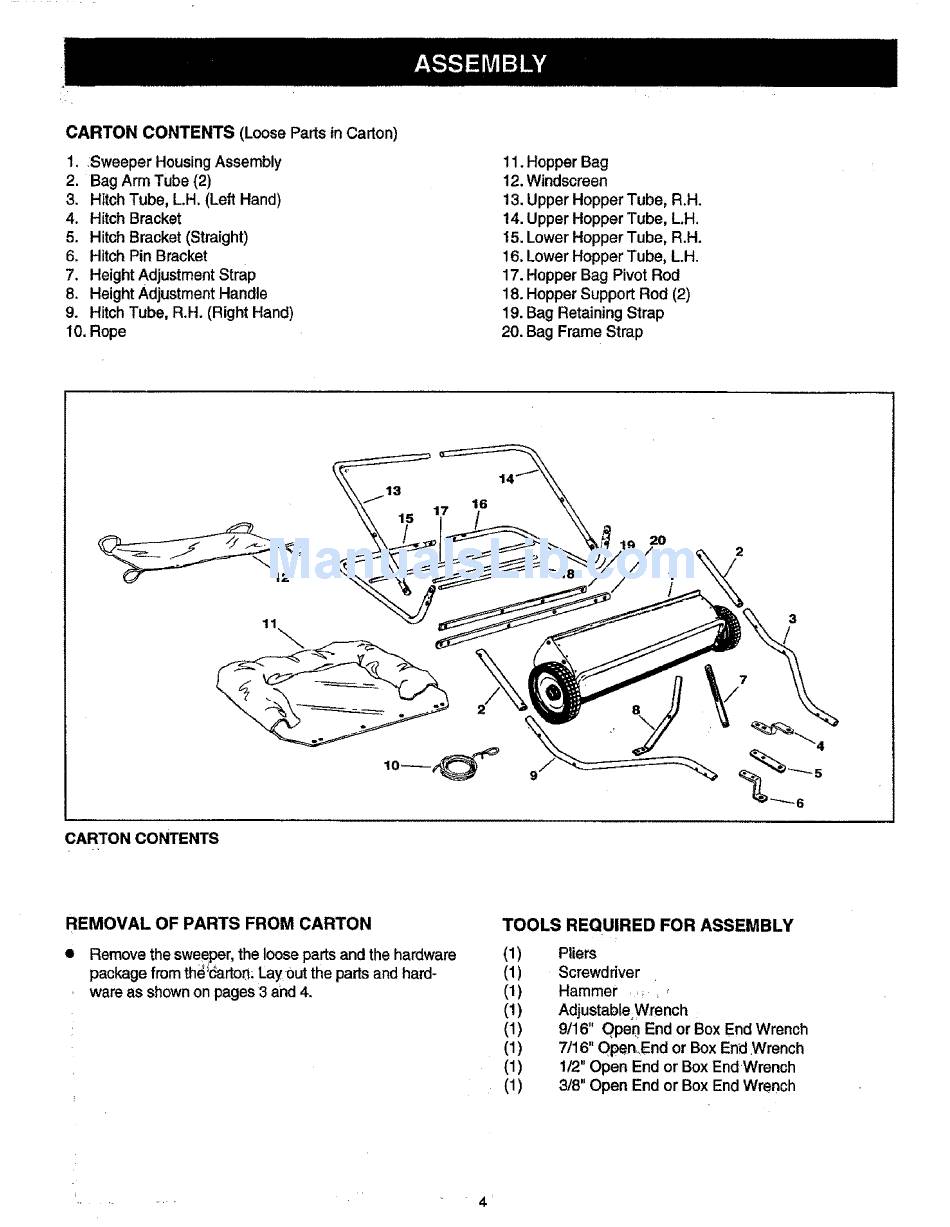

CARTON
CONTENTS
(Loose Parts in Carton)
1..Sweeper
Housing Assembly
3. Hitch Tube, L.H. (Left Hand)
4. Hitch Bracket
9. Hitch Tube, R.H. (Right Hand)
10. Rope
t2. Windscreen
13. Upper Hopper Tube, R.H.
14. Upper Hopper Tube, L.H.
15. Lower Hopper Tube, R.H.
16, Lower Hopper Tube, L.H.
17. Hopper Bag Pivot Rod
19. Bag Retaining Strap
20. Bag Frame Strap
12
20
1
CARTON CONTENTS
REMOVAL
OF PARTS
FROM CARTON
Remove the sweeper, the loose parts and the hardware
package from th_'carton_ Layout the parts and hard-
ware as shown on pages 3 and 4.
TOOLS REQUIRED FOR ASSEMBLY
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
Pliers
Screwdriver
Hammer
_ =,
Adjustable,W.rench
9/16" Open End or Box End Wrench
7/16" Qpen.End or Box En_l ,Wrench
1/2" Open End or Box EndWrench
3/8" Open End or Box End Wrench
