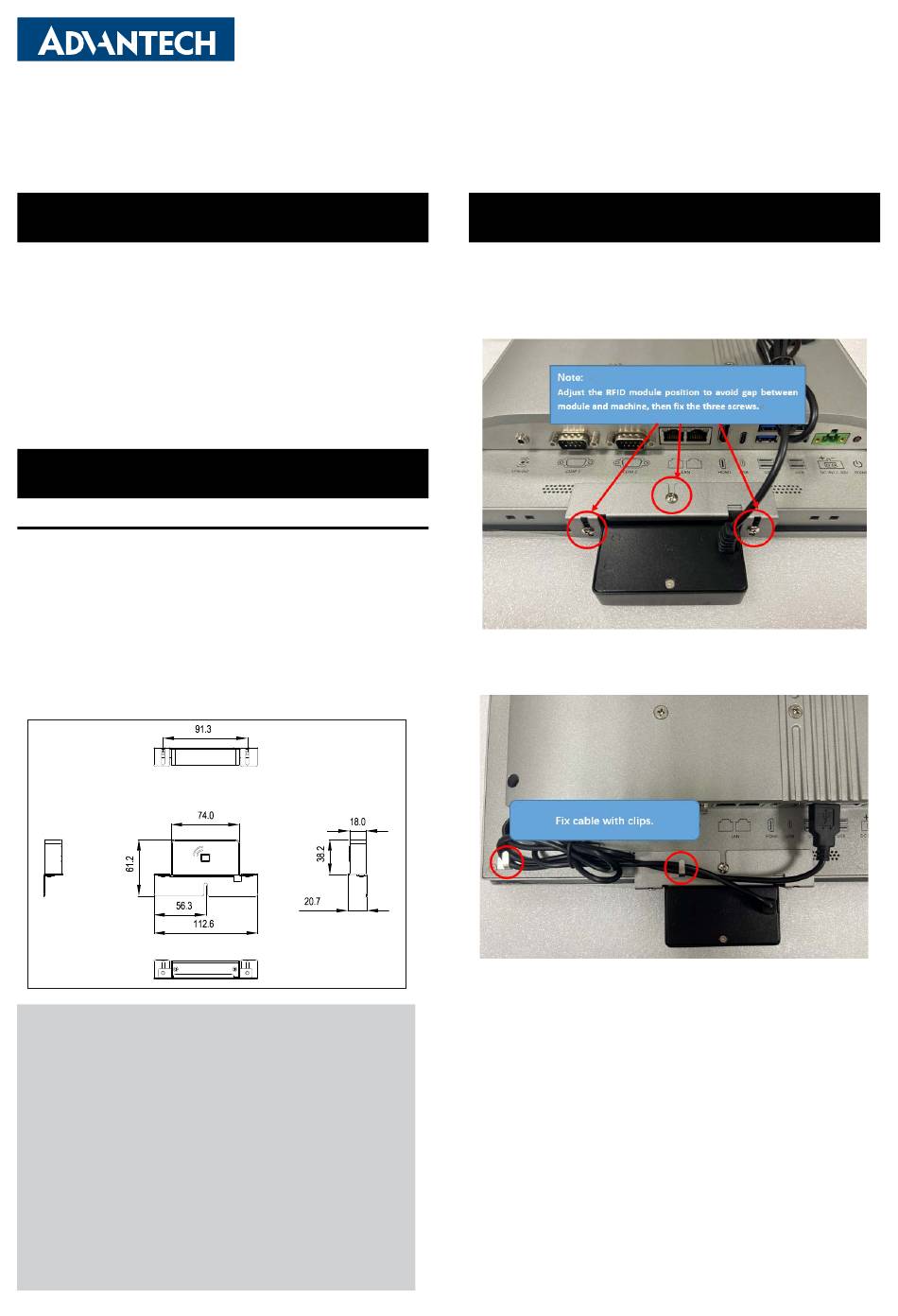

PPC RFID_98R3P300010
Startup Manual
Packing List
Before installation, ensure that the following items are
included with the product:
1. 1 x RFID module
2. 3 x Cable Clip
3. 1 x M3x5L screw
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.

Specifications

General
• Interface: USB
• Cable Length: 50cm
• Frequency: 13.56 MHz & 125KHz
• RFID R/W Mode: Support ISO14443A/B, 125KHz,
(MifareS50/S70, Ultralight, FM1208, Desfire, EM4100,
T5577)
• OS Support: Windows, Linux, Android
• Operating Temperature: 0 ~ 50° C
• Dimension:
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the PPC RFID 98R3P300010, Rev.
A1.
Part No. 2041C30010
Printed in China
Assemble Instruction
1. Fix the assembled module kits onto the machine with
2. Insert the USB cable into one of the USB ports, and fix
1st Edition
October 2023
existing screws, pay attention to adjust the screws to
avoid gap between RFID module and machine. As the
following picture shows:
the cable with clip. As the following picture shows:
PPC-RFID_98R3P300010 Startup Manual 1
