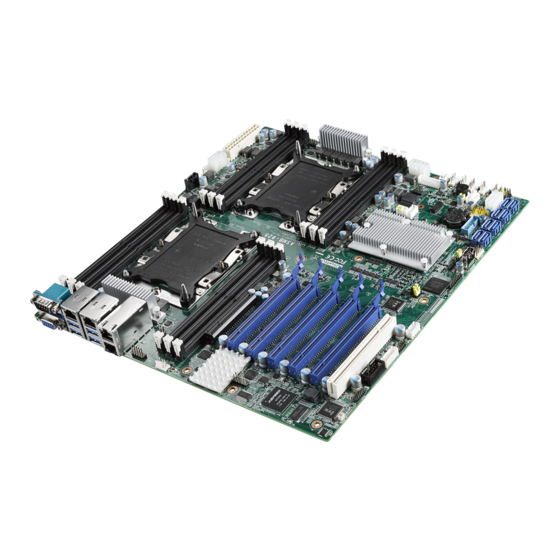

Advantech ASMB-935 Series User Manual

Dual lga3647-p0 intel xeon eatx server board with 24 ddr4, 5 x pcie x16 + 1 pcie x8, 10 sata3.0, 6 x usb3.0, dual 10gbe, ipmi
Hide thumbs Also See for ASMB-935 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
ASMB-935 Series
®
Dual LGA3647-P0 Intel Xeon
EATX Server Board with 24 DDR4,
5 x PCIe x16 + 1 PCIe x8,
10 SATA3.0, 6 x USB3.0,
Dual 10GbE, IPMI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASMB-935 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech ASMB-935 Series

Summary of Contents for Advantech ASMB-935 Series

  • Page 1 User Manual ASMB-935 Series ® Dual LGA3647-P0 Intel Xeon EATX Server Board with 24 DDR4, 5 x PCIe x16 + 1 PCIe x8, 10 SATA3.0, 6 x USB3.0, Dual 10GbE, IPMI...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech’s cus- tomer services.
  • Page 4 Initial Inspection Before installing motherboard, please make sure that the following materials have been shipped: 1 x ASMB-935 EATX motherboard  1 x ASMB-935 Startup Manual  1 x Driver CD  2 x Serial ATA HDD data cables  1 x I/O port bracket ...

  • Page 5: Table Of Contents

    Contents Chapter Overview..........1 Introduction ....................2 Features ....................2 Specifications .................... 3 Table 1.1: Specifications ............. 3 Board Layout, Jumpers and Connectors........... 5 Figure 1.1 Board Layout .............. 5 Figure 1.2 Rear I/O of Three SKU ..........6 Table 1.2: Onboard LAN LED Color Definition ......6 Table 1.3: O.................
  • Page 6 Chapter BIOS..........33 Introduction ..................... 34 BIOS Setup ..................... 35 3.2.1 Main Menu .................. 35 3.2.2 Advanced BIOS Features Setup..........36 3.2.3 Platform Configuration ..............55 3.2.4 Socket Configuration ..............65 3.2.5 Server Management ..............83 3.2.6 Security..................87 3.2.7 Boot ....................
  • Page 7 System & CPU Fan Power Connector (SYSFAN0~4, CPUFAN0~1) ... 109 Table B.7: CPU FAN Connector (CPUFAN0~1) ...... 109 Table B.8: SYS FAN Connector (SYSFAN0~4)....... 109 Power LED (JFP3) ................109 Table B.9: Power LED Connector (JFP1) ........ 109 External Speaker Connector (JFP2) ............. 110 Table B.10:External Speaker Connector (JFP2).......
  • Page 8 ASMB-935 User Manual viii...

  • Page 9: Chapter 1 Overview

    Chapter Overview...

  • Page 10: Introduction

    Introduction The ASMB-935 serverboard is the most advanced Intel Xeon Processor Scalable Family series board for server-grade IPC applications that require high-performance computing power & multi-expansion slots. This serverboard supports Intel Xeon Scal- able series processor and DDR4 ECC-REG 2133/2400/2666/2933 MHz memory up to 3TB.

  • Page 11: Specifications

    Specifications Table 1.1: Specifications Processor Dual Intel LGA3647 Xeon processor sockets  Supports Intel 1st and 2nd Gen Xeon Scalable family, up to  28 cores TDP of processor up to 205 W  System Memory DDR4 memory bus  24 memory slots ...
  • Page 12 Table 1.1: Specifications Expansion Slots 5 x PCIe x16 slot (Gen3 x16 link)  – PCIex16_slot1 (from CPU 1) – PCIex16_slot2 (from CPU 1) – PCIex16_slot3 (from CPU 0) PCI-express – PCIex16_slot5 (from CPU 1) – PCIex16_slot6 (from CPU 0) 1 x PCIe x8 slot (Gen3 x8 link) ...

  • Page 13: Board Layout, Jumpers And Connectors

    Board Layout, Jumpers and Connectors Connectors on the ASMB-935 are linked to external devices such as hard disk drives. In addition, ASMB-935 has a number of jumpers that are used to configure the system for specific applications. The tables below list the functions of each jumper and connector. Later sections in this chapter give instructions for setting jumpers.
  • Page 14 LAN1 COM1 LAN2 LAN3 (sharing LAN with BMC) ASMB-935T2-00A1 VGA1 USB12 USB34 LAN4 COM1 LAN1 LAN2 (sharing LAN with BMC) ASMB-935I-00A1 VGA1 USB12 USB34 Figure 1.2 Rear I/O of Three SKU Table 1.2: Onboard LAN LED Color Definition 10/100/1000 Mbps LAN Link/Activity LED Scheme LAN1 &...
  • Page 15 Table 1.4: Jumpers Label Function Default JCMOS1 CMOS Clear JME1 ME update JWDT1 Watch Dog Reset PSON1 AT(1-2)/ATX(2-3) JCASE1 Chassis case open alarm JTHR_SEL On board (1-2)/external thermistor (2-3) Keep CMOS data/ Clear CMOS data/ Disable ME update/ Enable ME update/ Table 1.5: Connectors Label Function...
  • Page 16 Table 1.5: Connectors RJ-45 LAN port 2 + USB 3.0 port LAN2_USB3_34 3/4 connector LANLED1 LAN LED extension connector LPC2 TPM connector M2_2280_1 M.2 2280 (PCIe & SATA signal) PCIEX16_SLOT1 PCIE x16 slot (CPU1) PCIEX16_SLOT2 PCIE x16 slot (CPU1) PCIEX16_SLOT3 PCIE x16 slot (CPU0) PCIEX8_SLOT4 PCIE x8 slot (CPU0)

  • Page 17: Block Diagram

    Block Diagram ECC DDR4 2133/2400/2666/2933* ECC DDR4 2133/2400/2666/2933* Channel 0 Channel 0 ECC DDR4 2133/2400/2666/2933* ECC DDR4 2133/2400/2666/2933* Channel 1 Channel 1 Intel LGA 3647-P0 Intel LGA 3647-P0 ECC DDR4 2133/2400/2666/2933* ECC DDR4 2133/2400/2666/2933* Channel 2 Channel 2 Xeon® Scalable Xeon®...

  • Page 18: Memory Installation

    Memory Installation Memory performance is affected by different DIMM configurations. To reach optimal memory interleaving, be sure to install identical DIMM types with the same size, speed, and number of ranks on those memory slots corresponding to the correct pro- cessor.
  • Page 19 Table 1.8: DIMM Configuration with Dual CPU DIMMH1 DIMMH2 DIMMI1 DIMMI2 DIMMJ1 DIMMJ2 DIMMK1 DIMMK2 DIMML1 DIMML2 Quantity of memory installed CPU0 & CPU1 13 DIMMA1 DIMMA2 DIMMB1 DIMMB2 DIMMC1 DIMMC2 DIMMD1 DIMMD2 DIMME1 DIMME2 DIMMF1 DIMMF2 DIMMG1 DIMMG2 DIMMH1 DIMMH2 DIMMI1 DIMMI2...

  • Page 20: Processor Installation

    Table 1.9: DCPMM Population Matrix Symmetric Population within CPU0 DIM- DIM- DIM- DIM- Modes DIMMF2 DIMMF1 DIMME2 DIMME1 DIMMB2 DIMMB1 DIMMA2 DIMMA1 DCPMM DRAM1 DRAM1 DCPMM DRAM1 DRAM1 DCPMM DRAM1 DRAM1 DCPMM DRAM1 DRAM1 AD+MM DCPMM DRAM3 DRAM3 DCPMM DRAM3 DRAM3 DCPMM DRAM1 DRAM1 DRAM1 DRAM1 DCPMM DRAM1...
  • Page 21 Insert CPU on CPU clip and align pin 1 mark, then latch both notch A and B on the CPU, and notch A and B on the CPU clip. Install the CPU clip assembly on the heatsink as a processor heatsink module. ASMB-935 User Manual...
  • Page 22 Place the processor heatsink module on the CPU0 socket on the motherboard and align the triangle mark printed on the motherboard. Tighten the screws in sequence 1-2-3-4 by using a T30 Torx screwdriver. If there is a second CPU to be installed, repeat steps 1 to 3. In step 3, the CPU clip should be placed in the opposite direction to CPU0.
  • Page 23 Place the processor heatsink module on the CPU1 socket on the motherboard and align the triangle mark printed on motherboard. Make sure air flow direc- tions of each CPU are the same and toward the rear I/O. Wrong air flow direc- tion will cause the system to work abnormally.
  • Page 24 ASMB-935 User Manual...

  • Page 25: Chapter 2 Connections

    Chapter Connections...

  • Page 26: Introduction

    Introduction You can access most of the connectors from the top of the board as it is being installed in the chassis. If you have a number of cards installed, you may need to par- tially remove a card to make all the connections. USB Ports and LAN Port (USB1~USB11,LAN1~LAN4) The USB ports comply with USB 2.0 &...

  • Page 27: Vga Connector (Vga1)

    VGA Connector (VGA1) The ASMB-935 includes a VGA interface that can drive conventional CRT and LCD displays. VGA1_COM1 VGA1 Serial Ports (COM1~2) The ASMB-935 offers one serial port on the rear plate and one 2.50mm onboard with 2 x 5-pin pitch. VGA1_COM1 COM2 COM1...

  • Page 28: Ps2 Keyboard And Mouse Connectors (Kbms1)

    PS2 Keyboard and Mouse Connectors (KBMS1) The 6-pin KBMS1 connector is for additional keyboard & mouse device usage. KBMS1 KBMS1 ASMB-935 User Manual...

  • Page 29: Cpu Fan Connector (Cpufan0~1)

    CPU Fan Connector (CPUFAN0~1) If a fan is used, this connector supports cooling fans that draw up to 1.5A (18W). CPUFAN1 CPUFAN0~1 CPUFAN0 System Fan Connector (SYSFAN0~4) SYSFAN4 SYSFAN0~4 SYSFAN2 SYSFAN3 SYSFAN1 SYSFAN0 ASMB-935 User Manual...

  • Page 30: Front Panel Connector (Jfp1, Jfp2, Jfp3)

    Front Panel Connector (JFP1, JFP2, JFP3) There are several external switches and LEDs to monitor and control ASMB-935. JFP1/2/3 2.8.1 Power LED (JFP3) JFP3 pin 1 and pin 3 are for the power LED. Refer to Appendix B for detailed infor- mation on the pin assignments.

  • Page 31: Hdd Led Connector (Jfp1 Pins 2 & 5)

    2.8.3 HDD LED Connector (JFP1 Pins 2 & 5) You can connect an LED to JFP1 to indicate when the HDD is active. 2.8.4 Reset Connector (JFP1 Pins 9 & 12) Many computer cases offer the convenience of a reset button. 9 12 Case Open (JCASE1) A Chassis Intrusion header is located at JCASE1 on the motherboard.

  • Page 32: Sata Sgpio (Sgpio1)

    2.10 SATA SGPIO (SGPIO1) SGPIO1 JCASE1 2.11 Front Panel LAN Indicator Connector (LANLED1) LANLED1 LANLED1 ASMB-935 User Manual...

  • Page 33: Sata And Ssata (Sata0~7, Ssata0~1)

    2.12 SATA and sSATA (SATA0~7, sSATA0~1) ASMB-935 features ten serial ATA III interfaces (up to 600 MB/s) which eases cabling to hard drives with thin and long cables. SSATA0 SATA0~7 SSATA1 sSATA0~1 SATA0 SATA1 SATA2 SATA3 SATA4 SATA5 SATA7 SATA6 2.13 M.2 Connector (M2_2280_1) The M.2 2280 connector supports both SATA and PCIe SSD devices.

  • Page 34: Pcie Expansion Slots

    2.14 PCIe Expansion Slots ASMB-935 provides six expansion slots that can support three double-deck cards. The riser card for 1U or 2U chassis can be used in slot-6 only. PCIEX16 PCIEX8 PCIEX16 PCIEX16 PCIEX16 PCIEX16 _Slot2 _Slot3 _Slot4 _Slot5 _Slot6 _Slot1 Slot Length Link...

  • Page 35: Auxiliary Power Connector (Atxpwr1/Atx12V1/Atx12V2)

    2.15 Auxiliary Power Connector (ATXPWR1/ ATX12V1/ATX12V2) ATX12V2 ATXPWR1 ATX12V1 Note! Please use a power supply of SSI type; minimum output should be at least 700W with 5Vsb @2.5A. ATXPWR1 & ATX12V1 & ATX12V2 should be all connected with power supply, otherwise ASMB-935 will not boot up normally. ASMB-935 User Manual...

  • Page 36: Hd Audio Interface Connector (Hdaud1)

    ASMB-935 has one audio connector for Advantech's audio board (P/N: PCA-AUDIO- HDB1E) installation. HDAUD1 HDAUD1 2.17 LPC Connector (LPC2) ASMB-935 has one LPC connector that can be used to install Advantech's TPM Module (P/N: PCA-TPM-00A1E, PCA-TPM-00B1E) for security management. LPC2 LPC2 ASMB-935 User Manual...

  • Page 37: Cmos Clear And Me Update Connector (Jcmos1, Jme1)

    2.18 CMOS Clear and ME Update Connector (JCMOS1, JME1) Setting jumper from pin 1-2 to pin 2-3, then back to pin 1-2 to reset CMOS data and enable ME update. JME1 JCMOS1 JME1 JCMOS1 2.19 PMBUS Connector (PMBUS1) PMBUS1 ASMB-935 User Manual...

  • Page 38: Front Panel Smbus Connector (Smbus1)

    2.20 Front Panel SMBUS Connector (SMBUS1) SMBUS1 SMBUS1 2.21 IPMI Module Connector (BMC_CN1) Enabling IPMI feature through BMC_CN1 and BMC_CN2. The BMC Module has already been pre-installed on ASMB-935I and ASMB-935T2 sku. BMC_CN2 BMC_CN1 BMC_CN1 ASMB-935 User Manual...

  • Page 39: Volt1 Connector (Volt1)

    2.22 VOLT1 Connector (VOLT1) VOLT1 connects to the alarm board on the Advantech chassis. These alarm boards give warnings if a power supply or fan fails, if the chassis overheats, or if the back- plane malfunctions. VOLT1 VOLT1 2.23 GPIO Connector (GPIO1)

  • Page 40: Intel Virtual Raid (Vroc1)

    2.24 Intel Virtual RAID (VROC1) Intel VROC license key of VMD allows NVMe SSDs to connect via PCIe and directly manages the CPU for better RAID performance. Enable NVMe SSD RAID, hot-plug and LED management features via VROC connector. VROC1 VROC1 2.25 NVMe RAID LED Control (PEHP1)

  • Page 41: Ami Bios

    Chapter AMI BIOS...

  • Page 42: Introduction

    Introduction With the AMI BIOS Setup program, you can modify BIOS settings and control the special features of your computer. The Setup program uses a number of menus for making changes and turning the special features on or off. This chapter describes the basic navigation of the ASMB-935 setup screens.

  • Page 43: Bios Setup

    BIOS Setup 3.2.1 Main Menu Press <Del> during bootup to enter AMI BIOS CMOS Setup Utility; the Main Menu will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. The Main BIOS setup screen has two main frames.

  • Page 44: Advanced Bios Features Setup

    3.2.2 Advanced BIOS Features Setup Select the Advanced tab from the ASMB-935 setup screen to enter the Advanced BIOS setup screen. You can select any of the items in the left frame of the screen, such as CPU configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 45 3.2.2.1 Intel Virtual RAID on CPU 3.2.2.2 Driver Health ASMB-935 User Manual...
  • Page 46 3.2.2.3 Trusted Computing Security Device Support  Enables or disables BIOS support for security devices. Note! Purchase Advantech’s LPC TPM module to enable TPM function. P/N: PCA-TPM-00A1E or PCA-TPM-00B1E. ASMB-935 User Manual...
  • Page 47 3.2.2.4 ACPI Settings Enable Hibernation  Enable or disable hibernation feature. Lock Legacy Resources  Enable or disable lock legacy resources feature. PowerOn By Modem  Enable or disable power on by modem feature. ASMB-935 User Manual...
  • Page 48 3.2.2.5 IT8528 EC Super IO Configuration Serial Port 1 Configuration  – Serial Port Enable or disable serial port 1. – Change Settings To select an optimal setting for serial port 1. ASMB-935 User Manual...
  • Page 49 Serial Port 2 Configuration  – Serial Port Enable or disable serial Port 2. – Change Settings To select an optimal setting for serial port 2. ASMB-935 User Manual...
  • Page 50 3.2.2.6 IT8528 HW Monitor Watchdog Timer  Enable or disable the watchdog timer function. CPU ACPI Shutdown Temperature  Enable or disable the ACPI shutdown temperature threshold. When the system reaches the shutdown temperature, it will be automatically shut down by ACPI OS to protect the system from overheat damage.
  • Page 51 3.2.2.7 Serial Port Console Redirection ASMB-935 User Manual...
  • Page 52 COM1 Console Redirection Settings  – Terminal Type Select a terminal type to be used for console redirection. Options available: VT100/VT100+/ANSI/VT-UTF8. – Bits Per Second Select the baud rate for console redirection. ASMB-935 User Manual...
  • Page 53 Options available: 9600/19200/57600/115200. – Data Bits – Parity A parity bit can be sent with the data bits to detect some transmission errors. Even: parity bit is 0 if the number of 1's in the data bits is even. Odd: parity bit is 0 if number of 1's the data bits is odd. Mark: parity bit is always 1.
  • Page 54 Legacy Console Redirection Settings  Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages. Console Redirection Settings  – Out-of-Band Mgmt Port ASMB-935 User Manual...
  • Page 55 To select the com port user would like to set for having console redirection feature. – Terminal Type Set as "VT100", "VT100+", "VT-UTF8", or "ANSI". "VT-UTF8" is the default setting. – Bits Per Second To select serial port transmission. Speed must be matched on the other side. It can be set as "9600", "19200", "57600", or "115200".
  • Page 56 3.2.2.9 UEFI Network Stack Configuration Enable or disable UEFI network stack function. ASMB-935 User Manual...
  • Page 57 3.2.2.10 CSM Configuration CSM Support  Enable or disable UEFI CSM (Compatibility Support Module) to support a leg- acy PC boot process. GateA20 Active  This items is useful when RT code is executed above 1MB. When it's set as "Upon Request", GA20 can be disabled using BIOS services.
  • Page 58 Option ROM Messages  To "Force BIOS or keep current" to set the display mode for Option ROM. Boot option filter  Change UEFI/legacy ROM priority for boot option. ASMB-935 User Manual...
  • Page 59 Network  Control the execution of UEFI and legacy PXE OpROM. Storage  Control the execution of UEFI and legacy storage OpROM. ASMB-935 User Manual...
  • Page 60 3.2.2.11 NVMe Configuration Setup NVMe device options. 3.2.2.12 USB Configuration ASMB-935 User Manual...
  • Page 61 Legacy USB Support  This is for supporting USB device under a legacy OS such as DOS. When choosing "Auto", the system will automatically detect if any USB device is plugged into the computer and enable USB legacy mode when a USB device is plugged, or disable USB legacy mode when no USB device is attached.
  • Page 62 Device Reset Time-out  Selects the USB device reset time-out value. [10,20,30,40 sec] Device Power-up Delay  This item appears only when Device power-up delay item is set to [manual]. ASMB-935 User Manual...

  • Page 63: Platform Configuration

    Mass Storage Devices  Default is "Auto" to enumerate mass storage devices according to media format. 3.2.3 Platform Configuration ASMB-935 User Manual...
  • Page 64 3.2.3.1 PCH Configuration PCH Devices  This item is to set up IO controller hub devices. – SMBus Controller Enable or disable SMBus controller. ASMB-935 User Manual...
  • Page 65 – Restore AC Power Loss Specify what state to go to when power is re-applied after a power failure (G3 state). ASMB-935 User Manual...
  • Page 66 – PCH CRID Enable or disable PCH compatibility revision ID (CRID) functionality. – Case Open Warning Enable or disable the chassis intrusion monitoring function. When enabled and the case is opened, the warning message will show in POST screen. ASMB-935 User Manual...
  • Page 67 – Azalia Enable or disable Azalia device. – VGA Priority Determines priority between onboard and 1st off-board video device found. ASMB-935 User Manual...
  • Page 68 – RTC Wake system from S4/S5 Enable or disable system wake on alarm event. PCH SATA Configuration  ASMB-935 User Manual...
  • Page 69 – SATA Controller Enable or disable SATA devices. – Configure SATA as Set as AHCI or RAID when SATA Controllers are enabled. – Support ALPM Enable or disable Aggressive Link Power Management (ALPM) protocol for Advanced Host Controller Interface-compliant (AHCI) Serial ATA (SATA) devices.
  • Page 70 PCH sSATA/M.2 Configuration  – sSATA/M.2 Controller Enable or disable sSATA/M.2 devices. – Configure sSATA as Set as AHCI or RAID when SATA Controllers are enabled. – Support ALPM Enable or disable Aggressive Link Power Management (ALPM) protocol for Advanced Host Controller Interface-compliant (AHCI) Serial ATA (SATA) devices.
  • Page 71 – PCIe Speed Configure PCI Express speed. ASMB-935 User Manual...
  • Page 72 Networking  – LAN1 Controller Enable or disable Intel I210 controller support. – LAN1 PXE OpROM Enable or disable Boot option for Intel I210 controller. – LAN2 Controller Enable or disable Intel I210 controller support. – LAN2 PXE OpROM Enable or disable Boot option for Intel I210 controller. –...

  • Page 73: Socket Configuration

    3.2.3.2 Server ME Configuration This page shows the Server ME configuration information. 3.2.4 Socket Configuration ASMB-935 User Manual...
  • Page 74 3.2.4.1 Processor Configuration Per-Socket Configuration  Use this to select how many processor cores you want to activate when you are using a dual or quad core processor. Hyper-threading [All]  Enable or disable Intel Hyper Threading technology. ASMB-935 User Manual...
  • Page 75 Execute Disable Bit  Enable or disable the Execute Disable Bit feature. The Optimal and Fail-Safe default setting is Enabled. If Disabled is selected, the BIOS forces the XD fea- ture flag to always return to 0.  Enable or disable Intel Virtual Machine Extensions (VMX) for IA-32 processors ®...
  • Page 76 3.2.4.2 UPI Configuration UPI Status  Display information of Intel UltraPath Interconnect (UPI). ASMB-935 User Manual...
  • Page 77 Link Speed Mode  Select the QPI link speed as either the Fast mode or Slow mode. ASMB-935 User Manual...
  • Page 78 Link Frequency Select  Allows for selecting the QPI Link frequency. Link L0p Enable  Enable or disable QPI Link0p. ASMB-935 User Manual...
  • Page 79 Link L1 Enable  Enable or disable QPI Link1. 3.2.4.3 Memory Configuration Numa  Enable or disable non uniform memory access (NUMA). Memory Technology  Display memory topology with DIMM population information. ASMB-935 User Manual...
  • Page 80 3.2.4.4 IIO Configuration Socket0 PCIe Configuration  PCIe port bifurcation control and select target link speed as Gen1, Gen2, Gen3. ASMB-935 User Manual...
  • Page 81 ASMB-935 User Manual...
  • Page 82 Socket1 PCIe Configuration  PCIe port bifurcation control and select target link speed as Gen1, Gen2, Gen3. ASMB-935 User Manual...
  • Page 83 Intel VT for Directed I/O (VT-d)  Enable or disable Intel Virtualization Technology for Directed I/O. Intel VMD technology  Enable or disable Intel Volume Management Device Technology. ASMB-935 User Manual...
  • Page 84 PCIe Hot Plug  Enable or disable PCIe hot plug globally. ASMB-935 User Manual...
  • Page 85 PCI-E ASPM Support (Global)  Sets the ASPM level to disable, per port or L1 state only. 3.2.4.5 Advanced Power Management Configuration ASMB-935 User Manual...
  • Page 86 CPU P State Control  ASMB-935 User Manual...
  • Page 87 ASMB-935 User Manual...
  • Page 88 CPU C State Control  ASMB-935 User Manual...
  • Page 89 ASMB-935 User Manual...
  • Page 90 Package C State Control  Memory Power & Thermal Configuration  ASMB-935 User Manual...

  • Page 91: Server Management

    3.2.5 Server Management BMC Support  Enable or disable interfaces to communicate with BMC. Wait for BMC  If enabled, motherboard will wait 30 ~ 60 seconds until BMC module boots up completely. After that, the normal BIOS post screen will be displayed. If disabled, motherboard will not wait for BMC module's response.
  • Page 92 3.2.5.1 System Event Log SEL Components  Enable or disable all features of system event logging during boot. Erase SEL  Choose options for erasing SEL. When SEL is Full  Choose options for reactions to a full SEL. Log EFI Status Codes ...
  • Page 93 3.2.5.2 BMC Self Test Log Erase Log  Erase log options. When Log is Full  Select the action to be taken when log is full. ASMB-935 User Manual...
  • Page 94 3.2.5.3 BMC Network Configuration Configuration Address Source  Select to configure LAN channel parameters statically or dynamically (by BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. ASMB-935 User Manual...

  • Page 95: Security

    3.2.6 Security ASMB-935 User Manual...
  • Page 96 Note! With AC power & Battery. Short CMOS1 Jumper: Date/Time & Password: Keep Setting: reset to default AC power and CMOS battery are removed. Short CMOS1 Jumper: Date/Time: reset to default Password: Keep Setting: reset to default ASMB-935 User Manual...

  • Page 97: Boot

    3.2.7 Boot Setup Prompt Timeout  Number of seconds to wait for setup activation key. Bootup NumLock State  Select the keyboard NumLock state as "On" or "Off". Quiet Boot  Enable or disable quiet boot option. Boot Option Priorities ...

  • Page 98: Save & Exit

    3.2.8 Save & Exit Save Changes and Exit  Exit system setup after saving the changes. Discard Changes and Exit  Exit system setup without saving any changes. Save Changes and Reset  Reset the system after saving changes. Discard Changes and Reset ...

  • Page 99: Chipset Software Installation Utility

    Chapter Chipset Software Installation Utility...

  • Page 100: Before Beginning

    Before Beginning To facilitate the installation of the enhanced display drivers and utility software, read the instructions in this chapter carefully. The drivers for the ASMB-935 are located on the software installation CD. Before beginning, it is important to note that most display drivers need to have the relevant software application already installed on the system prior to installing the enhanced display drivers.

  • Page 101: Windows Series Driver Setup

    Windows Series Driver Setup Insert the driver CD into your system's CD-ROM drive. When the folder is displayed, click "Chipset". Find the executable file in this folder, click to install the driver. ASMB-935 User Manual...
  • Page 102 ASMB-935 User Manual...

  • Page 103: Graphic Setup

    Chapter Graphic Setup...

  • Page 104: Introduction

    Introduction Install the ASPEED VGA driver to enable this function, which includes the following features: 32-bit 2D graphics engine on board for normal use.  64 MB RAM for this chip, the highest resolution is 1920x1200.  Windows Series Driver Setup Insert the driver CD into your system's CD-ROM drive.

  • Page 105: Lan, Usb 3.0 And Rste Raid

    Chapter LAN, USB 3.0 and RSTe RAID...

  • Page 106: Lan Configuration

    LAN Configuration 6.1.1 Introduction ASMB-935 serverboard features two Gigabit Ethernet LAN connections via dedi- ® ® cated PCI Express x1 lanes: GbE LAN1 (Intel I210) and GbE LAN2 (Intel I210), ® and two 10GbE LAN3 and LAN4 (Intel X557 PHY). These connections eliminate bottlenecks of network data and incorporate Gigabit Ethernet at 10 Gbps.

  • Page 107: Usb 3.0

    USB 3.0 6.2.1 Introduction ASMB-935 offers six USB 3.0 ports, four in rear side and two via onboard headers. USB 3.0 provides up to 5Gbps bandwidth to shorten data transmission times. 6.2.2 Windows Series Driver Setup Insert the driver CD into your system's CD-ROM drive. Select folder "USB" then click the Setup.exe file for the installation.
  • Page 108 ASMB-935 User Manual...

  • Page 109: Programming The Watchdog Timer101

    Appendix Programming the Watchdog Timer...

  • Page 110: Watchdog Timer Overview

    The ASMB-935’s watchdog timer can be used to monitor system software operation and take corrective action if the software fails to function within the programmed period. This section describes the operation of the watchdog timer and how to pro- gram it. Watchdog Timer Overview The watchdog timer is built in to the EC controller IT8528E.
  • Page 111 Write 0x57 to 0x299 port Watchdog Event Wait IBF clear 0x29A, BIT1, = 0 Write 0x04 to 0x299 port (Warm) Reset event Wait IBF clear 0x29A, BIT1, = 0 Write 0x28 to 0x29A Start watchdog Wait 1 ~ 9 Wait IBF clear 0x29A, BIT1, = 0 Write 0x29 to 0x29A Stop watchdog...
  • Page 112 ASMB-935 User Manual...

  • Page 113: Appendix B I/O Pin Assignments

    Appendix I/O Pin Assignments...

  • Page 114: Usb2.0 Header (Usb2_78, Usb2_910)

    USB2.0 Header (USB2_78, USB2_910) Table B.1: USB Header (USB2_78, USB2_910) Signal Signal USB_VCC5 USB_VCC5 USB_D- USB_D- USB_D+ USB_D+ USB3.0 Header (USB3_56) Table B.2: USB Header (USB5_6, USB7_8) Signal Signal +5 V STDA_SSRX- STDA_SSRX+ STDA_SSRX-TX- STDA_SSRX+TX+ STDA_SSRX+TX+ STDA_SSRX-TX- STDA_SSRX+ STDA_SSRX- +5 V ASMB-935 User Manual...

  • Page 115: Vga Connector (Vga1)

    VGA Connector (VGA1) Table B.3: VGA Connector (VGA1) Signal Signal GREEN BLUE H-SYNC V-SYNC RS-232 Interface (COM1) Table B.4: RS-232 Connector (COM1) Signal ASMB-935 User Manual...

  • Page 116: Interface (Com2)

    RS-232 Interface (COM2) Table B.5: RS-232 Connector (COM2) Signal External Keyboard Connector (KBMS2) Table B.6: External Keyboard Connector (KBMS2) Signal KB CLK KB DATA MS DATA MS CLK ASMB-935 User Manual...
  • Page 117 System & CPU Fan Power Connector (SYSFAN0~4, CPUFAN0~1) Table B.7: CPU FAN Connector (CPUFAN0~1) CPUFAN0 CPUFAN1 +12V +12V CPU_TACH CPU_TACH CPU0_PWM CPU1_PWM Table B.8: SYS FAN Connector (SYSFAN0~4) SYS FAN0 SYS FAN1 SYS FAN2 SYSFAN3 SYSFAN4 +12V +12V +12V +12V +12V FAN0_TACH FAN1_TACH...
  • Page 118 External Speaker Connector (JFP2) 1 4 7 10 Table B.10: External Speaker Connector (JFP2) Function SPK+ SPK- B.10 Reset Connector (JFP1) 9 12 Table B.11: Reset Connector (JFP1) Signal RESET B.11 HDD LED Connector (JFP1) Table B.12: HDD LED Connector (JFP1) Signal HDD_LED+ HDD_LED-...
  • Page 119 B.12 ATX Soft Power Switch (JFP1) Table B.13: ATX Soft Power Switch (JFP1) Signal PWR-BTN B.13 SMBus Connector (SMBUS1) Table B.14: Front panel SMBus Connector (SMBUS1) Signal +3.3V_AUX SMB_SCL_FRU SMB_SDA_FRU B.14 USB & LAN Ports (LAN1_USB3_12, LAN2_USB3_34) Table B.15: USB Port Signal Signal VCC_DUAL...
  • Page 120 Table B.16: Giga LAN 10/100/1000 Base-T RJ-45 Port Signal Signal MID0+ MID2+ MID0- MID2- MID1+ MID3+ MID1- MID3- B.15 Audio Connector (HDAUD1) Table B.17: Front Panel Audio Connector (HDAUD1) Signal Signal +V5_AUDIO ACZ_SYNC ACZ_BITCLK ACZ_SDOUT ACZ_SDIN0 ACZ_SDIN1 ACZ_RST# ACZ_12V B.16 Alarm Board Connector (VOLT1) Table B.18: Alarm Board Connector (VOLT1) Signal...
  • Page 121 B.17 Case Open Connector (JCASE1) Table B.19: Case Open Connector (JFP1) Signal CASEOP B.18 Front Panel LAN LED Connector (LANLED1) LANLED1 Table B.20: LAN LED Connector (LANLED1) Signal Signal LAN1_ACT# LAN2_ACT# +3V3_LAN1LED +3V3_LEN2LED LAN3_ACT# LAN4_ACT# +3V3_LAN3LED +3V3_LEN4LED B.19 SATA SGPIO Connector (SGPIO1) Table B.21: SATA SGPIO Connector (SGPIO1) Signal SCLOCK_PCH...
  • Page 122 B.20 LPC Connector (LPC2) Table B.22: LPC Connector (LPC2) Signal Signal CLK_33M_TPM LPC_AD1 PLTRST_LPC LPC_AD0 LPC_FRAME +3.3V LPC_AD3 LPC_AD2 SMB_SCL_LPC SERIRQ_PCH SMB_SDA_LPC +5V_AUX B.21 Clear CMOS Connector (JCMOS1, JME1) Table B.23: Clear CMOS Connector (JCMOS1, JME1) Signal Signal JCMOS1 JME1 RTC_RST_PCH HDA_SDOUT_PCH +3.3V...
  • Page 123 B.22 PMBUS Connector (PMBUS1) PMBUS1 Table B.24: PMBUS Connector (PMBUS1) Signal SMB_SCL_PM SMB_SDA_PM SMB_ALT_PM +3.3V B.23 GPIO Connector (GPIO1) Table B.25: GPIO Connector (GPIO1) Signal Signal SIO_GPIO0 SIO_GPIO4 SIO_GPIO1 SIO_GPIO5 SIO_GPIO2 SIO_GPIO6 SIO_GPIO3 SIO_GPIO7 VCC_GPIO0 ASMB-935 User Manual...
  • Page 124 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2022...
