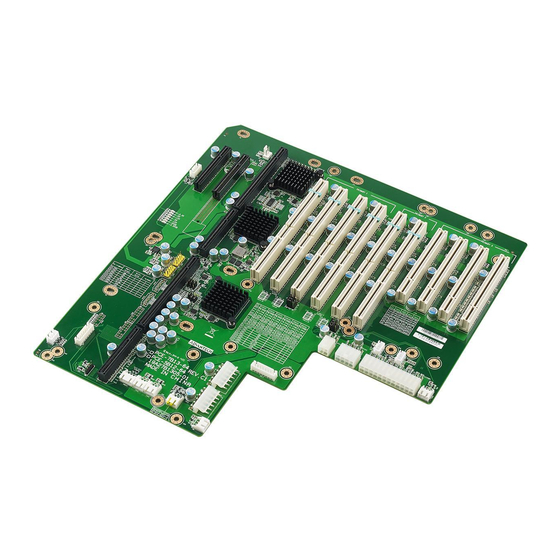

PCE-5B12(7B13)-07 Backplane: 12(13)-slot BP for 14-Slot
Chassis, 1 PICMIG 1.3, 4(5) PCIe, 7 32-bit/33-MHz PCI
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following materials have been shipped:
• One 2 Ports USB Cable
• PCE-5B12(7B13)-07 Startup Manual
• M4*6*0.7 Round Screws (20 pieces)
• 2-year quality warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the PCE-5B12-07A1E(PCE-7B13-
07A1E) series.
Part No. 200K5B1211
Printed in China
P/N: 1700002204
P/N: 1939000410
P/N: 2190000902
2nd Edition,
August 2012
Specifications
Standard functions
• PICMG 1.3 Slot:
PCE-5B12-07 supports PCE-5XXX CPU Cards
PCE-7B13-07 supports PCE-7XXX CPU Cards
• PCIe Slots:
PCE-5B12-07: 1 PCIe x16, 3 PCIe x4
PCE-7B13-07: 2 PCIe x8, 3 PCIe x4
• 32-bit PCI Slots:
PCE-5B12-07: 7 32-bit/33-MHz PCI
PCE-7B13-07: 7 32-bit/33-MHz PCI
• USB (2.0) support: Four Universal Serial Bus ports to
Backplane
Note:
Some add-on cards installed on this backplane
may cause CPU card BIOS resource allocation
problems, if this occurs please contact Advan-
tech technical support staff for help in solving the
problems.
Mechanical and Environment
• Dimensions: 327.66 x 315.45 mm
• Power supply voltage: +12 V, +5 V, -12 V, -5 V, +5 V
SBY, +3.3 V
• Power requirements: Depends on the CPU board, addon
card & peripherals
• Operating temperature: 0 ~ 60° C
PCE-5B12(7B13)-07 Startup Manual 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCE-5B12-07 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech PCE-5B12-07

  • Page 1 • PCE-5B12(7B13)-07 Startup Manual • PCIe Slots: • M4*6*0.7 Round Screws (20 pieces) P/N: 1939000410 PCE-5B12-07: 1 PCIe x16, 3 PCIe x4 • 2-year quality warranty card P/N: 2190000902 PCE-7B13-07: 2 PCIe x8, 3 PCIe x4 • 32-bit PCI Slots:...
  • Page 2: Connectors And Jumpers

    EATXPWER1 Connectors and Jumpers Name 3.3 V This table shows the function of each jumper and connector: 3.3 V Connectors Label Function PICMG1.3 CPU board slot SHBA1~SHBD1 PCIe x 16 slot (Only on PCE- PPCIE2 5B12-07) PCIe x8 slots (Only on PCE- PPCIE1, PPCIE2 7B13-07) Power OK...
  • Page 3 FANDEC1 EATX12V1 Name Name FANIO1 FANIO2 FANIO3 FANIO4 FANIO5 12 V FANIO6 12 V FANIO7 12 V 12 V SMBUS1~SMBUS3 PWR3V1 & PWR3V2 Name Name 3.3V C-SMBBUS 3.3V C-SMBDAT 3.3V IPMB1 Name IPMB_CLK VOLT1 IPMB_DAT Name 5 V SBY USB12 Name USBV0 -5 V...
  • Page 4 USB34 PSON1: ATX / AT Mode Selection Name Setting Function USBV2 AT Mode USBV2 2-3* ATX Mode * Default USBD2- USBD3- USBD2+ USBD3+ JFP1 Name Null PWRBTN RESET# 4 PCE-5B12(7B13)-07 Startup Manual...
  • Page 5: Board Layout

    1. Some add-on cards installed on this backplane may cause CPU card BIOS resource allocation problems, if this occurs please contact Advantech technical support staff for help in solving the problems. 2. In this backplane’s default configuration, FANDEC1, SMBUS1~SMBUS3, IPMB1 pin-headers are NOT populated, those footprints are reserved for customization.
  • Page 6 Board Dimensions Board Diagram Figure 2: Board Dimensions 6 PCE-5B12(7B13)-07 Startup Manual...
  • Page 7: Board Diagram

    Board Diagram PCIe Packet Switch USB X4 SATA X2 PCI to PCI 32-bit/33MHz P2PCI Bridge IPMB X1 32-bit/33MHz P1PCI Figure 3: Board Diagram PCE-5B12(7B13)-07 Startup Manual 7...
  • Page 8: Pci Routing Table

    PCI Routing Table PCI 32-bit from ICH PCI Slot PPCI1 PPCI2 PPCI3 IDSEL AD31 AD30 AD29 INTA INTB INTC INTD PCI Interrupt Pin Route INTB INTC INTD INTA INTC INTD INTA INTB INTD INTA INTB INTC PCI 32-bit from Switch PCI Slot P2PCI1 P2PCI2...
  • Page 9: Packing List

    • Operating temperature: 0 ~ 60°C USB12 Two USB port pin header • Weight: 0.6kg (weight of board) USB34 Two USB port pin header Jumpers For more information on this and other Advantech prod- ucts, please visit our website at: Part Function Reference http://www.advantech.com JP1VIO1 Primary 1 PCI-X Bus VIO voltage selection http://www.advantech.com/eplatform...
  • Page 10 Board Layout PPCIE1 SHBA1 P1PCIX1 P1PCIX3 P2PCIX1 PPCI1 PPCI3 PPCIE2 P1PCIX2 P1PCIX4 P2PCIX2 PPCI2 PPCI4 FAN7 SMBUS2 D146,D147,D148,D149 FAN5 FAN6 D182,D184,D183,D185 USB12 USB34 JM66ENB1 JP1VIO1 JP2VIO1 JPCIXCAPB1 EATXPWR1 FAN4 ATX12V1 JM66ENA1 EATX12V1 JSEL100A1 JPCIXCAPA1 VOLT1 PWR3V1 FANDEC1 PWR3V2 IPMB1 Fan3 JFP1 SMBUS1 FAN2...
  • Page 11: Connector Pin Definitions

    Connector Pin Definitions EATXPWER1 PWR3V1 Name Name 3.3V 3.3V 3.3V 3.3V 3.3V Power OK 5VSBY PWR3V2 Name 3.3V 3.3V 3.3V 3.3V 3.3V -12V PSON# VOLT1 Name 5VSBY 3.3V ATX12V1 -12V Name FAN1 - FAN7 Name EATX12V1 FANIO1~FANIO7 Name FANDEC1 Name FANIO1 FANIO2 FANIO3...
  • Page 12 3. Connector Pin Definitions (cont.) SMBUS1 ~ SMBUS3 JP1VIO1 Name Name C-SMBBUS C-SMBDAT PB_VIO PB_VIO PB_VIO 3.3V KBMS1 ~ KBMS2 3.3V Name 3.3V KBCLK KBDAT MSDAT JP2VIO1 Name MS_CLK PA_VIO IPMB1 PA_VIO Name PA_VIO IPMB_CLK 3.3V IPMB_DAT 3.3V 3.3V USB12 Name USBV0 USBV0...
  • Page 13 4. PCI Routing Tables Primary 1 PCI-X 64-bit PCI Slot P1PCIX1 P1PCIX2 P1PCIX3 P1PCIX4 IDSEL AD28 AD29 AD30 AD31 PCI-X Interrupt INTA PB_INTA PB_INTB PB_INTC PB_INTD Pin Route INTB PB_INTB PB_INTC PB_INTD PB_INTA INTC PB_INTC PB_INTD PB_INTA PB_INTB INTD PB_INTD PB_INTA PB_INTB PB_INTC...
  • Page 14: Jumper Settings

    5. Jumper Settings PCI-X Primary 1 JP2VIO1: Primary 2 PCI-X Bus VIO voltage selection Jumper Setting Bus Rate & Mode JPCIXCAPB1 JM66ENB1 PCI 33MHz 3.3V (default) PCI 66MHz PCIX 66MHz PCI-X Primary 2 Bus Rate & JPCIXCAPA1 JSEL100A1 JM66ENA1 Mode PCI 33MHz PCI 66MHz PCIX 66MHz...
  • Page 15 6. Board Diagram PCE-7B13-64C1E(PCE-5B12-64C1E) Startup Manual...
  • Page 16: Board Dimensions

    7. Board Dimensions 10.16 [0.400] 0.00 [0.000] 0.00 [0.000] 9.15 [0.360] 22.86 [0.900] 31.12 [1.225] 31.12 [1.225] 35.18 [1.385] 154.94 [6.100] 155.00 [6.102] 160.65 [6.325] 160.65 [6.325] 194.84 [7.671] 227.33 [8.950] 243.50 [9.587] 250.19 [9.850] 304.80 [12.000] 312.42 [12.300] 317.50 [12.500] Board Dimensions (mm) PCE-7B13-64C1E(PCE-5B12-64C1E) Startup Manual...
