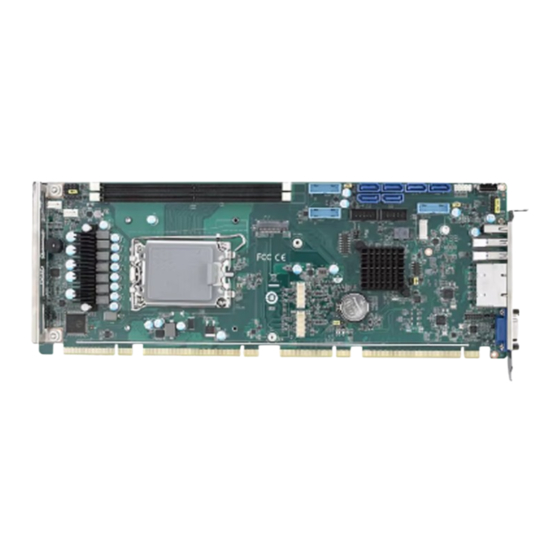

PCE-5133/5033 - LGA1700 Intel

Pentium

ECC/non-ECC PICMG 1.3 Single Host

Board with DDR5/M.2 (2280)/Dual 2.5GbE LAN

Startup Manual

Packing List

Before you begin installing your card, please make sure that

the following items have been shipped:

1. PCE-5133/5033 PICMG 1.3 single host board

2. PCE-5133/5033 startup manual P/N: 2041513300

3. Serial ATA HDD data cables

4. COM cable with bracket

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1:

For detailed contents of PCE-5133/5033, please

refer to user manual on the Advantech Website.

Note 2: Acrobat Reader is required to view any PDF file.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

For more information on this and other Advantech prod-

ucts, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website at:

https://advt.ch/PCE-5133G2

https://advt.ch/PCE-5033G2

extra warranty for Free at:

http://www.register.advantech.com

This manual is for the PCE-5133/5033

Part No. 2041513300

Printed in China

P/N: 1700003194

P/N: 1701090401

1st Edition

January 2023

Core

Specifications

General

• LGA1700 12th Intel

Core™ i9/i7/i5/i3/Pentium

• BIOS: AMI 256 Mb SPI BIOS

• Chipset:

- PCE-5133: Intel R680E

- PCE-5033: Intel H610E

• System memory:

- PCE-5133: Supports dual channel DDR5 4800

32GB per DIMM with ECC/non-ECC; Max. capacity is

up to 64GB

- PCE-5033: Supports dual channel DDR5 4800 32GB

per DIMM without ECC; Max. capacity is up to 64GB

Note:

Please select Intel ECC supported processor to

enable ECC function.

Warning: Power must be turned off before plugging/un-

plugging memory stick to avoid system crash or

damage of memory stick.

• SATA Ports:

- PCE-5133: 6 x SATA3.0 ports with SW Raid 0,1,5,10.

- PCE-5033: 4 x SATA3.0 ports without Raid function.

• M.2 Ports:

- PCE-5133: M.2 2280 type M module and compatible to

PCI Express 4.0

• Serial ports: 2 x RS-232 with pin headers

• Watchdog timer: 255 level timer intervals

• USB 2.0:

- PCE-5133/5033: 6*USB2.0 (USB Type A*1+Rear*1, 4

on backplane)

• USB 3.2:

- PCE-5133: 6*USB3.2 (Gen1) (Pin-header*6), 2*USB3.2

(Gen2) (type A, Rear I/O)

- PCE-5033: 2*USB3.2 (Gen1) (Pin-header*2), 2*USB3.2

(Gen1) (type A, Rear I/O)

• GPIO: One programmable 8-bit GPIO pin-header

• DP1 & DP2: DVI/Displayport/HDMI via optional cable

VGA Interface

• Chipset: Intel

UHD Graphics

• Shared system memory is subject to OS

Ethernet Interface

• Chipset supports:

- LAN 1: I225LM(PCE-5133); I226V(PCE-5033)

- LAN 2: I225LM(PCE-5133); I226V(PCE-5033)

• Connection: 2 x on-board RJ-45 connectors with LED

indicators.

Note: Power must be turned off before installing/unin-

stalling any expansion modules.

PCE-5133/5033 Startup Manual 1

i9/i7/i5/i3/

Need help?

Do you have a question about the PCE-5133 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech PCE-5133

Page 1 Adobe) damage of memory stick. • SATA Ports: - PCE-5133: 6 x SATA3.0 ports with SW Raid 0,1,5,10. - PCE-5033: 4 x SATA3.0 ports without Raid function. • M.2 Ports: - PCE-5133: M.2 2280 type M module and compatible to PCI Express 4.0...
Page 2 M.2 key 2280 with PCIe Gen. 4 JCMOS1/JME1: Clear CMOS/ME data SATA0 &1 Port 0 & 1 (PCE-5133) Closed Pins Result SATA4~7 SATA port 4, 5, 6, 7 (PCE-5133/5033) Keep CMOS/Enable ME data (Default) Clear CMOS/Disable ME data 2 PCE-5133/5033 Startup Manual...
Page 3 USB +5 V power Watchdog timer disable (2-4) *Watchdog timer reset (4-6) Software Installation OBS beep (8-10) OBS beep (8-10) The drivers for the PCE-5133/5033 are located on the JESPI1+JESPI2: eSPI-interface COM module setting Advatech official websites. Please visit the official website for downloading. Closed Pins Result https://support.advantech.com/support/new_default.aspx...
Page 4 *PCE-5033 supports 4 SATA ports (SATA4~7) and one internal USB3.2 pin-header. *PCE-5033 does not feature NGFF(M.2). JUSB2 JWDT1 & JOBS1 JFP1 & JFP2 JUSB1 GPIO1 JME1 JCMOS1 JFV1 JFP3 ESPI1 JCASE1 JESPI1 & 2 Figure 2: Board Layout - Jumpers and Connector Locations 4 PCE-5133/5033 Startup Manual...
