Shining 3D EXScan H User Manual page 77

Exact Movement

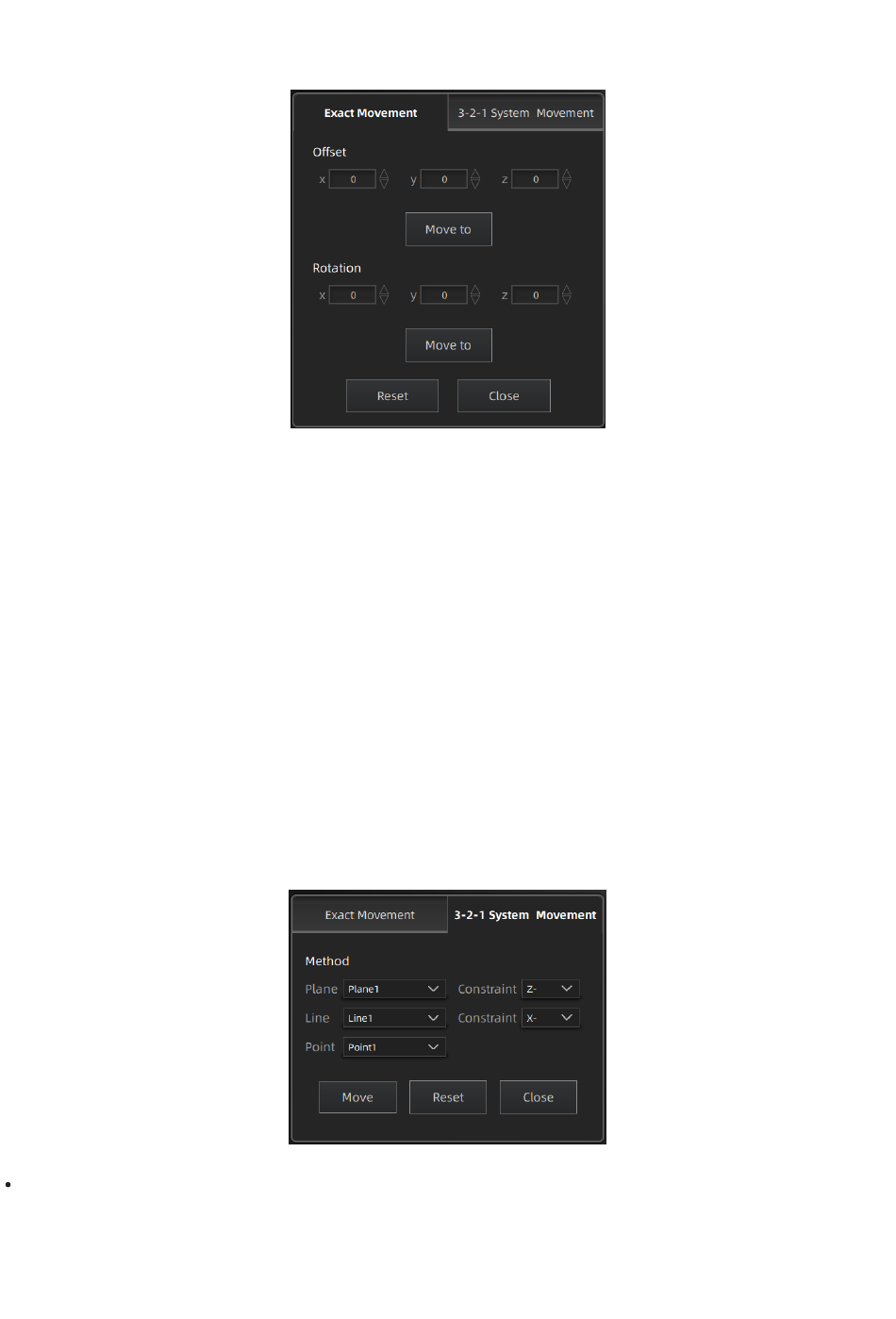

Click "Move to" to align the model center with the input coordinates, and the axis direction is adjusted to match the
input rotation angle.
The coordinate system displayed on the interface is the global coordinate system, in which the direction of the red
line is the positive direction of X-axis, green is the positive direction of Y-axis and blue is the positive direction of Z-
axis.
Click Reset to cancel all the transformation in the exact movement interface.
Click Close to save the results and exit.
3-2-1 System Movement
3-2-1 system movement aligns data by selecting the point, line and plane. Before movement, create feature points,
lines and planes. The feature lines created are not perpendicular to the plane.
The coordinate system on the interface represents the global coordinate system: Red=X+, Green=Y+, Blue=Z+.
Select a feature surface in the plane drop-down menu, and select an axis in the corresponding constraint drop-
down menu of the plane. The arrow on the plane corner indicates the positive direction of the plane, and the
selected axis direction will be consistent with the plane direction.
