Recommended upstream protection.
UPS MODEL
Protect C3000
LCD+

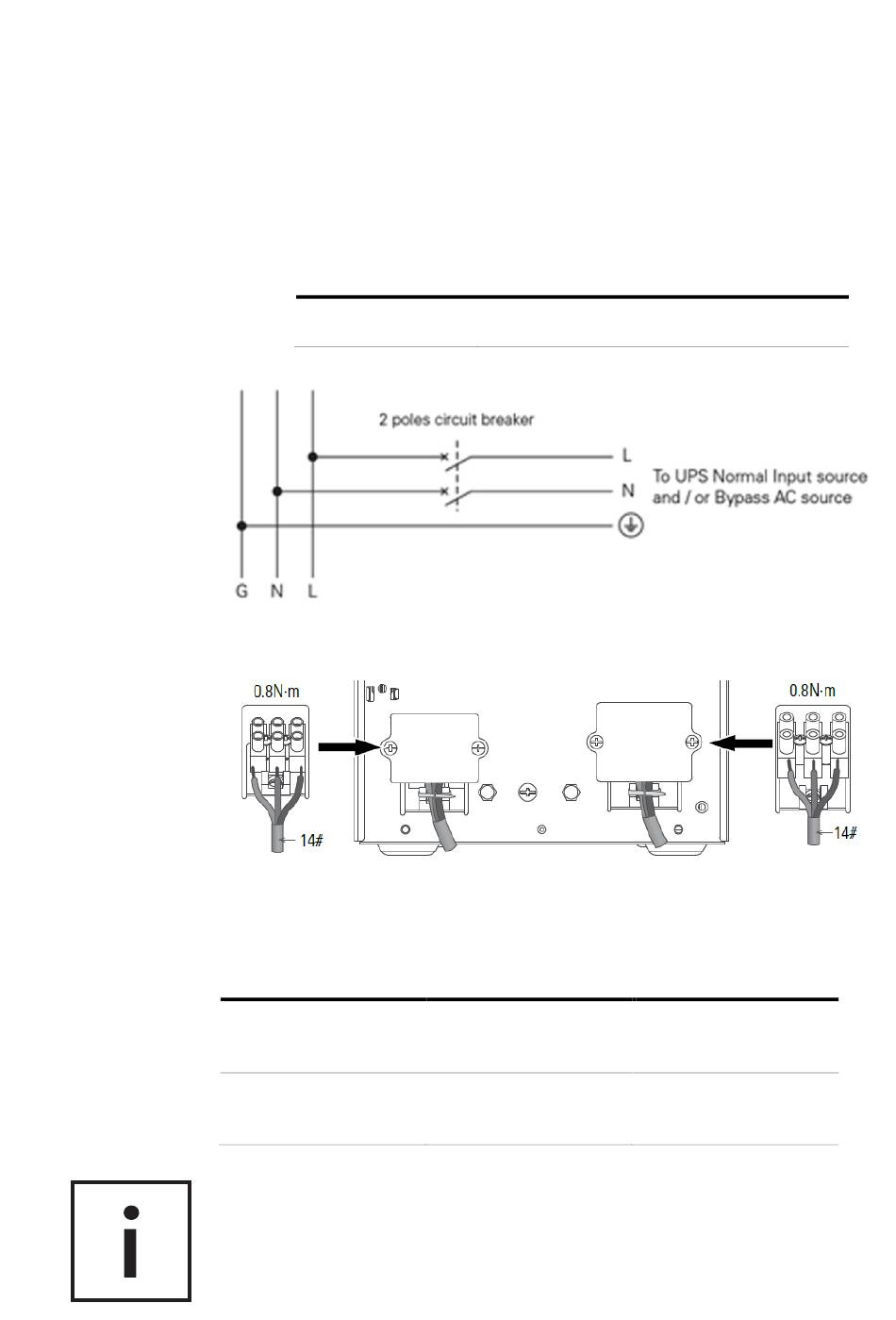

Input terminal and output terminal connection:
PROTECT C
3000LCD+
Input L, N, G
conductor
cross section
Output L, N, G
conductor
cross section
Note: For Tower 3KS, the output cable should less than 3m.
When the cables connected to terminal block, the inner copper
wire must not be exposed to avoid the risk of electric shock
UPSTREAM CIRCUIT BREAKER
C curve-20A
MINIMUM OF
SECTION
REQUIRED/
TORQUE
2.5 mm²/(0.3N.m)
4 mm²/(0.8N.m)
TERMINAL-
BLOCK
CAPACITY
4 mm²
10 mm²
