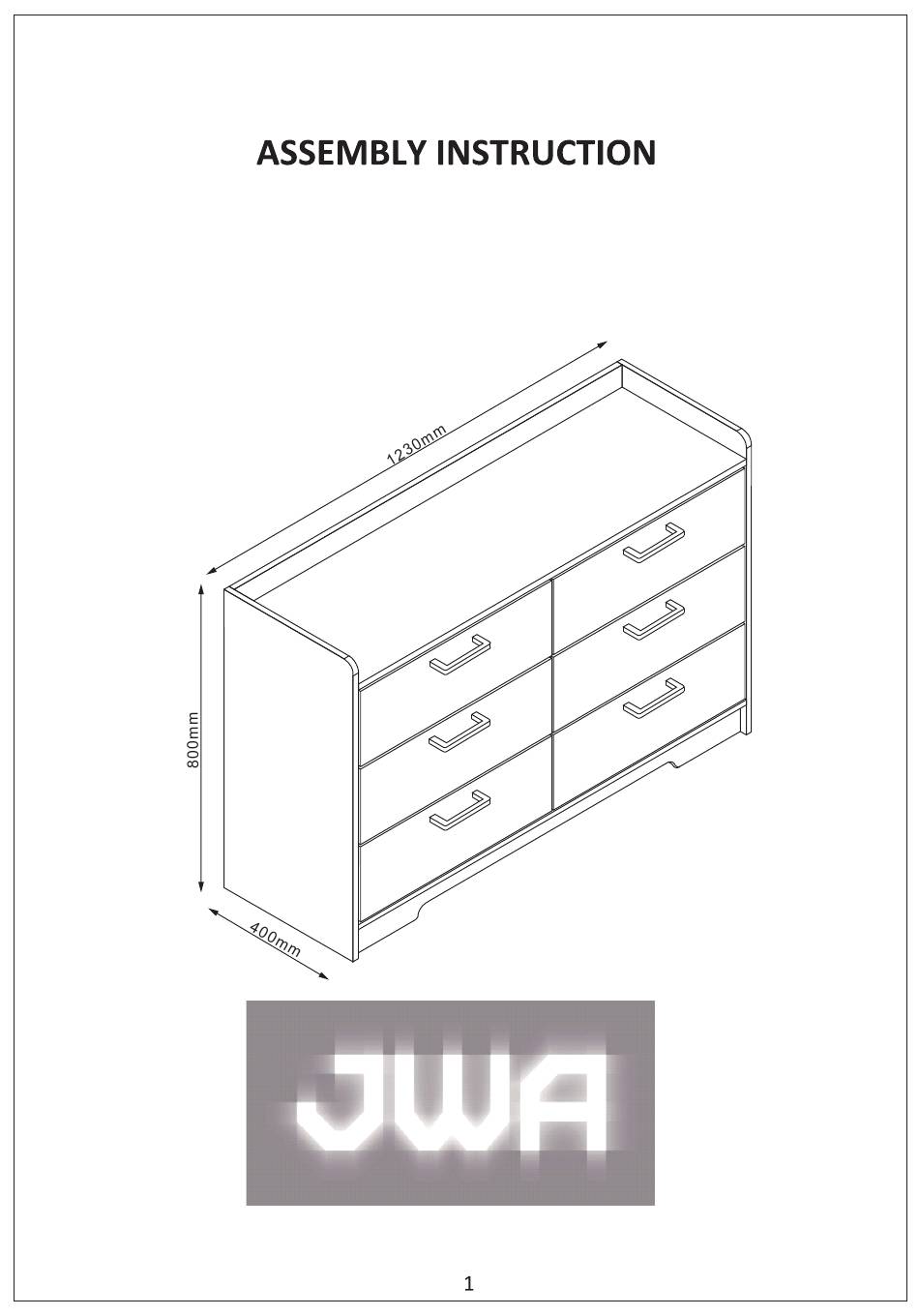

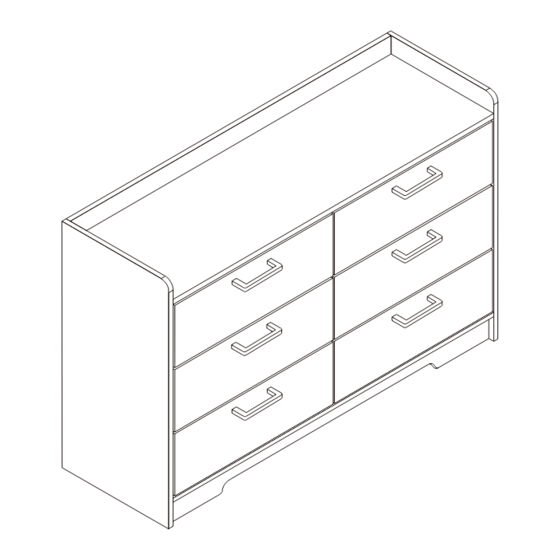

- Page 1 CALDWELL 6 Drawer Dresser ITEM CODE 75119 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 ST3.5X14mm 8X30mm ST5X50mm 12pcs 54pcs 12pcs 50pcs 24pcs ST3.5X18mm M4X18mm 2pcs 8pcs 8pcs 12pcs ST4X25mm 2pcs 2pcs Right drawer front panel Top baffle panel Top panel Bottom panel Drawer left side panel Front foot panel Drawer right side panel Back foot panel Left side panel Middle panel Back panel...
- Page 4 1. Separate part E1 and E2 (runners) as shown below. 2. Attach part E1 to the front and back of panel 4 with part C. 1. Attach part E1 to panels 3 and 5 with part C. 2. Insert parts A and B into panels 3 and 5.
- Page 5 1. Insert part A into panel 2. 2. Attach panels 7 and 8 to panel 2 with part A. 1. Insert part A into panel 1. 2. Attach panel 6 to panel 1 with part A.
- Page 6 1. Insert parts A and B into panel 2. 2. Slide panel 9 along slot of panel 2. 1. Attach panel 4 to panel 2 with parts A and B. 2. Insert parts A and B into panel 1.
- Page 7 STEP 7 1. Attach panel 1 to panel 4 with parts A and B. STEP 8 1. Attach panel 3 to panels 1 and 2 with parts A and B.
- Page 8 STEP 9 1. Attach panel 5 to panels 1 and 2 with parts A and B. STEP 10 1. Attach panels 12 and 13 to panel 14 with part D. 2. Slide panel 15 along slots of panels 12 and 13.
- Page 9 STEP 11 1. Insert part A into panels 10 and 11. 2. Attach panels 10 and 11 to panels 12 and 13 with part A. STEP 12 1. Attach part E2 to panels 12 and 13 with part C. 2. Insert part J into front of panels 10 and 11 with part I.
- Page 10 STEP 13 1. Insert part H into panel 9 with part F. 2. Insert part G into the corresponding hole of panel 9. STEP 14 1. Install drawers 10 and 11 into the cabinet. Ensure runners are correctly aligned.
- Page 11 STEP 15 Install Tip Kit 1. Attach part L to the back of panel 6 with part C. 2. Attach part L to the wall with part K. STEP 16 Assembly complete!
