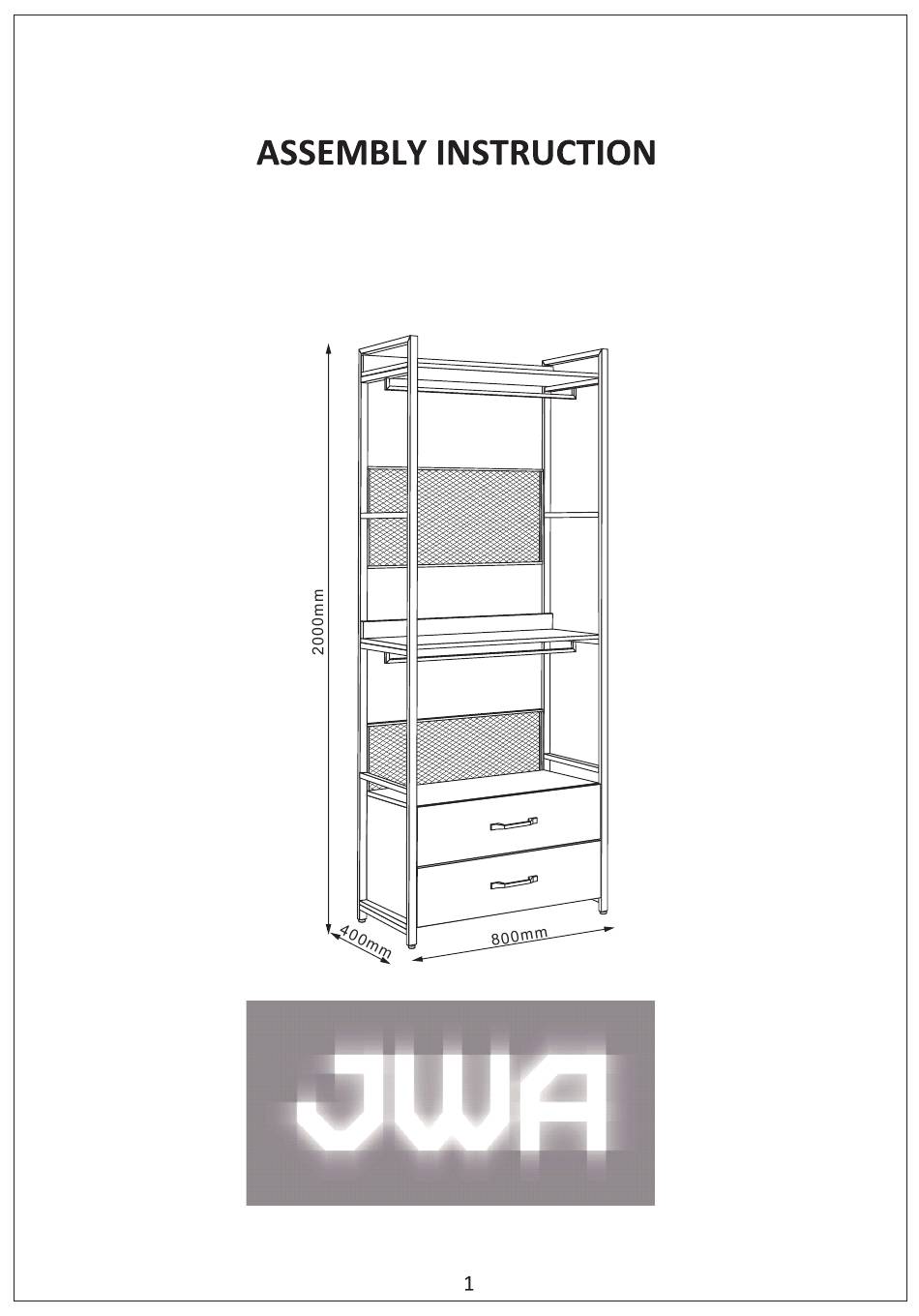

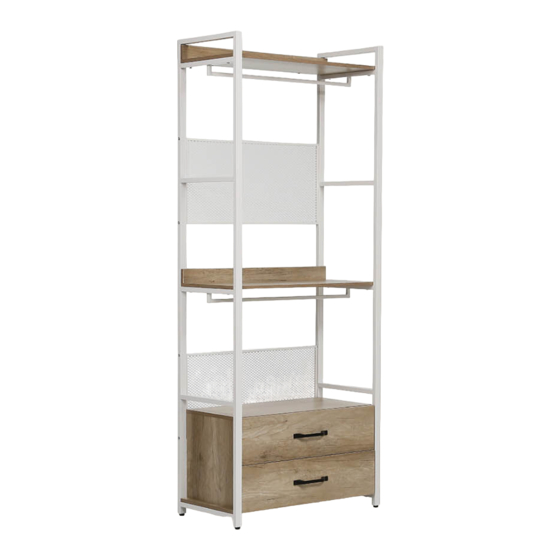

- Page 1 ADVANCE 2 Drawer Clothes Rack ITEM CODE 75108/75109 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M6X40 mm M6X30 mm M4X18mm 4pcs 24pcs 8pcs 16pcs 4pcs ST3.5X14mm ST3.5X18mm ST5X50mm 6pcs 8pcs 18pcs 12pcs 6pcs ST4X25mm M8X20X10mm 2pcs 2pcs 2pcs 4pcs...
- Page 4 Top panel Cabinet left side panel Drawer right side panel Middle panel Cabinet right side panel Drawer back panel Back connection panel Cabinet back panel Drawer support panel Cabinet top panel Drawer front panel Drawer bottom panel Main frame Cabinet bottom panel Drawer left side panel Coat hanger Metal mesh...
- Page 5 1. Insert part M into main frame P1. 1. Attach coat hanger P2 to main frame P1 with part C.
- Page 6 1. Attach metal mesh P3 to main frame P1 with part B. 1. Attach panel 1 to panel 3 with part H. 2. Attach panel 2 to panel 3 with part H.
- Page 7 1. Attach panels 1 and 2 to main frame P1 with part C. 1. Separate E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 6 and 7 with part F.
- Page 8 STEP 7: 1. Insert parts A and I into panel 5. 2. Attach panels 6 and 7 to panel 5 with parts A and I. STEP 8: 1. Slide panel 8 along slots of panels 6 and 7.
- Page 9 STEP 9: 1. Insert parts A and I into panel 4. 2. Attach panel 4 to panels 6 and 7 with parts A and I. STEP 10: 1. Insert part J into panel 8 with part G.
- Page 10 STEP 11: 1. Attach cabinet 5 to main frame P1 with part C. STEP 12: 1. Insert part A into panel 12. 2. Attach panel 13 to panel 12 with part A. 3. Attach panels 10 and 11 to panel 12 with part H.
- Page 11 STEP 13: 1. Insert part A into panel 9. 2. Attach part K to panel 9 with part D. STEP 14: 1. Attach panel 9 to panels 10, 11 and 13 with part A.
- Page 12 STEP 15: 1. Attach part E2 to panels 10 and 11 with part F. STEP 16: 1. Install drawers into the cabinet. Ensure runners are correctly aligned.
- Page 13 STEP 17: Install Tip Kit 1. Attach part N to the back of panel 1 with part F. 2. Attach part N to the wall with part L. STEP 18: Assembly complete!
