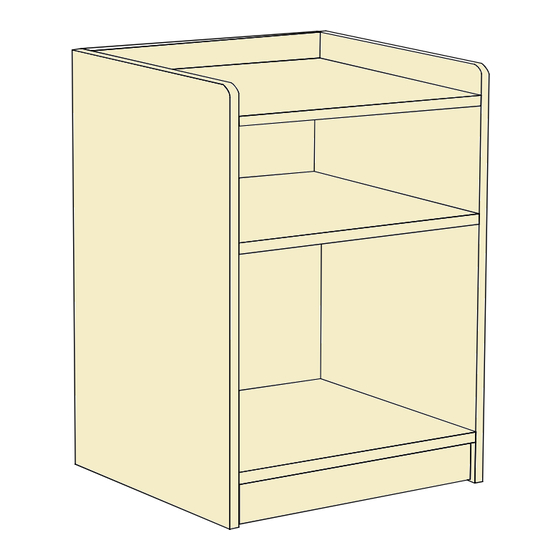

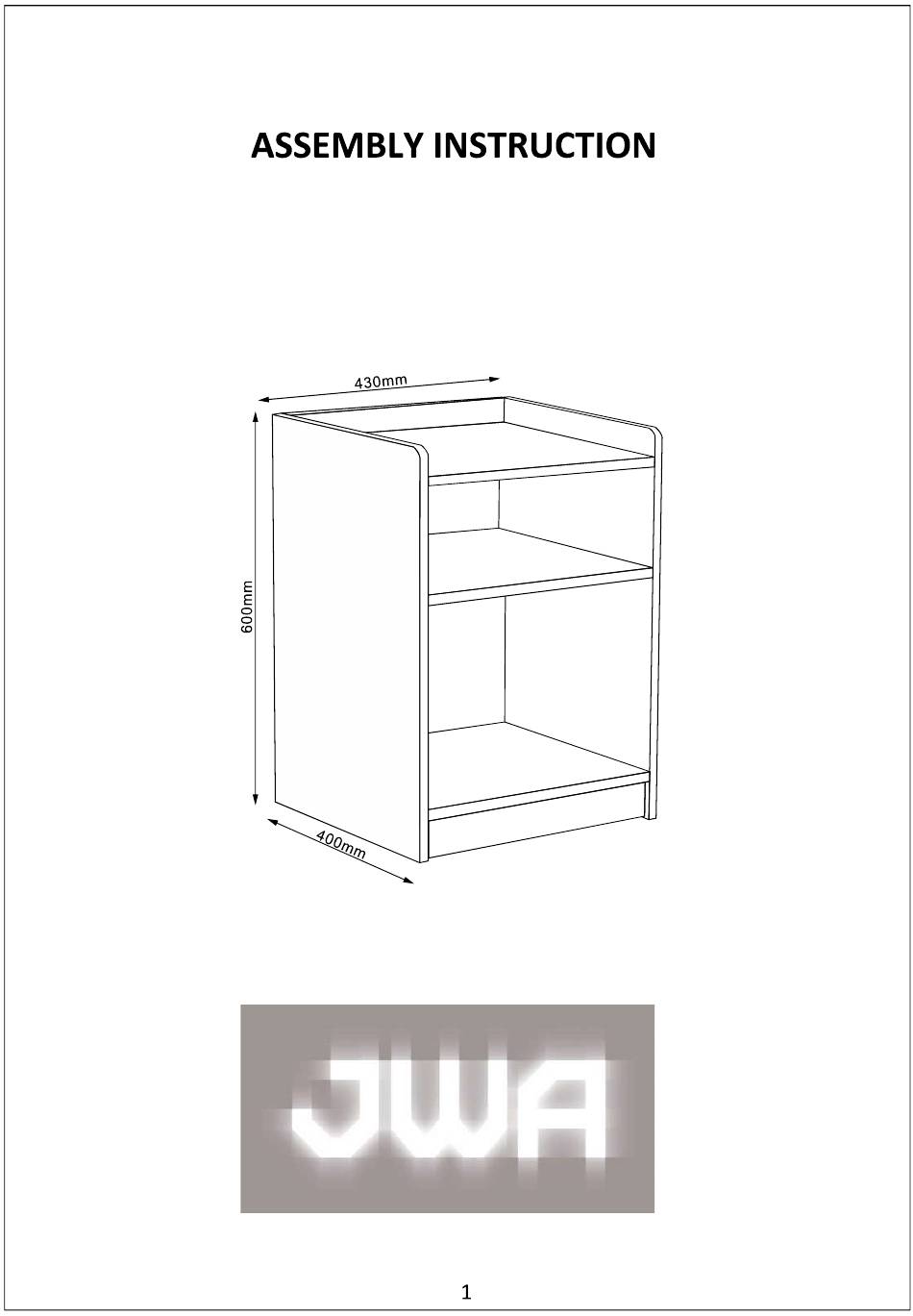

- Page 1 CALDWELL Bedside ITEM CODE 75116 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 Allow 30min For 1 person...
- Page 3 8X30mm ST5X50mm ST3.5X18mm 4pcs 20pcs 12 pcs 2pcs 4pcs ST4X25mm ST3 5X14mm Top panel Baffle panel Layer panel Foot panel Bottom panel Back panel Left side panel Right side panel...
- Page 4 1. Attach panel 6 to panel 1 with part C. 2. Insert part A into panel 3. 3. Attach panel 7 to panel 3 with part A. 1. Insert parts A and B into panel 4. 2. Attach panels 1, 2 and 3 to panel 4 with parts A and B.
- Page 5 1. Slide panel 8 along slots of panels 2 and 3. 1. Insert parts A and B into panel 5. 2. Attach panel 5 to panels 1, 2 and 3 with parts A and B.
- Page 6 1. Insert part E into panel 8 with part D. Install Tip Kit 1. Attach part H to the back of panel 6 with part F. 2. Attach part H to the wall with part G.
- Page 7 STEP 7: Assembly complete!
