Summary of Contents for JWA Caldwell 75118

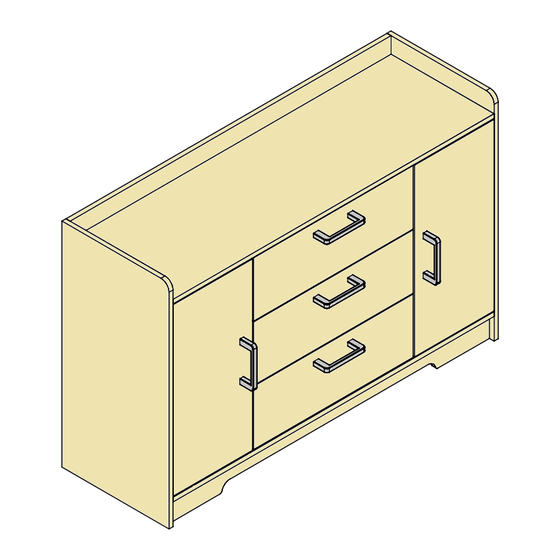

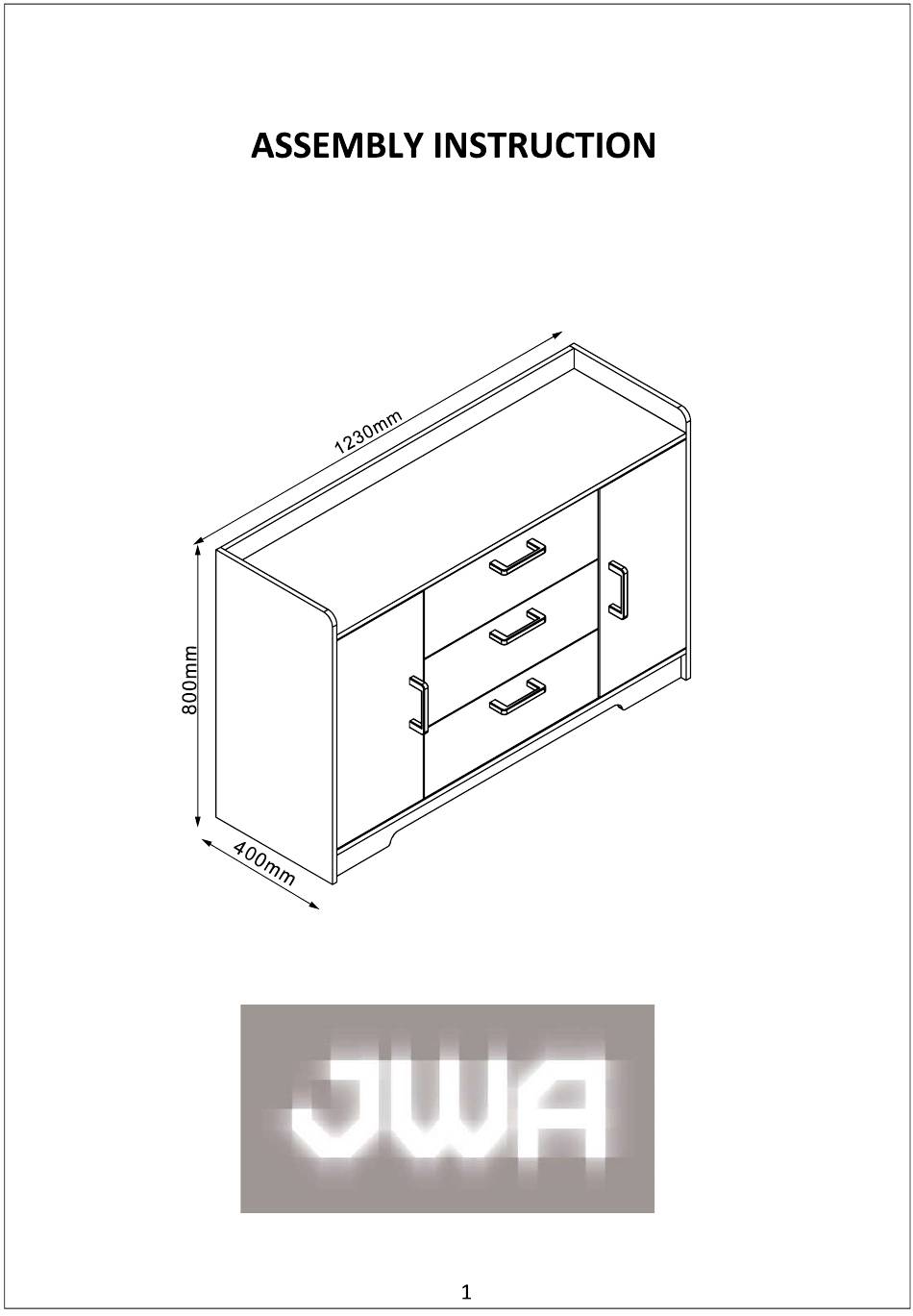

- Page 1 CALDWELL Buffet ITEM CODE 75118 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 ST3 5X14mm 8X30mm ST5X50mm 6pcs 54pcs 24pcs 50pcs 12pcs ST3.5X18mm M4X18mm 5pcs 4pcs 8pcs 8pcs 10pcs ST4X25mm 4pcs 2pcs 2pcs Cabinet back panel Top panel Right panel Cabinet door panel Bottom panel Baffle panel Left panel Front foot panel Drawer front panel Left middle panel Back foot panel Drawer left panel...
- Page 4 1. Separate parts E1 and E2 (runners) as shown below. 1. Attach part E1 to panels 4 and 5 with part C.
- Page 5 1. Insert part A into panel 1. 2. Attach panel 7 to panel 1 with part A. 1. Insert part A into panel 2. 2. Attach panels 8 and 9 to panel 2 with part A.
- Page 6 1. Insert parts A and B into panel 2. 2. Slide panel 11 along slot of panel 2. 1. Attach panels 4 and 5 to panel 2 with parts A and B. 2. Insert parts A and B into panel 1.
- Page 7 STEP 7: 1. Attach panel 1 to panels 4 and 5 with parts A and B. STEP 8: 1. Insert parts A and B into panels 4 and 5.
- Page 8 STEP 9: 1. Attach panel 10 to panels 4 and 5 with parts A and B. STEP 10: 1. Insert parts A and B into panel 3. 2. Attach panel 3 to panels 1, 2, 8, 9 and 10 with parts A and B.
- Page 9 STEP 11: 1. Insert parts A and B into panel 6. 2. Attach panel 6 to panels 1, 2, 8, 9 and 10 with parts A and B. STEP 12: 1. Attach part K to panel 12 with part C. 2.
- Page 10 STEP 13: 1. Attach panels 14 and 15 to panel 16 with part D. 2. Slide panel 17 along slots of panels 14 and 15. STEP 14: 1. Insert part A into panel 13. 2. Attach panel 13 to panels 14 and 15 with part A.
- Page 11 STEP 15: 1. Attach part E2 to panels 14 and 15 with part C. 2. Attach part J to panel 13 with part I. STEP 16: 1. Attach part K to panels 3 and 6 with part C.
- Page 12 STEP 17: 1. Insert part G into panel 11. 2. Insert part H to panel 11 with part F. STEP 18: 1. Install drawers into the cabinet. Ensure runners are correctly aligned.
- Page 13 STEP 19: Install Tip Kit 1. Attach part M to the back of panel 7 with part C. 2. Attach part M to the wall with part L. ⑦ STEP 20: Assembly complete!
