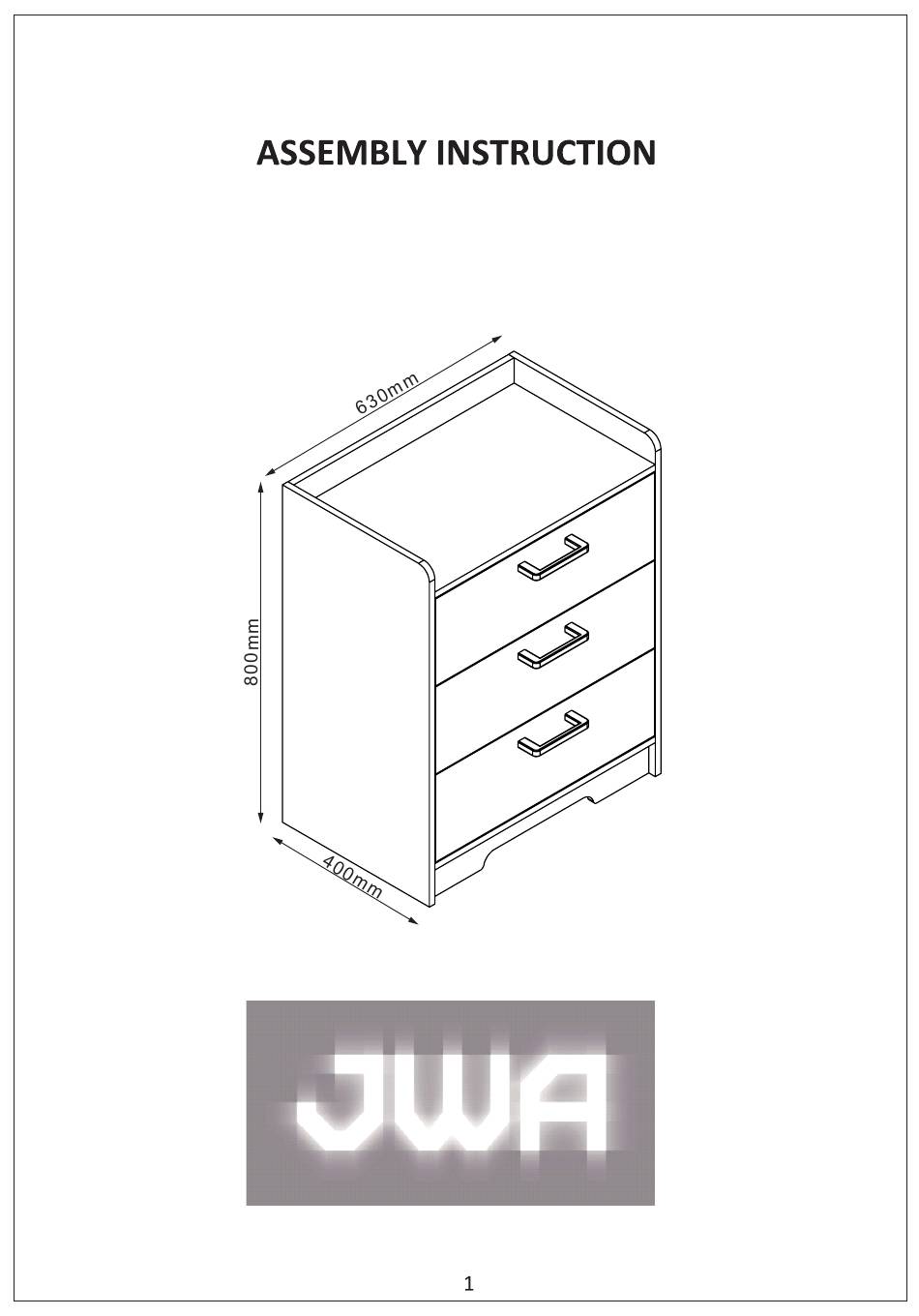

- Page 1 CALDWELL 3 Drawer Lamp Table ITEM CODE 75113 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 Allow 30min...
- Page 3 8X30mm ST5X50mm ST3. 5X14mm 38pcs 6pcs 8 pcs 12pcs 25pcs ST4X25mm M4X18mm ST3.5X18mm 8pcs 3pcs 6pcs 8pcs Back foot panel Drawer right side panel Top panel Back panel Drawer back panel Bottom panel Left side panel Drawer bottom panel Top baffle panel Right side panel Drawer front panel Front foot panel...
- Page 4 1. Insert part A into panel 2. 2. Attach panels 5 and 6 to panel 2 with part A. 1. Insert part A into panel 1. 2. Attach panel8 to panel 1 with part A.
- Page 5 1. Separate E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 3 and 4 with part D. 3. Insert parts A and B into panels 3 and 4. 1. Attach panels 1 and 2 to panel 3 with part A.
- Page 6 1. Slide panel 7 along slots pf panels 1 and 2. 1. Attach panel 4 to panels 1 and 2 with parts A and B.
- Page 7 1. Attach panel 12 to panels 10 and 11 with part C. 2. Slide panel 13 along slots of panels 10 and 11. 1. Insert part A into panel 9. 2. Attach part G to panel 9 with part F.
- Page 8 1. Attach panel 9 to panels 10 and 11 with part A. 1. Attach part E2 to panels 10 and 11 with part D.
- Page 9 1. Attach part I to panel 7 with part H. 1. Install drawer into the cabinet. Ensure runners are correctly aligned.
- Page 10 Install Tip Kit 1. Attach part K to panel 8 with part D. 2. Attach part K to the wall with part J. Assembly complete!
