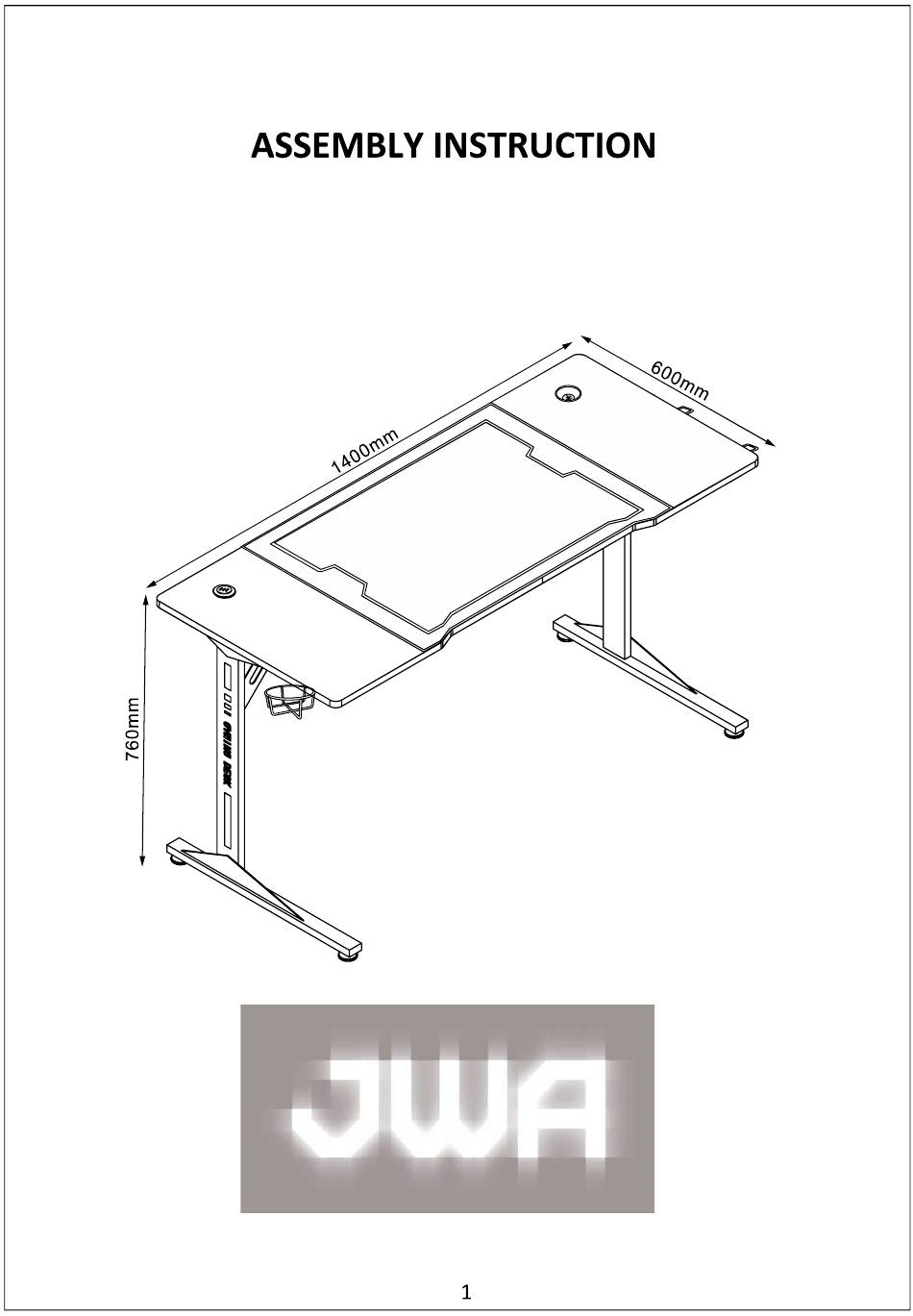

- Page 1 NEVERS Gaming Desk ITEM CODE 75137 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 Allow 30min...
- Page 3 M6X60 mm ST3.5X14mm M6X30 mm M6X12mm 8X30mm 4pcs 9pcs 12pcs 21pcs 2pcs M6X16mm 2pcs 2pcs M8X45mm ST4X25mm 2pcs 4pcs 2pcs Right frame Left side panel Support metal sheet Right side panel Support frame Left main frame Cable storage box Right main frame Left frame Connection metal sheet...
- Page 4 1. Insert part K into frames P1 and P2. 1. Attach panel 1 to panel 2 with part D.
- Page 5 1. Insert frame P 3 to frame P4. 2. Attach frame P3 to frame P4 across frame P8 with part C. 1. Attach panels 1 and 2 to frames P3 and P4 with part B.
- Page 6 1. Attach panels 1 and 2 to frames P1, P2, P3 and P4 with parts A and B. 1. Attach frame P5 to frames P1, P2, P3 and P4 with part C.
- Page 7 STEP 7: 1. Attach frame P6 to panels 1 and 2 with part C. STEP 8: 1. Attach frame P7 to frame P6 with part J.
- Page 8 STEP 9: 1. Attach part G to panel 2 with part C and E. STEP 10: 1. Insert part I into panel 2. 2. Insert part F1 into panel 1 with part E, then insert part F2 into part F1. 3.
- Page 9 STEP 11: Install Tip Kit 1. Attach part L to the back of panels 1 and 2 with part E. 2. Attach part L to the wall with part M. ② ① STEP 12: Assembly complete!
