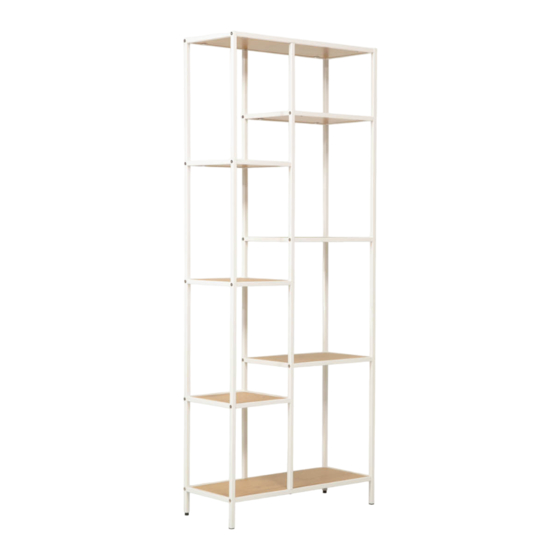

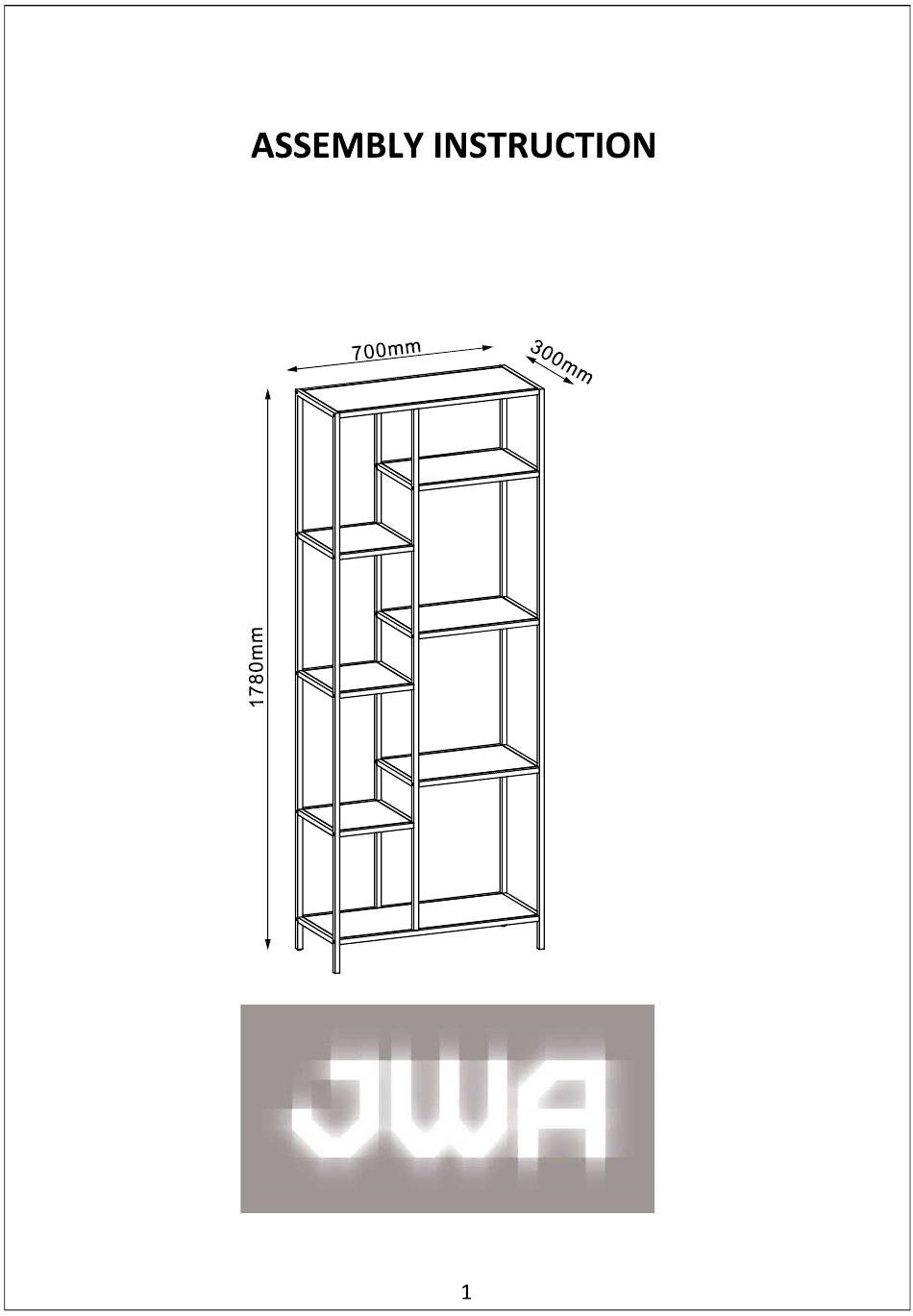

- Page 1 AMELIE 7 Tier Bookcase ITEM CODE 75121 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 Allow 30min...
- Page 3 M6X35 mm M6X12mm ST4X25mm ST3.5X12mm 34pcs 2pcs Top panel Bottom panel Left layer panel Right layer panel Left main frame Middle main frame Right main frame...
- Page 4 1. Attach panels 3 to main frame P1 with part A using allen key F. 1. Attach main frame P2 to panels 3 with part A using allen key F.
- Page 5 1. Attach panel 2 to main frames P1 and P2 with part A using allen key F. 1. Insert panel 1 into main frame P2.
- Page 6 STEP 5 1. Attach panel 1 to main frames P1 and P2 with parts A and B using allen key F. STEP 6 1. Attach panels 4 to main frame P 2 with part A using allen key F.
- Page 7 STEP 7 1. Attach main frame P3 to panel s 1, 2 and 4 with part A using allen key F. STEP 8 Install Tip Kit 1. Attach part E to the back of panel 1 with part D. 2. Attach part E to the wall with part C.
- Page 8 STEP 9 Assembly complete!
