Summary of Contents for JWA AMELIE 75120

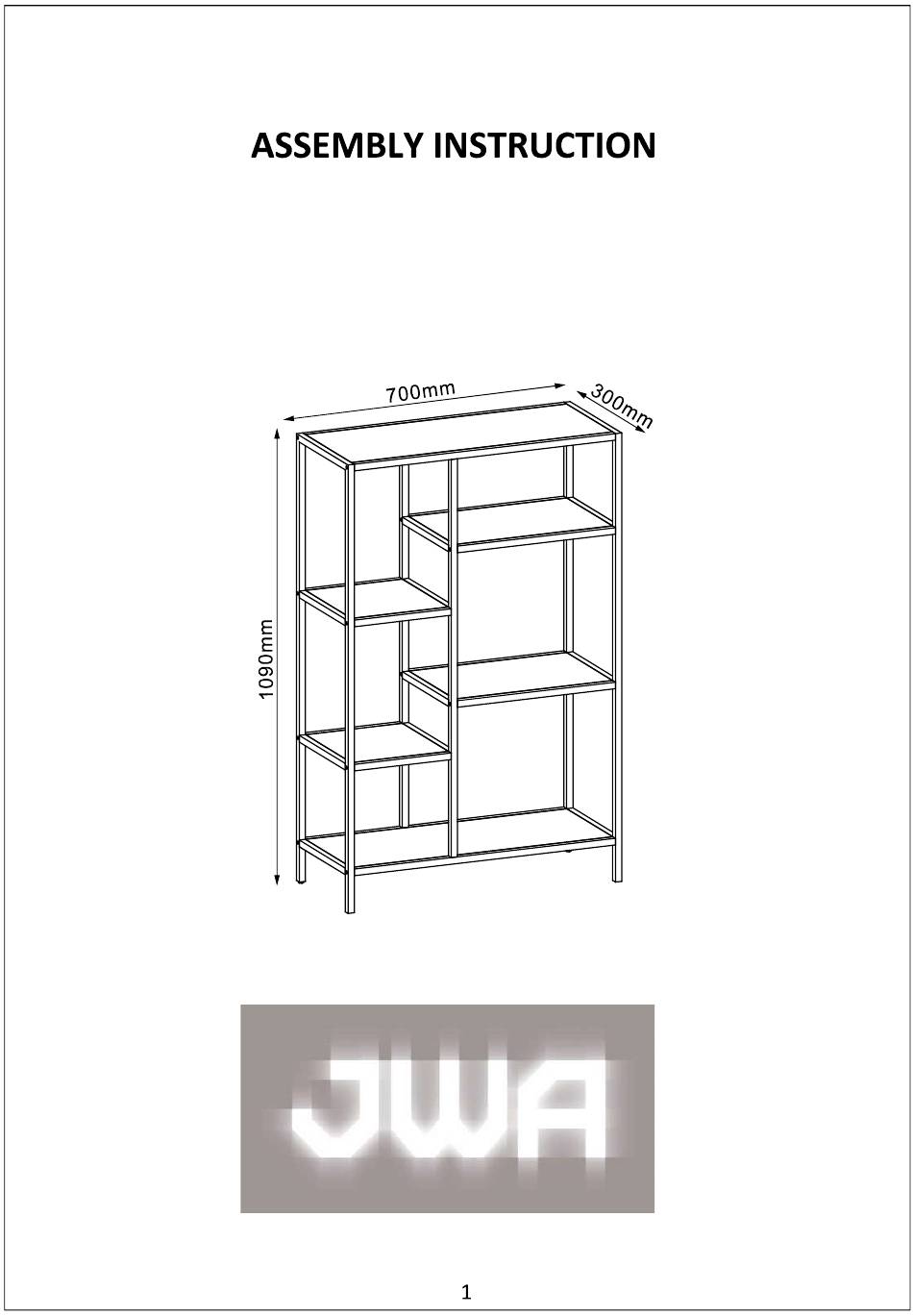

- Page 1 AMELIE 5 Tier Bookcase ITEM CODE 75120 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M6X35 mm ST4X25mm ST3.5X12mm M6X12mm 26pcs 2pcs Top panel Bottom panel Left panel Right panel Left metal frame Middle metal frame Right metal frame...
- Page 4 1. Attach Panel 3 to P1 with Part A using Part F (allen key). 1. Attach P2 to other side of Panel 3 with Part A using Part F (allen key).
- Page 5 1. Attach Panel 2 to P1 and P2 with Part A using Part F (allen key). 1.Insert the pipe of Panel 1 into P2, please pay attention to the installation according to the detail drawing.
- Page 6 STEP 5 1. Then fix Panel 1 to P1 and P2 with Part A and B using Part F (allen key). STEP 6 1. Attach Panel 4 to P2 with Part A using Part F (allen key).
- Page 7 STEP 7 1. Attach P3 to Panels 1, 4 and 2 with Part A using Part F (allen key). STEP 8 Install Tip Kit 1. Attach safety strap E to Panel 1 with Part D. 2. Then attached the other side to the wall with Part C.
- Page 8 STEP 9 Assembly complete!
