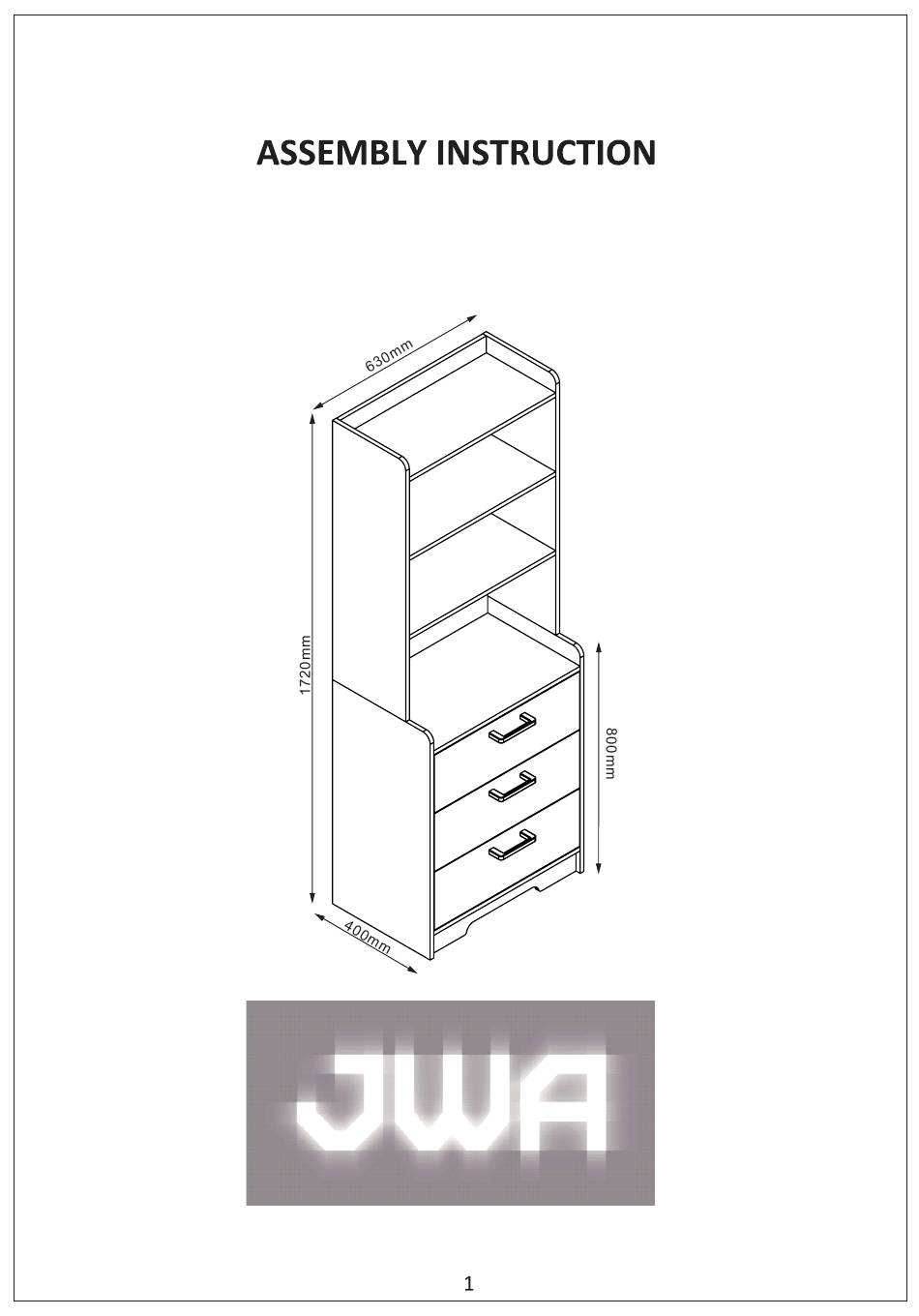

- Page 1 CALDWELL Tall Display Unit ITEM CODE 75115 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 8X30mm ST5X50mm ST3.5X14mm 50pcs 6pcs 20 pcs 12pcs 25pcs M4X18mm ST3.5X18mm ST4X25mm 16pcs 3pcs 6pcs 16pcs 8X60mm M6X12mm 4pcs 2pcs 4 pcs 8pcs...
- Page 4 Left side panel Top panel Low back panel Right side panel Drawer front panel Bottom panel Left side panel Up layer panel Drawer left panel Up baffle panel Drawer right panel Right side panel Drawer back panel Low layer panel Front foot panel Drawer bottom panel Back foot panel...
- Page 5 1. Insert part A into panel 2. 2. Attach panels 5 and 6 to panel 2 with part A. 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 3 and 4 with part D. 3.
- Page 6 1. Attach panels 1 and 2 to panel 3 with parts A and B. 1. Slide panel 13 along slots of panels 1 and 2.
- Page 7 1. Attach panel 4 to panels 1 and 2 with parts A and B. ② 1. Attach panels 15 and 16 to panel 17 with part C. 2. Slide panel 18 along slots of panels 15 and 16.
- Page 8 STEP 7 1. Insert part A into panel 14. 2. Attach part G to panel 14 with part F. STEP 8 1. Attach panel 14 to panels 15 and 16 with part A.
- Page 9 STEP 9 1. Attach part E2 to panels 15 and 16 with part D. STEP 10 1. Install drawer 14 into the cabinet. Ensure runners are correctly aligned.
- Page 10 STEP 11 1. Attach panel 10 to panel 9 with part A. 2. Attach panels 7 and 8 to panels 9 and 11 with parts A and B. STEP 12 1. Slide panel 12 along slots of panels 7 and 8.
- Page 11 STEP 13 1. Insert 1 drop of part P (glue) into the corresponding holes of panels 7 and 8. STEP 14 1. Insert 1 drop of part P (glue) into the corresponding holes of panels 3 and 4. Then insert part L into the holes.
- Page 12 STEP 15 1. Attach panels 7 and 8 to panels 3 and 4 with part L. STEP 16 1. Fix the up and low cabinet with part M across part N.
- Page 13 STEP 17 1. Insert part O into panel 12 as shown below. 2. Insert part I into panel 13 with part H. STEP 18 Install Tip Kit 1. Attach part K to the back of panel 10 with part D. 2.
- Page 14 STEP 19 Assembly complete!
