Summary of Contents for JWA CALDWELL 75114

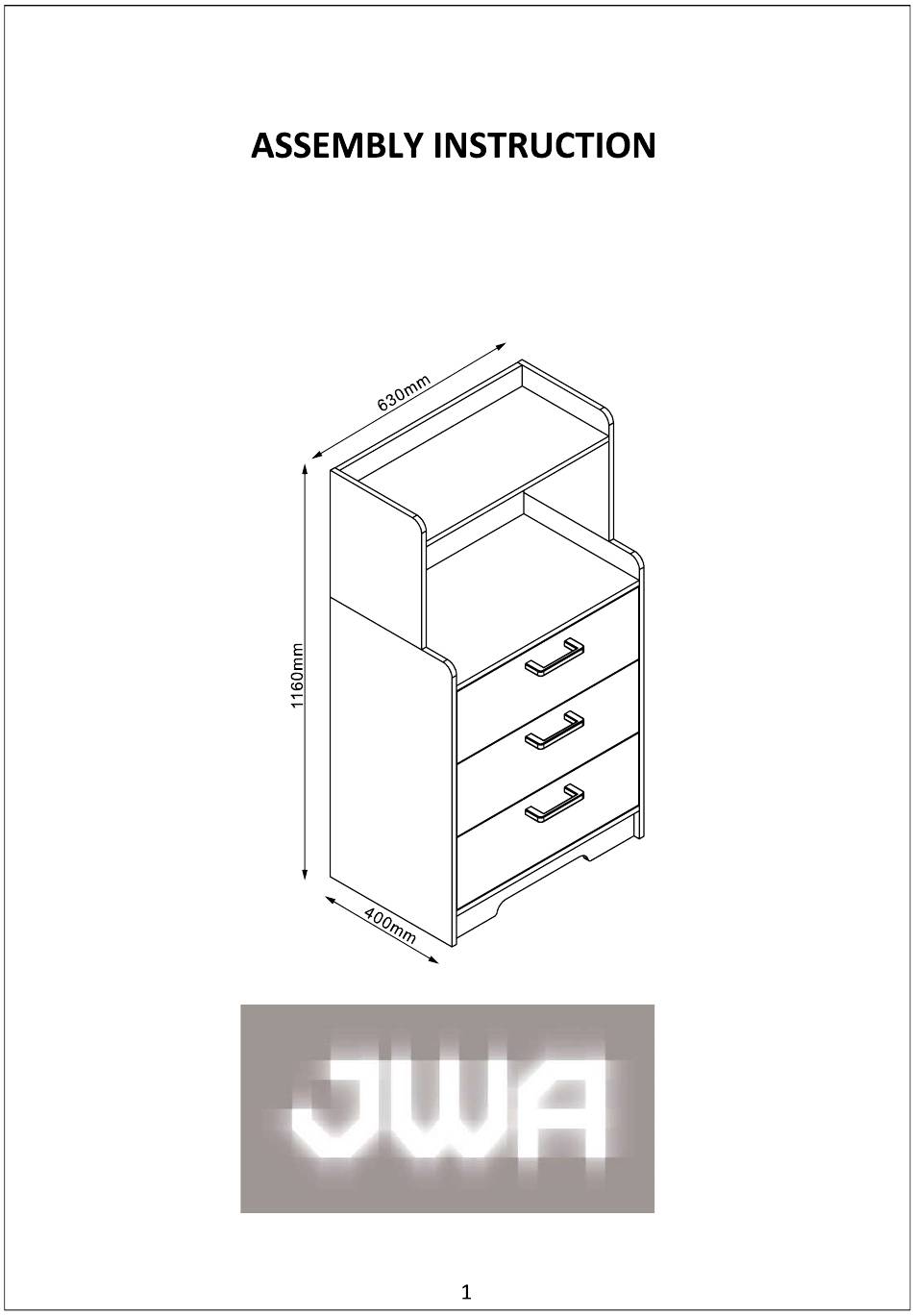

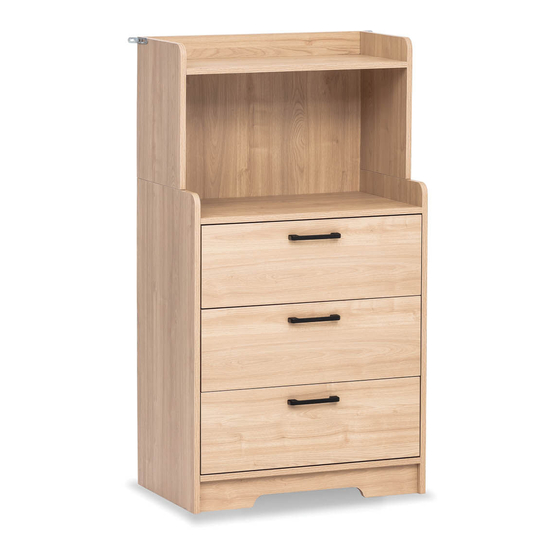

- Page 1 CALDWELL Medium Display Unit ITEM CODE 75114 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 8X30mm ST3 5X14mm ST5X50mm 42pcs 6pcs 12 pcs 12pcs 26pcs ST4X25mm M4X18mm ST3.5X18mm 14pcs 2pcs 3pcs 6pcs 14pcs 8X60mm M6X12mm 2pcs 2pcs 4 pcs 8pcs Left panel Cabinet top panel Drawer front panel Cabinet bottom panel Right panel Drawer left panel Cabinet left panel Drawer right panel Top panel...
- Page 4 1. Insert part A into panel 2. 2. Attach panels 5 and 6 to panel 2 with part A. 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 3 and 4 with part D. 3.
- Page 5 1. Attach panels 14 and 15 to panel 16 with part C. 2. Slide panel 17 along slots of panels 14 and15. 1. Insert part A into panel 13. 2. Attach part G to panel 13 with part F.
- Page 6 1. Attach panel 13 to panels 14 and 15 with part A. 1. Attach part E2 to panels 14 and 15 with part D.
- Page 7 1. Attach panels 1 and 2 to panel 3 with parts A and B. 1. Slide panel 12 along slots of panels 1 and 2.
- Page 8 1. Attach panel 4 to panels 1 and 2 with parts A and B. ② ① 1. Install drawers into the cabinet. Ensure runners are correctly aligned.
- Page 9 1. Insert part A into panel 9. 2. Attach panel 10 to panel 9 with part A. 3. Insert parts A and B into panels 7 and 8. 1. Attach panels 7 and 8 to panels 9 and 10 with parts A and B.
- Page 10 STEP 13 1. Slide panel 11 along slots of panels 7 and 8. STEP 14 1. Insert 1 drop of part O (glue) into the corresponding holes of panels 3, 4, 7 and 8. 2. Insert part M into panels 3 and 4.
- Page 11 STEP 15 1. Attach panels 7 and 8 to panels 3 and 4 with part M. STEP 16 1. Fix the cabinet with part N across part K.
- Page 12 STEP 17 1. Insert part I into panels 11 and 12 with part H. STEP 18 Install Tip Kit 1. Attach part L to the back of panel 10 with part D. 2. Attach part L to the wall with part J.
- Page 13 STEP 19 Assembly complete!
