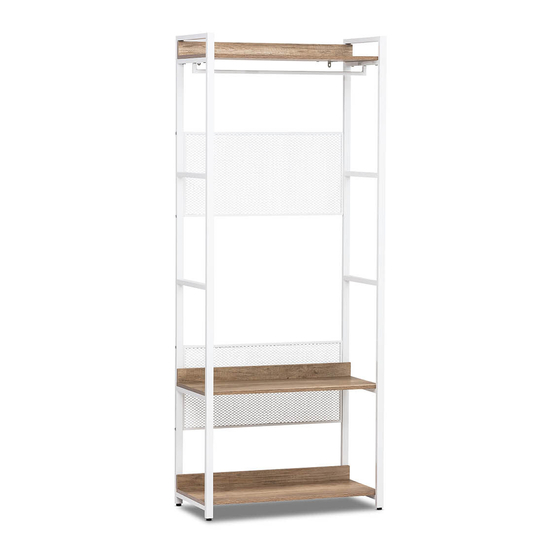

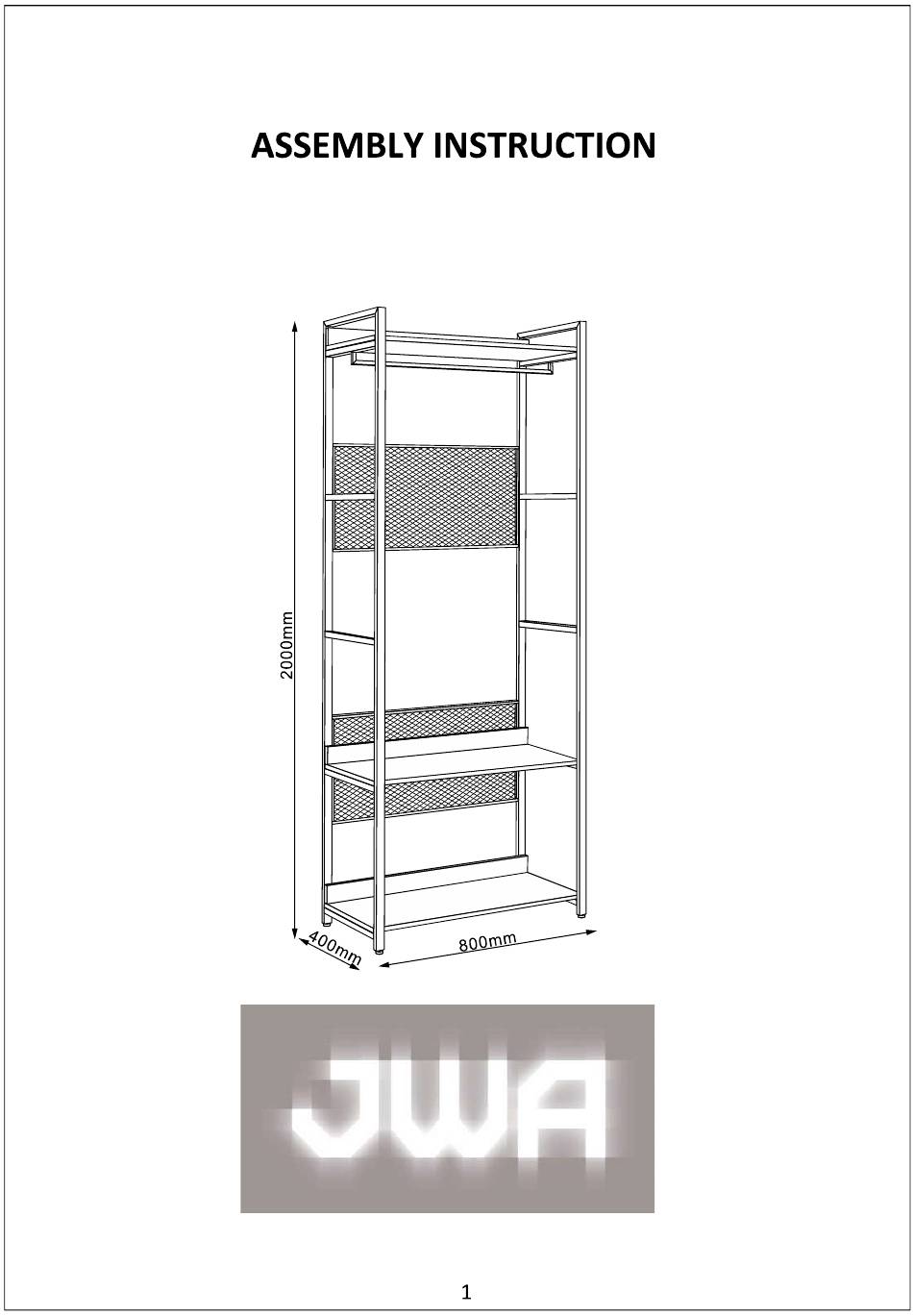

- Page 1 ADVANCE Single Rail Clothes Rack ITEM CODE 75106/75107 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M6X40 mm ST3.5X14mm M6X30 mm ST5X50mm ST4X25mm 8pcs 2pcs 14pcs 6pcs 2pcs M8X20X10mm 2pcs 4pcs Top panel Middle panel Back panel Metal frame Coat hanger Back mesh...
- Page 4 1. Insert part F into the corresponding hole at the bottom of metal frame P1; Then attach coat hanger P2 to metal frame P1 with part B. 1. Attach back mesh P3 to metal frame P1 with part A.
- Page 5 1. Attach panel 1 to back panel 3 with part C. Then attached panel 2 to panel 3 with part C. 1. Attached the step 3 components to metal frame P1 with part B.
- Page 6 Install Tip Kit 1. Attach safety strap G to panel 1 with part E. 2. Then attached the other side to the wall with part D. Follow this step to attach another safety strap. Assembly complete!
