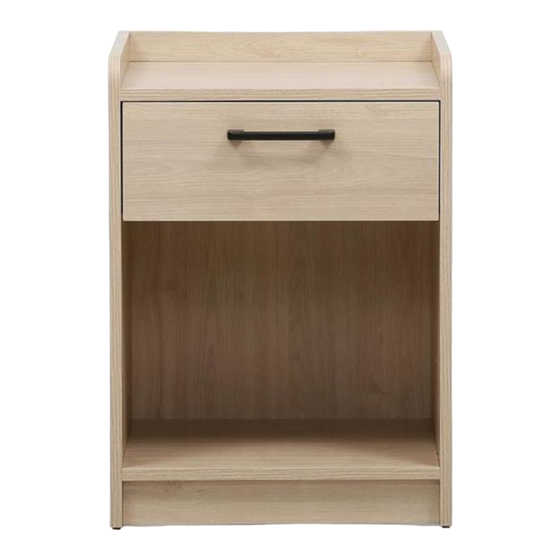

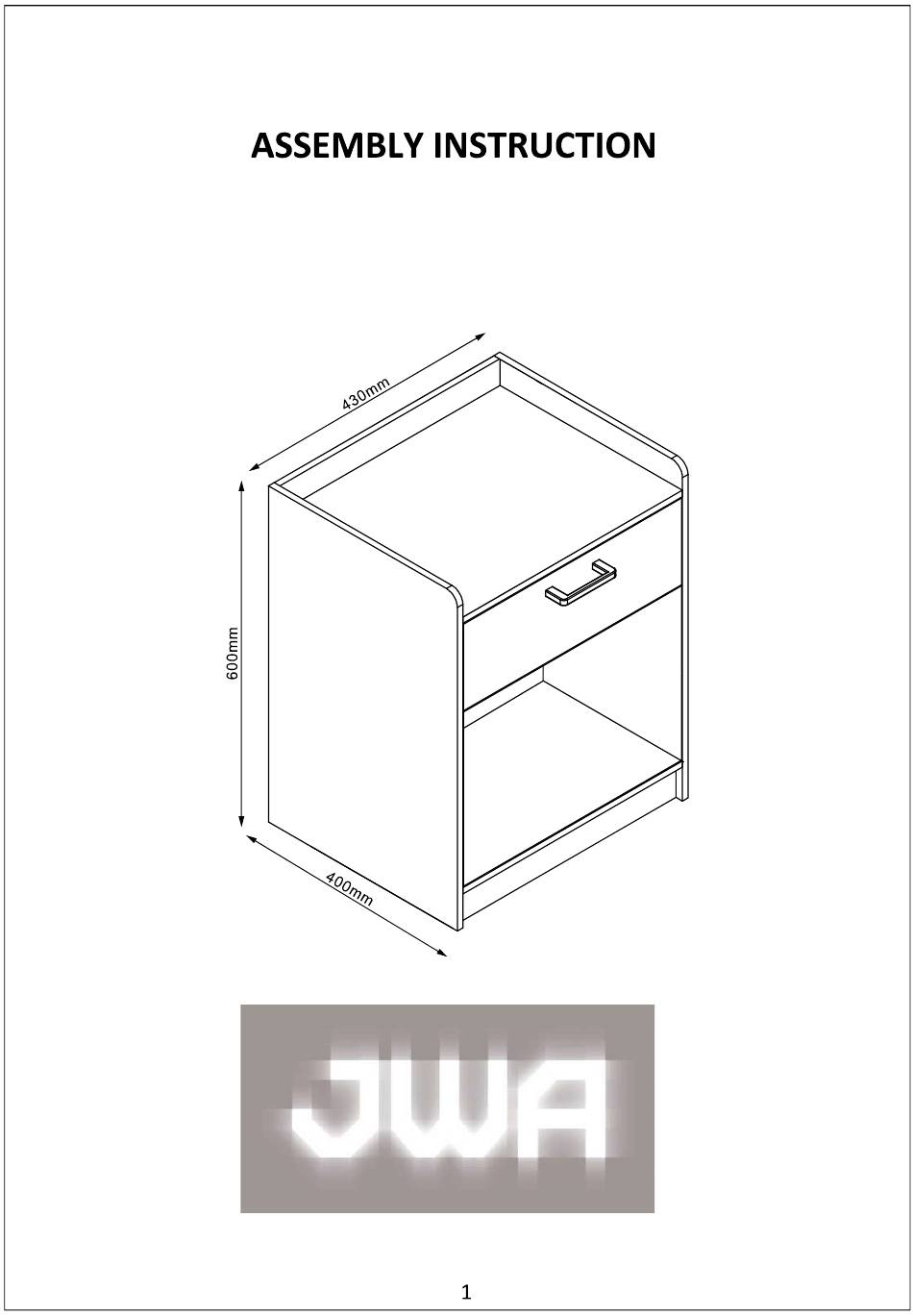

- Page 1 CALDWELL 1 Drawer Bedside ITEM CODE 75117 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 Allow 30min For 1 person...
- Page 3 ST3 5X14mm 8X30mm ST5X50mm 2pcs 20pcs 8pcs 6pcs ST3.5X18mm ST4X25mm M4X18mm 6pcs 6pcs 2pcs Baffle panel Drawer back panel Top panel Bottom panel Drawer bottom panel Back panel Drawer front panel Left side panel Drawer left panel Right side panel Foot panel Drawer right panel...
- Page 4 1. Attach panel 6 to panel 1 with part C. 2. Insert part A into panel 2. 3. Attach panel 5 to panel 2 with part A. 1. Separate parts E1 and E2 (runners) as shown below. 2. Attach part E1 to panels 3 and 4 with part D. 3.
- Page 5 1. Attach panels 1 and 2 to panel 3 with parts A and B. 1. Slide panel 7 along slots of panels 1 and 2.
- Page 6 1. Attach panel 4 to panels 1, 2 and 6 with parts A and B. 1. Attach panels 9 and 10 to panel 11 with part C. 2. Slide panel 12 along slots of panels 9 and 10.
- Page 7 STEP 7: 1. Insert part A into panel 8. 2. Attach panel 8 to panels 9 and 10 with part A. STEP 8: 1. Attach part E2 to panels 9 and 10 with part D. 2. Attach part G to panel 8 with part F.
- Page 8 STEP 9: 1. Install drawer into the cabinet, ensure runners are correctly aligned. STEP 10: 1. Insert part I into panel 7 with part H.
- Page 9 STEP 11: Install Tip Kit 1. Attach part K to panel 6 with part D. 2. Attach part K to the wall with part J. STEP 12: Assembly complete!
