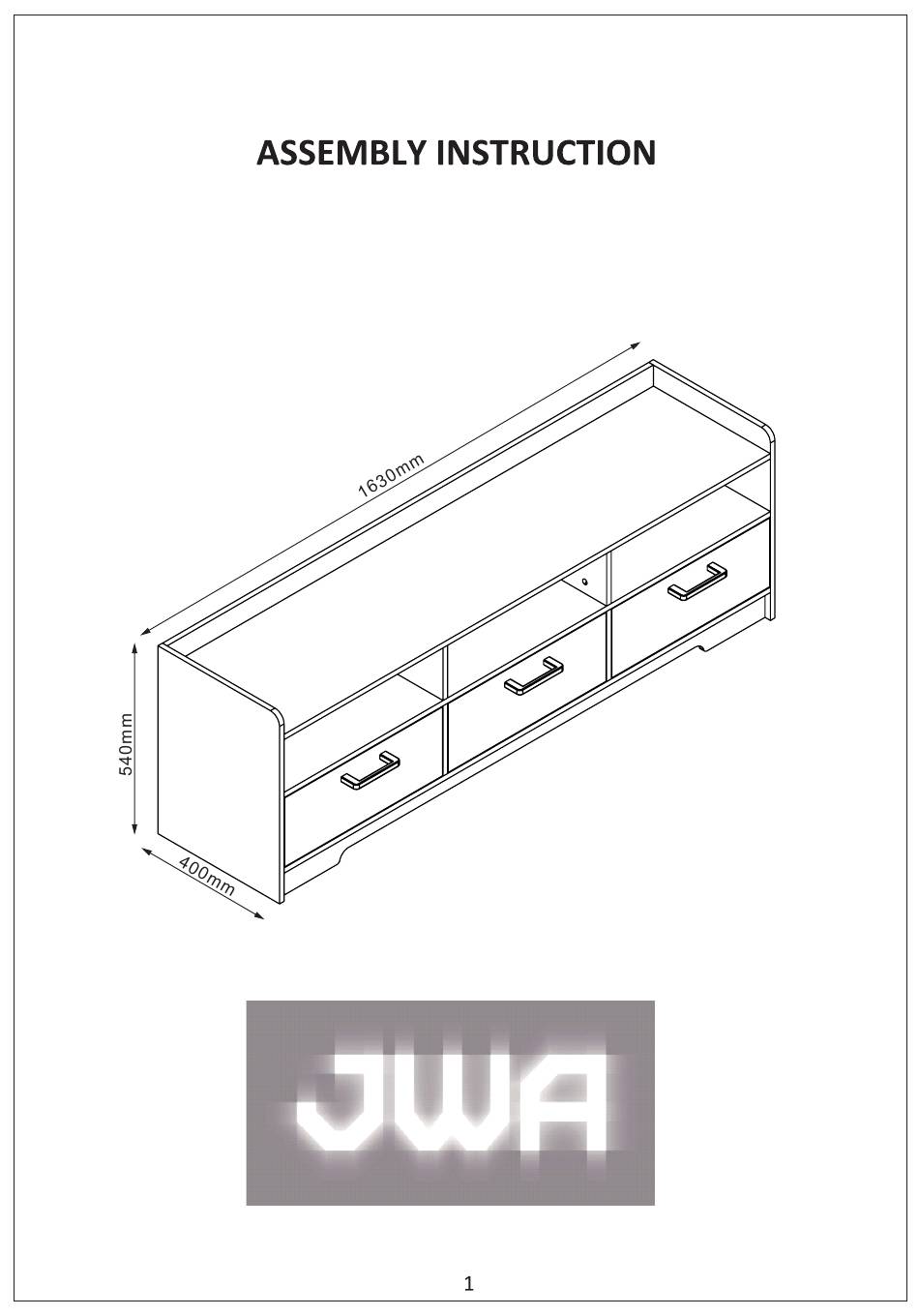

- Page 1 CALDWELL 3 Drawer Entertainment Unit CALDWELL 75149 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 ST3.5X14mm 8X30mm ST5X50mm 6pcs 58pcs 26pcs 28pcs 12pcs ST3.5X18mm M4X18mm 6pcs 8pcs 3pcs 8pcs 6pcs ST4X25mm 2pcs 2pcs Top middle panel Top panel Top back panel Front foot panel Drawer front panel Bottom panel Layer panel Back foot panel Drawer left panel Left side panel Back panel Drawer right panel...
- Page 4 1. Separate parts E1 and E2 (runners) as shown below. 2. Insert parts A and B into panels 4 and 5. 3. Attach part E1 to panels 4 and 5 with part D. 1. Attach part E1 to panel 10 with part D.
- Page 5 1. Attach panels 7 and 8 to the bottom of panel 2 with part A. 1. Attach panel 10 to panel 2 with parts A and B.
- Page 6 1. Attach panel 3 to panel 10 with parts A and B. 1. Attach panel 11 to panel 3 with parts A and B.
- Page 7 STEP 7: 1. Attach panel 1 to panel 11 with parts A and B. STEP 8: 1. Attach panel 6 to panel 1 with part A.
- Page 8 STEP 9: 1. Slide panel 9 along slots of panels 1 and 2. STEP 10: 1. Attach panels 4 and 5 to panels 1, 2 and 3 with parts A and B.
- Page 9 STEP 11: 1. Insert part I to panel 9 with part J. STEP 12: 1. Insert part H into panel 9 as shown below.
- Page 10 STEP 13: 1. Insert part A into panel 12. 2. Attach part G to panel 12 with part F. STEP 14: 1. Attach panels 13 and 14 to panel 15 with part C. 2. Slide panel 16 along slots of panels 13 and 14.
- Page 11 STEP15: 1. Attach panel 12 to panels 13 and 14 with part A. STEP 16: 1. Attach part E2 to panels 13 and 14 with part D.
- Page 12 STEP 17: 1. Install drawers into the cabinet, ensure runners are correctly aligned. STEP 18: Install Tip Kit 1. Attach part L to panel 6 with part D. 2. Attach part L to the wall with part K. ⑥...
