ACP VC1 EU/MK • Setup Guide (Continued)

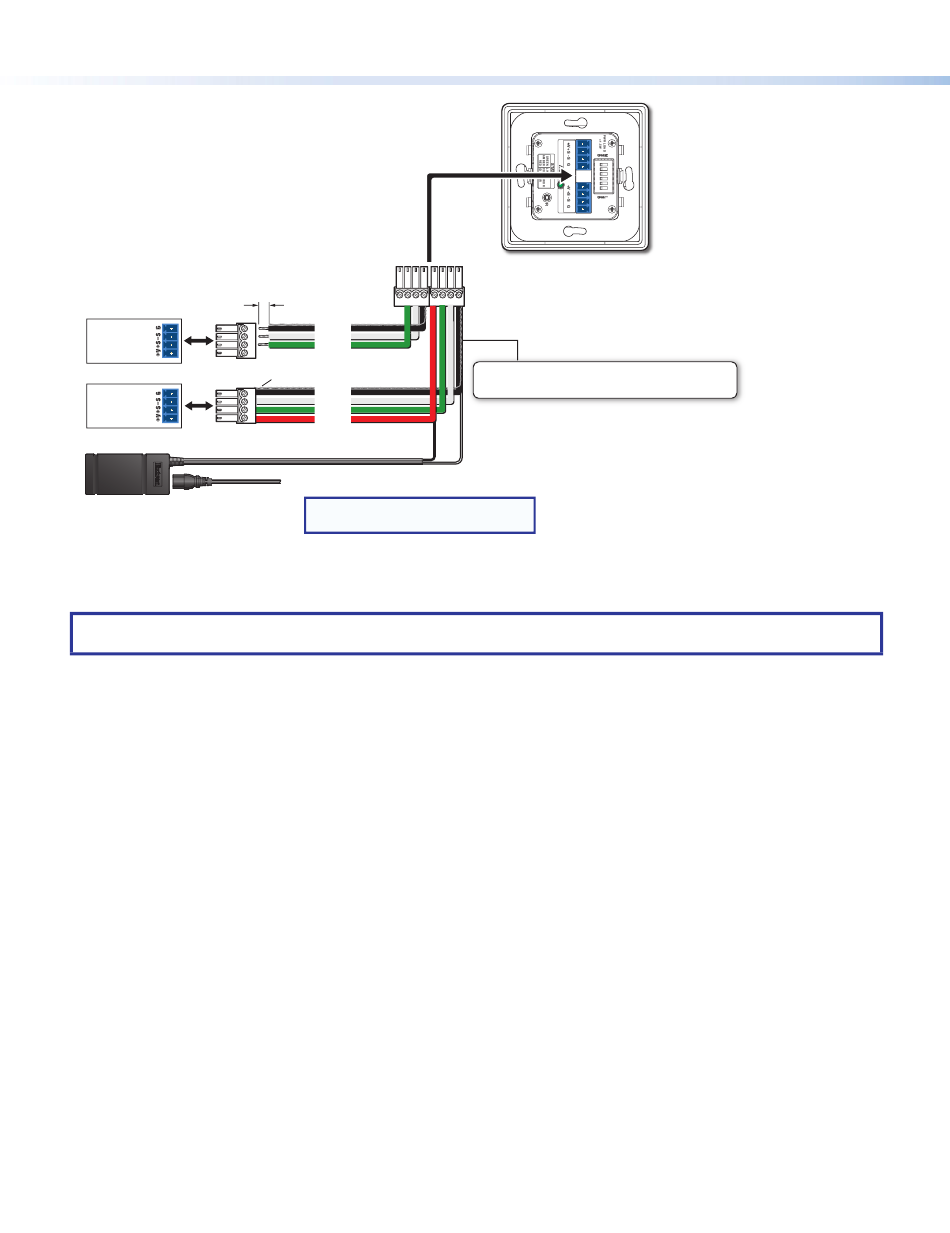

3/16" (5 mm) Max.
ACP port
on a DMP 128
Plus
ACP port
on another
ACP endpoint
Ground
all Devices
External Power Supply
(12 VDC, 2.0 A)

Step 6: Configure the System

NOTE:
For complete information on creating configuration files and operating DSP Configurator Software, see the
host device user guide or refer to the DSP Configurator Software product page at www.extron.com.
1. Create a new host device configuration file in DSP Configurator and create all groups, presets, and macros to be controlled
by the ACP device.
2. Select Tools>Configure ACPs in DSP Configurator and configure the ACP button actions and panel IDs.
3. Connect to the host device in Live mode with a TCP/IP connection and push the configuration file to the device.

Step 7: Test and Troubleshoot

1. Verify the ACP bus ID DIP switches are set to the desired address on each unit and that there are no bus ID address conflicts
in the system. As mentioned in the rear panel features diagram in step 4, the ACP LED lights green when power and
communication are present and there are no bus ID address conflicts. Refer to the legend on the rear panel for other LED
behavior indications.
2.
Verify cables to and from the ACP devices are wired the same at each end.
3. Test the system:
a. Press the ACP device button and ensure the button lights as expected and that the appropriate control actions are
triggered. Commands can be verified using DSP Configurator. DataViewer can also be used for command verification if
responses are configured.
b.
Ensure the audio levels respond correctly to the volume and mute button.
4.
Make adjustments to wiring, bus ID addresses, and system configuration as needed. Remember that the rear panel ports and
DIP switches are not accessible after the ACP is mounted. If needed, push a revised configuration to the ACP device through
the host device using DSP Configurator.
If you have questions during installation and setup, call the Extron S3 Sales and Technical Support Hotline or the Extron S3
Control Systems Support Hotline (1.800.633.9877).
6
All manuals and user guides at all-guides.com
Ground
- Signal
+ Signal
Tie drain wires to ground.
Ground
- Signal
+ Signal
+12 VDC
Smooth
+12 VDC input
– Return
Check the polarity of the power
NOTE:
supply before connecting it to the ACP.
ACP VC1 EU ACP VC1 EU
Rear Panel Rear Panel
Power Input, External Power Supply (optional)
• Connect to an Extron 12 VDC, 2.0 A, power supply.
Ridged
