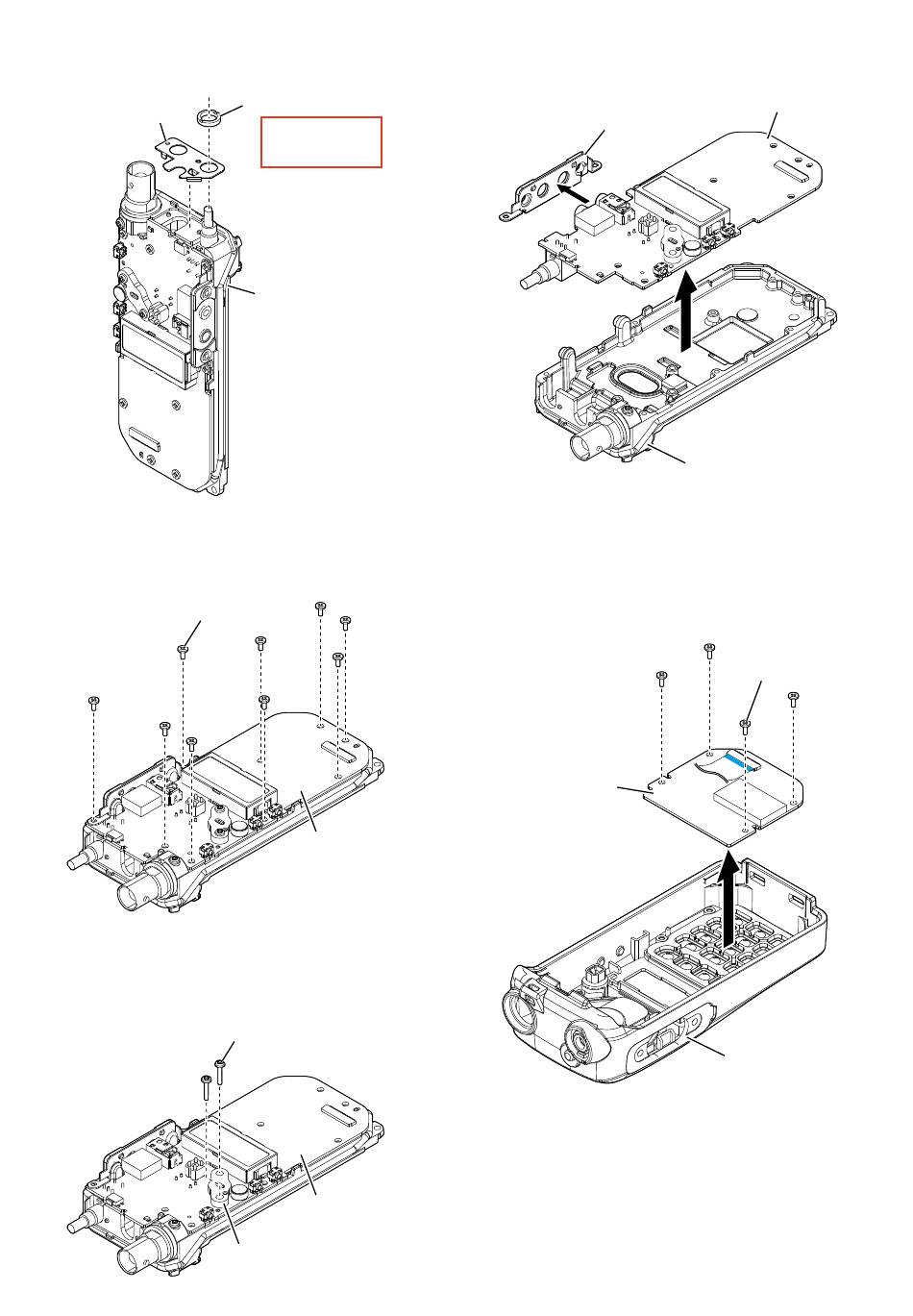

2. REMOVING THE MAIN UNIT
1) Remove the volume nut from the top of the chassis, and
then remove the top plate.
Top plate
2) Remove the 9 screws from the MAIN UNIT.
Screws ×9
3) Remove the 2 screws from the heatsink of MAIN UNIT.
Volume nut
Remove with;
"ICOM Driver (AG)"
(8960000561)
Chassis
MAIN UNIT
Screws ×2
MAIN UNIT
Heatsink
4) Remove the side plate from the MAIN UNIT, and then
remove the MAIN UNIT from the chassis.
Side plate
3. REMOVING THE FRONT UNIT
1) Remove the 4 screws, and then remove the FRONT
UNIT from the front panel.
FRONT UNIT
3-2
MAIN UNIT
Chassis
Screws ×4
Front panel
