Summary of Contents for Unitree Go2

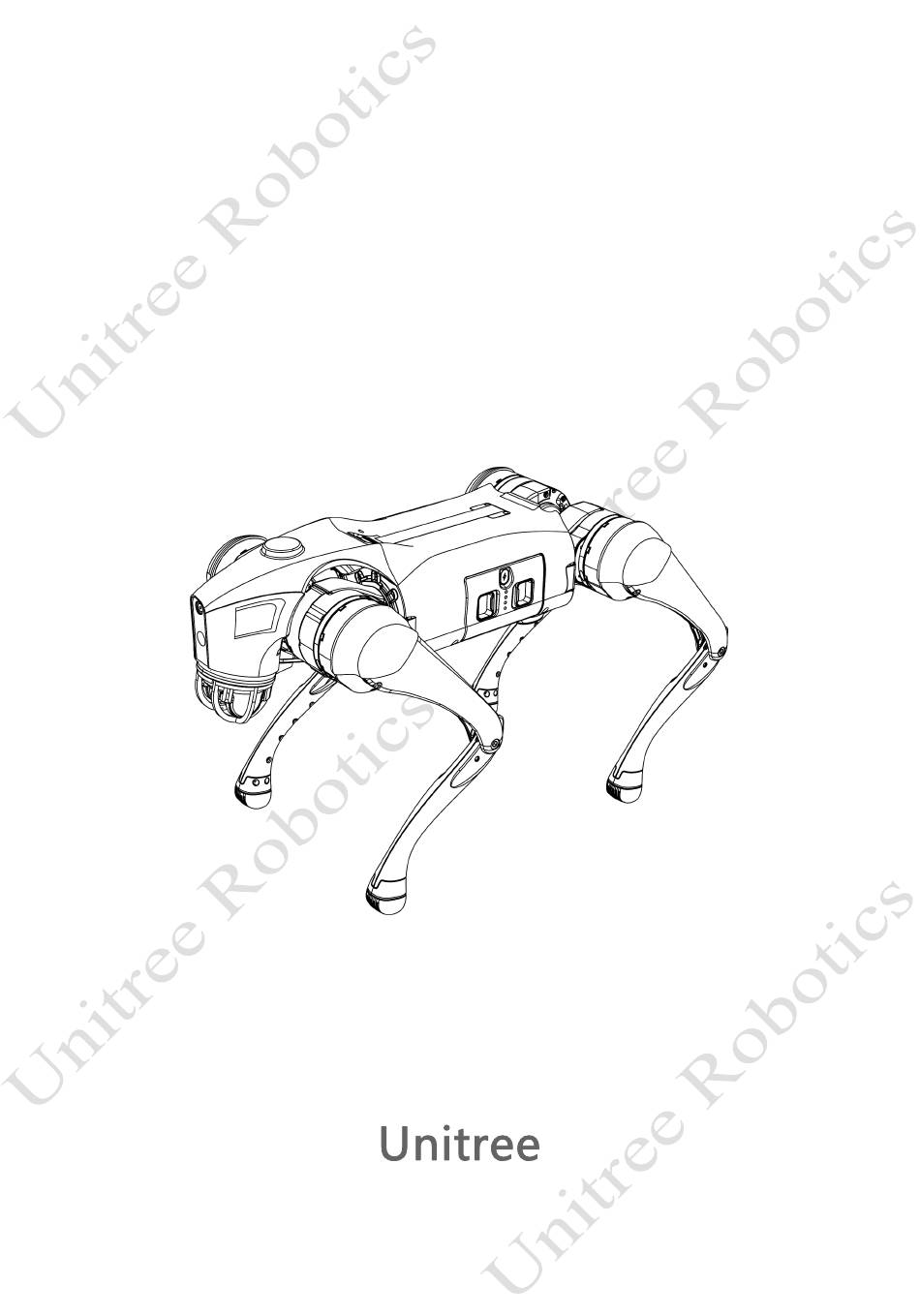

- Page 1 User Manual V1.0 www.unitree.com...
- Page 2 ! 5) Go2 is a purely electric quadruped robot with certain anti-jamming, but the energy density of the motor is much lower than the hydraulic pressure. Do not push the robot suddenly and vigorously, nor to kick the robot, so if the robot falls and is damaged due to a sudden and strong push or kick, it will not be covered by the warranty.
-
Page 3: Parts Name
5m/s (measured in the laboratory).Equipped with 4D LIDAR L1 with 360°×90° hemispherical super wide-angle sensing, which can help Go2 to achieve no blind area coverage. It reaches the leading level at home and abroad both in terms of structure, motion performance, environment perception, and side following. - Page 4 Go2 User Manual 1) Status Indication Go2's head indicator light can emit different lights to show the current working status of the robot and the current operating system, please refer to the following table to learn more about the operating...
- Page 5 Go2 more simple and beautiful in appearance. How to use the auto retractable strap: After Go2 is powered on, push the retractable button forward, you can pull the strap out to the right position to fix it, push the retractable button backward, the strap will be automatically retracted.
- Page 6 After the quadruped robot is loaded, put the battery and charger that come with the shipment into the corresponding positions in the transport box to ensure that none of the above parts will fall off when the upper box is closed. © 2023 All rights reserved, Unitree Robotics...
-
Page 7: Preparation Before Use
1) Installing Battery Packs Lay Go2 on a flat surface, insert the battery pack into the battery packs from the side of the robot, pay attention to the direction of installation, with the power switch button facing upwards.If the battery pack cannot be fully inserted, please adjust the direction of the battery packs and do not press forcibly to avoid damage to the battery interface and buckle.When you hear a "click"... - Page 8 Firstly, press the Go2 power switch button briefly for 1 time, then press the power switch button for 2 seconds or more, then Go2 can be started up During the startup process, the Go2 head indicator light flashes in green. And wait for 2 minutes, the head indicator light is in green permenantly, and the body is parallel to the ground, then the robot is started up.
- Page 9 Download and install the Unitree Go App, complete the registration login sequence. b) Add robot: Home page -add robot-open Bluetooth to connect your Go2-set robot information. c) Bind the robot: you can choose AP router mode and Wi-Fi connection mode to connect, you can learn the built-in tutorial to quickly master the operation skills after successful connection .
- Page 10 Bluetooth connection error: Unitree Go App needs to get Bluetooth permissions, please open Unitree Go Bluetooth permissions in the App. If you forget your bound account, or if you lose your account, please contact the relevant Unitree staff! © 2023 All rights reserved, Unitree Robotics...
- Page 11 5) Go2 Operate your Go2 Use the Unitree Go App to control your Go2 After completing the built-in tutorial in the Unitree Go App, you can use the app to control your Go2 as you want. Use voice control Go2 Go2-EDU has a built-in voice module.
- Page 12 Use handheld remote control to control Go2 (Optional) For the first time to use handheld remote control, you need to bind it on Unitree Go App, [Settings] -> [Remote Control Settings] - turn on the remote control switch, enter the corresponding remote control code, and then you can bind it with the digital transmission module on the robot dog.
- Page 13 Arrow keys up and down Adjust body height Please visit Unitree Go App to trigger more athletic modes! a) Moon walk: Can only be triggered by the App, not supported by handheld remote control. b) Side Step Mode: Can only be triggered by the App, not supported by handheld remote control.
- Page 14 Go2 User Manual Go2 Use the companion remote control to control Go2 Step1: Turn on the ISS in the mobile phone App a) Open Unitree Go App to connect Go2. b) Open the manipulation interface -settings on upper right corner - motion status adjustment - side following.
- Page 15 After switching off the robot, please follow the body placement requirements and position Go2's big and small legs and hip joints to prepare for the next start-up. If you do not use Go2 for a long time, please remove the battery pack and follow the packing steps to put Go2 into the dedicated luggage.
- Page 16 Go2 cannot be controlled by companion remote control and App can't control Go2 at the same time. If you want to use App to control Go2, please exit the side-following mode first. Press the power button for 2 seconds to switch off the remote control. Then you can use the App to control Go2.
- Page 17 (long press, do not release) in the power off state, power up the Go2 battery (short press + long press for 2 seconds), then you can reset the factory settings. Wait for the yellow light blinking after powering up Go2, at this time you can release the reset button and wait for the green light on the head of Go2, the system reset is successful, it takes about 30 minutes.
- Page 18 Product (even if Unitree has been advised of the possibility of such damages). To the fullest extent permitted by law, in no event will Unitree's total...
- Page 19 9) Unitree reserves the right to interpret the above terms and conditions in accordance with the laws and regulations. Unitree reserves the right to update, revise or terminate these Terms at any time without prior notice.
Need help?
Do you have a question about the Go2 and is the answer not in the manual?
Questions and answers

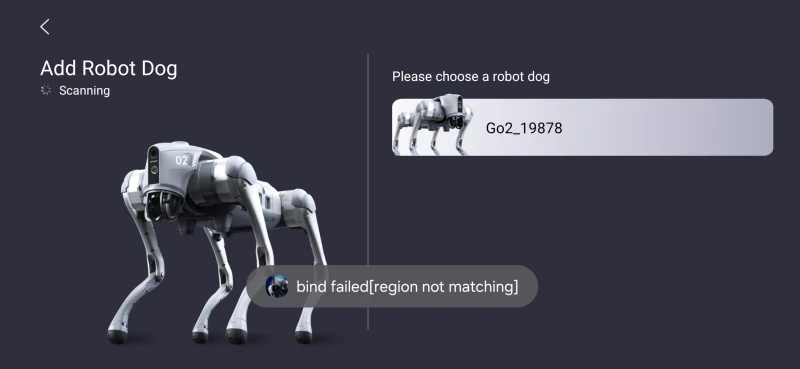

Hello. There was a problem with the Unitree go2 air robot dog. When connecting, it says the region is incorrect
