Summary of Contents for Unitree Go2

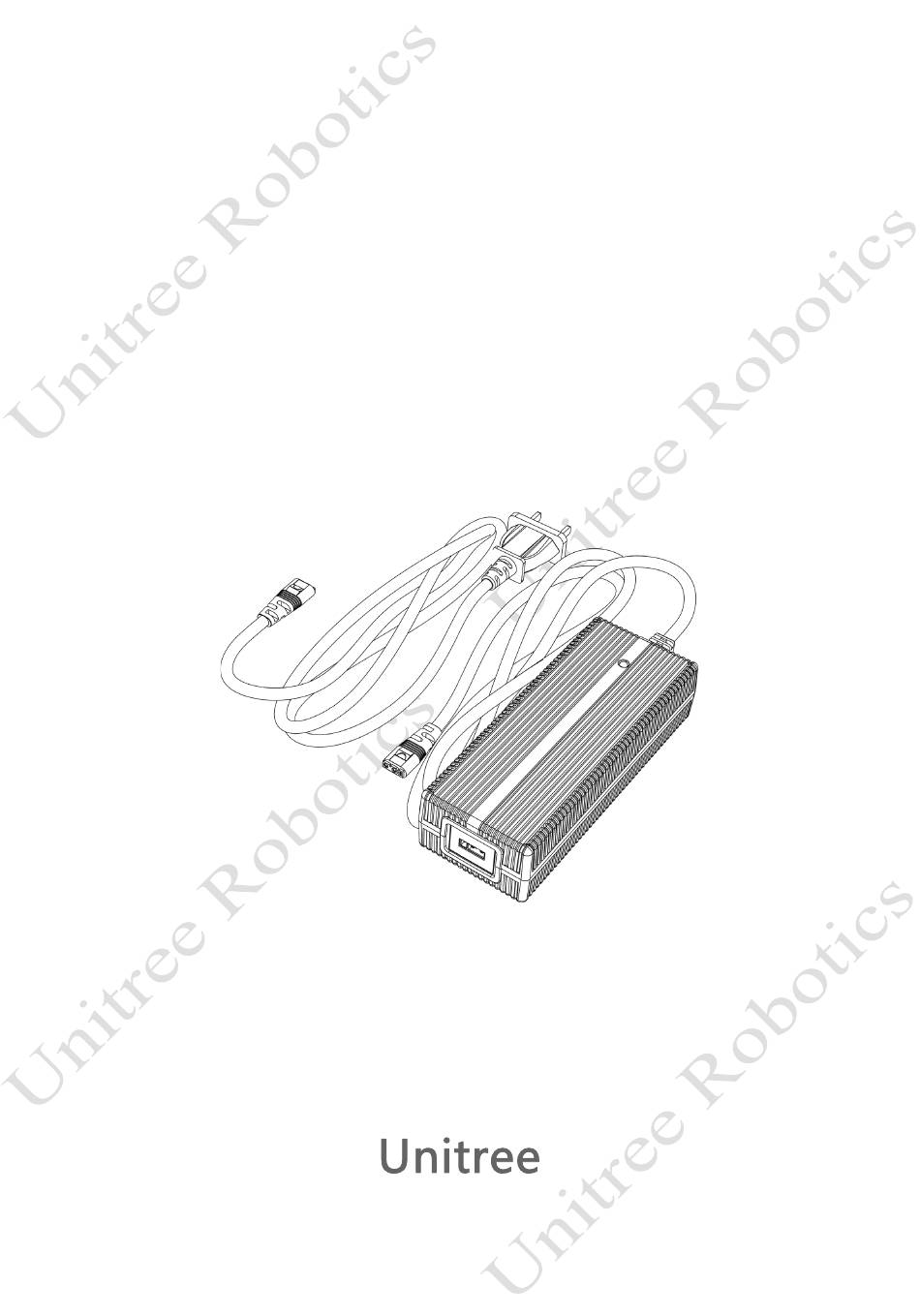

- Page 1 Go2 Battery and Charger User Manual V1.0 www.unitree.com...
-
Page 2: Parts Name

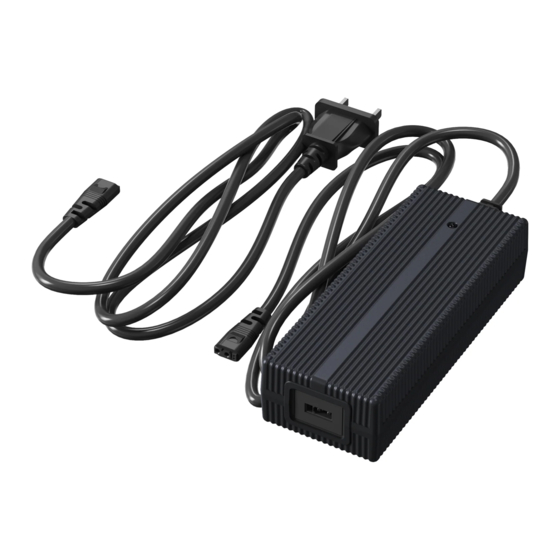

BT2-05 (standard) and BT2-06 (long range). The battery charger is a charging device specifically designed for Go2 batteries, with small size, light weight, and convenient portability, providing stable power to the battery. Battery chargers are divided into two models: standard chargers and fast chargers. -
Page 3: Technical Specification
5) Charging temperature protection: Charging will damage the battery when the battery temperature is below 0°C or above 50°C, and the battery will lead to abnormal charging. © 2023 All rights reserved, Unitree Robotics... -
Page 4: Battery Indicator
Go2 Battery and Charger User Manual 6) Charging electric current protection: High electric current charging will seriously damage the battery. When the charging current is more than 15A, the battery will stop charging. 7) Over-discharge protection: Over-discharge will seriously damage the battery. When the battery is discharged to 24V, the battery will cut off the output. -
Page 5: Force Shutdown
2) Before charging the battery, ensure that the battery is switched off. Otherwise, the battery and charger may be damaged. 3) The users need to remove the battery from the robot itself when charging the battery. © 2023 All rights reserved, Unitree Robotics... - Page 6 Go2 Battery and Charger User Manual 4) When all the indicator lights are off, it indicates that the battery is fully charged. Please remove the battery and charger to complete charging. You can also check the current charging status through the charger indicator.
- Page 7 1) Active discharge: Install the battery into the robot and run to a lower battery (for exam around 65%). 2) Passive discharge: Battery storage self-discharge protection, please refer to "Battery Function" for detailed description. © 2023 All rights reserved, Unitree Robotics...
- Page 8 6) It is forbidden to use batterys not officially provided by Unitree Robotics. If the users need to replace it, please go to the official website of Unitree Robotics for relevant purchase information. Unitree Robotics is not responsible for battery accidents, operation failures and machine damage caused using batterys not officially provided by Unitree Robotics.
- Page 9 5) Please keep the intelligent battery closed when charging. 6) The intelligent battery must be charged with a special charger officially provided by Unitree Robotics. Unitree Robotics will not be responsible for all the consequences caused by using a charger not officially provided by Unitree Robotics.
- Page 10 Go2 Battery and Charger User Manual 6) It is forbidden to store or transport the battery together with glasses, watches, metal necklaces, hairpins, or other metal objects. 7) Do not transport damaged batterys. Once the battery needs to be transported, be sure to discharge the battery to about 65% charge.
