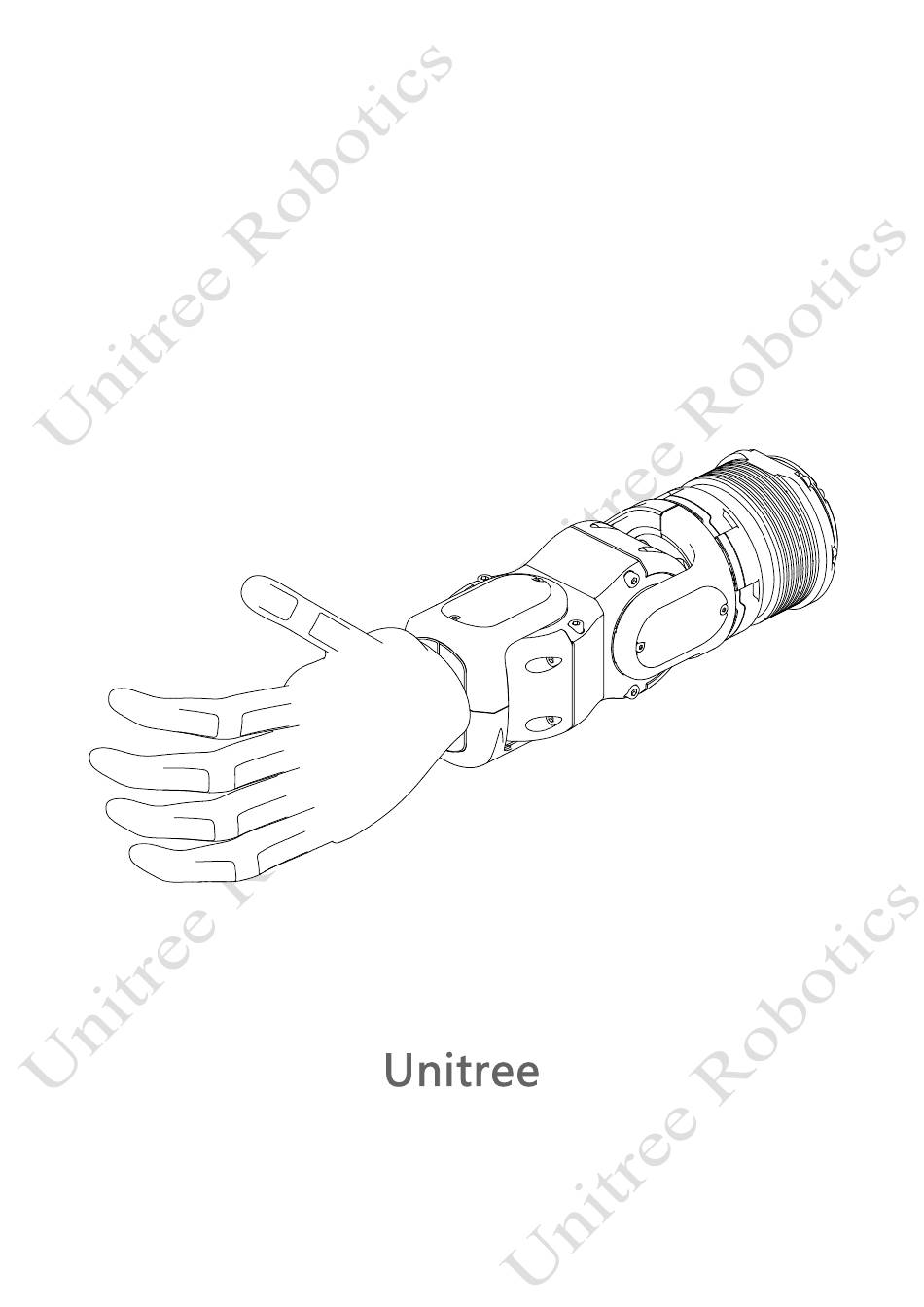

G1- End Prosthetic Hand
Disassembly and Assembly Guide Manual V1.0
This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the
robot in a hazardous manner.
Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.

Advertisement

loading
Need help?

Need help?

Do you have a question about the G1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unitree G1

  • Page 1 This product is a civilian robot. We kindly request that all users refrain from making any dangerous modifications or using the robot in a hazardous manner. Please visit Unitree Robotics Website for more related terms and policies, and comply with local laws and regulations.
  • Page 2 G1 Basic and Standard Versions ......................2 Disassembly Instructions......................2 Step 1: Remove the hand clamp ..................2 Step 2: Remove the prosthetic hand ................. 2 Installation Instructions ......................3 Step 1: Install the prosthetic hand ..................3 Step 2: Install the hand clamp ..................3 G1 Advanced and Flagship Versions ....................
  • Page 3 Remove the six M3 screws (thread length 10mm) on the side of the hand, and take out the clamp, as shown in the following figure. M3 Screws*6 Clamp Step 2: Remove the prosthetic hand © 2024 All rights reserved, Unitree Robotics...
  • Page 4 G1- End Prosthetic Hand Disassembly and Assembly Guide Manual Installation Instructions Step 1: Install the prosthetic hand Step 2: Install the hand clamp Put in the clamp and tighten the six M3 screws (thread length 10mm), as shown in the following figure.
  • Page 5 Cover Plate Step 2: Remove the clamp Remove the two M3 screws (thread length 10mm), and take out the clamp (note to protect the cable), as shown in the following figure. Clamp M3 Screws*2 © 2024 All rights reserved, Unitree Robotics...
  • Page 6 G1- End Prosthetic Hand Disassembly and Assembly Guide Manual Step 3: Remove the prosthetic hand Installation Instructions Step 1: Install the prosthetic hand Put in the prosthetic hand (note to distinguish between the left and right prosthetic hands and the placement direction), as shown in the following figure.
  • Page 7 Put in the cover plate (note to protect the cable) and tighten the two M2 screws (thread length 5mm), as shown in the following figure. M2 Screws*2 Cover Plate Step 4: Complete the installation © 2024 All rights reserved, Unitree Robotics...
