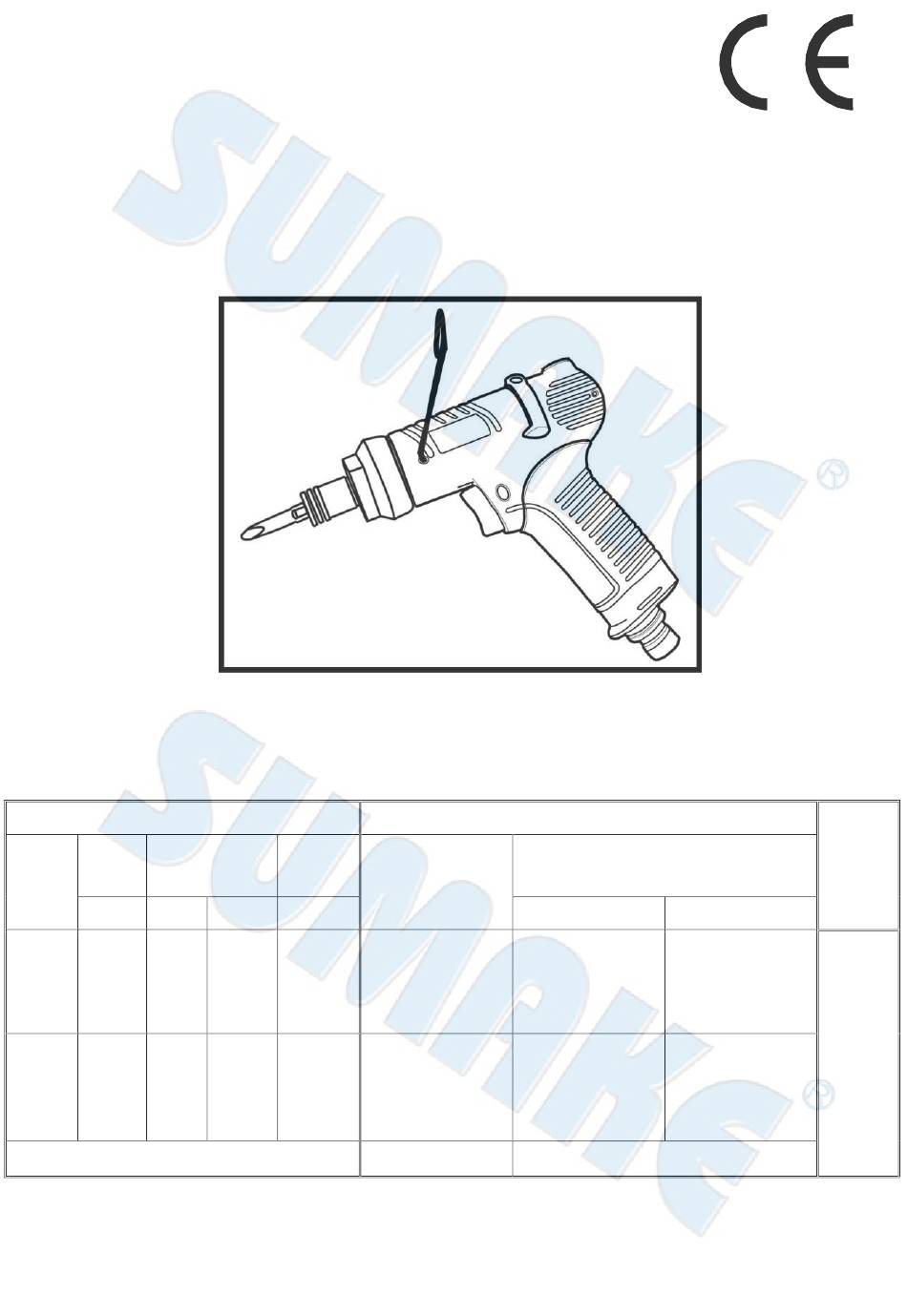

Sumake ADPN39 Original Instructions Manual

Trigger start direct air screwdriver (alu.)

Advertisement

Quick Links

SUMAKE
Trigger Start Direct Air Screwdriver (Alu.)
Specification:
Free
Torque range
Speed
(Hard Joint)
MODEL
r/min
Nm
ADPN39
1600
5.0
ADPN45
750
7.0
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Min. air
hose bore
EN ISO 28927-2
Ft-lb
mm
3.7
5.0
No Load: 0.9 m/s²
5.0
5.0
No Load: 0.9 m/s²
Uncertainty K= 1.5 m/s²
Noise and Vibration:
Vibration
Sound pressure level
No Load: 77.2 dB(A) No Load: 88.2 dB(A)
No Load: 73.9 dB(A) No Load: 84.9 dB(A)
Noise
EN ISO 15744
Sound power level
Uncertainty K= 3Db
ADPN39(45)-S-2111F-MIF
Remark
Please always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADPN39 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sumake ADPN39

  • Page 1 ADPN45 No Load: 0.9 m/s² No Load: 73.9 dB(A) No Load: 84.9 dB(A) impaired hearing! Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 1.5 m/s² Uncertainty K= 3Db ADPN39(45)-S-2111F-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
  • Page 2: Ec Declaration Of Conformity

    DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment: TRIGGER START DIRECT AIR SCREWDRIVER (ALU.) Model/ Serial No.: ADPN39(45) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
  • Page 3 OPERATION MANUAL AIR SUPPLY 1. Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it is desirable to provide a filter and lubricator in the pipeline to remove such undesirable elements. Also take the drain out from air tank every day. 2.
  • Page 4 ADPN39 TRIGGER START DIRECT AIR SCREWDRIVER (ALU.) ADPN39-P-1906C-MI...
  • Page 5: Parts List

    ADPN39 TRIGGER START DIRECT AIR SCREWDRIVER (ALU.) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5L2035 Pistol Housing [Sky Blue] 1P2131 14T Plant Gear 7Q2008 O Ring 1P2294 Fourth Gear Cage 2C2003-A Blank Cap 1S2069 Internal Gear 7Q2006...
  • Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
  • Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
  • Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
  • Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.

This manual is also suitable for:

Adpn45
