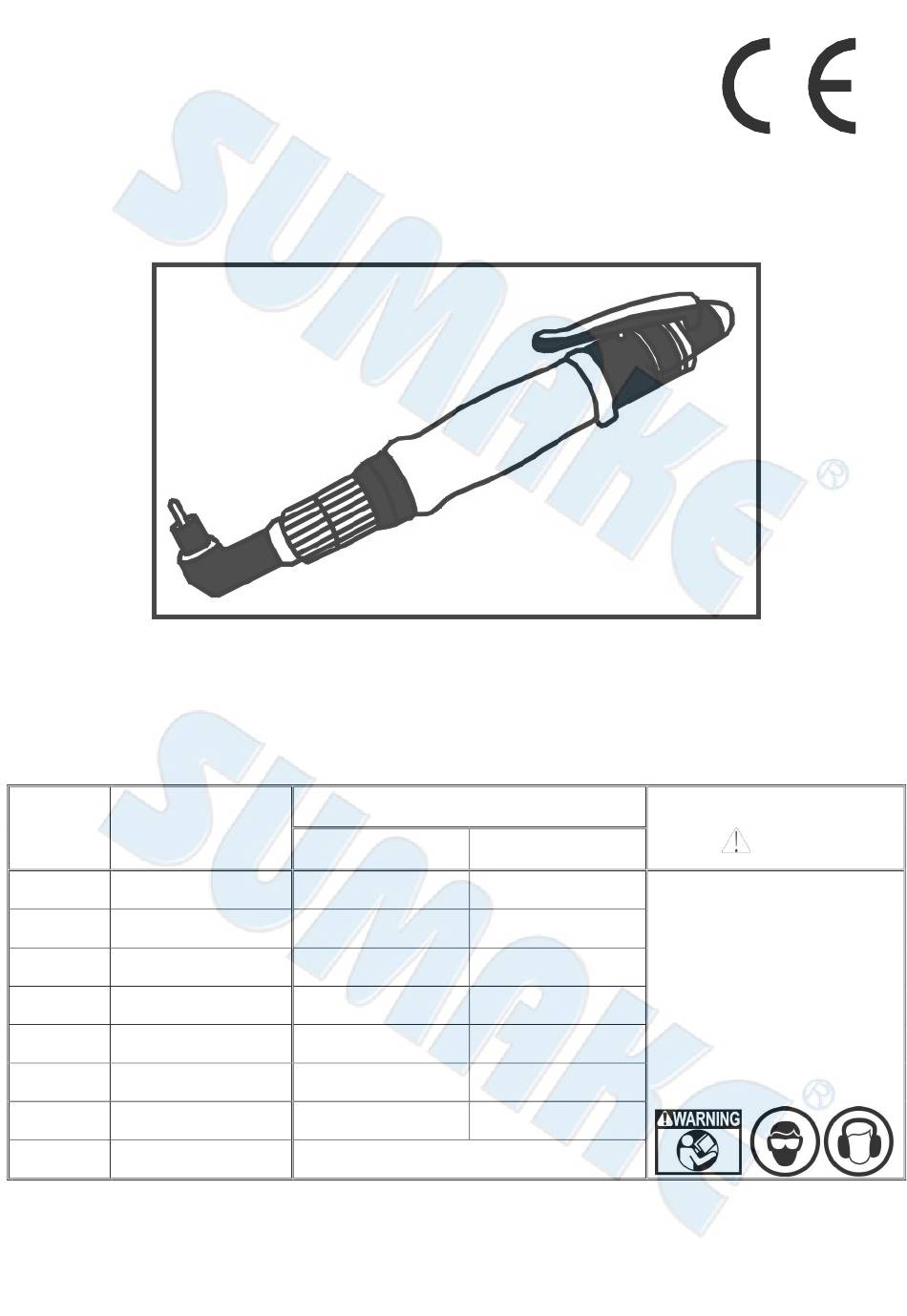

SUMAKE

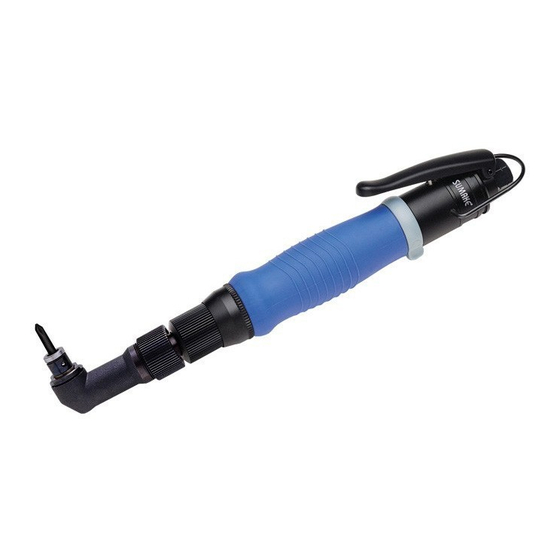

Shut Off Air Composite Screwdriver
Test result according to
Vibration
MODEL
EN ISO 28927-2
CA10
No Load: 0.4 m/s2
CA20
No Load: 0.9 m/s2
CA30
No Load: 0.9 m/s2
CA35
No Load: 0.9 m/s2
CA38
No Load: 0.9 m/s2
CA40
No Load: 0.9 m/s2
CA45
No Load: 1.1 m/s2
Uncertainty K= 1.5 m/s²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
PNEUMATIC TOOLS
(Angle Type-Lever Start)
EN ISO 11148-6:2012
Noise : EN ISO 15744
Sound pressure level
No Load: 68 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 75 dB(A)
No Load: 73 dB(A)
Uncertainty K= 3dB
Sound power level
1-
No Load: 79 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
2-
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 86 dB(A)
No Load: 84 dB(A)
CA10(20)(30)(35)(38)(40)(45)-S-2301G-MI
Safety Instructions
Warning
Read this manual and
understand all safety
instructions before operation
the tool.
Wear an approved
ear-protector and gloves while
operating tool.
F
Advertisement
Related Manuals for Sumake CA10
Summary of Contents for Sumake CA10
- Page 1 No Load: 0.9 m/s2 No Load: 75 dB(A) No Load: 86 dB(A) CA45 No Load: 1.1 m/s2 No Load: 73 dB(A) No Load: 84 dB(A) Uncertainty K= 1.5 m/s² Uncertainty K= 3dB CA10(20)(30)(35)(38)(40)(45)-S-2301G-MI SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： SHUT OFF AIR COMPOSITE SCREW DRIVER(ANGLE TYPE-LEVER START) Model/ Serial No.：CA10(20)(30)(35)(38)(40)(45) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 AIR SCREWDRIVER OPERATION MANUAL For safety use, Please Follow the instructions. The operation without your local regulations may cause serious injury. Read thoroughly and understand this instruction manual and keep this within reach for future reference. Torque Indication Ring Silencer Air Inlet Oil Daily Valve reverse Color Ring...
- Page 4 CA30 SHUT OFF AIR COMPOSITE SCREW DRIVER (ANGLE TYPE-LEVER START) CA30-P-2307C-MI...
-
Page 5: Parts List
CA30 SHUT OFF AIR COMPOSITE SCREW DRIVER (ANGLE TYPE-LEVER START) PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 5A3037 End Housing 6N2105 Spring 2S3010 Inner Bushing 2P3020 Silencer 2S3001 Outer Bushing 5A2001 Lever Set 7Q2017 Valve O-Ring 5L3102 Lever 6N2108 Spring... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
