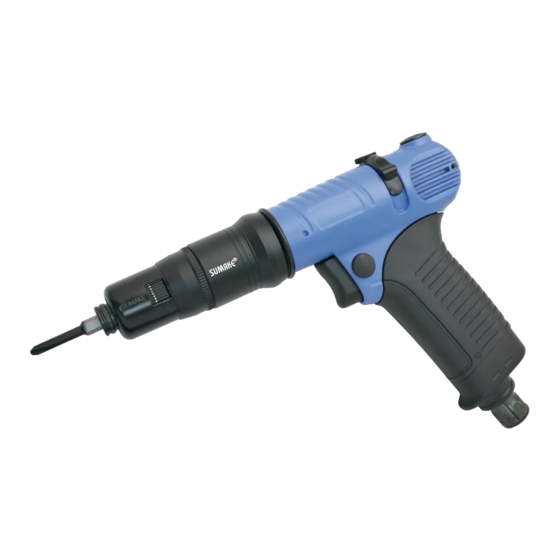

Trigger Start-Shut Off Air Screwdriver (Alu.)

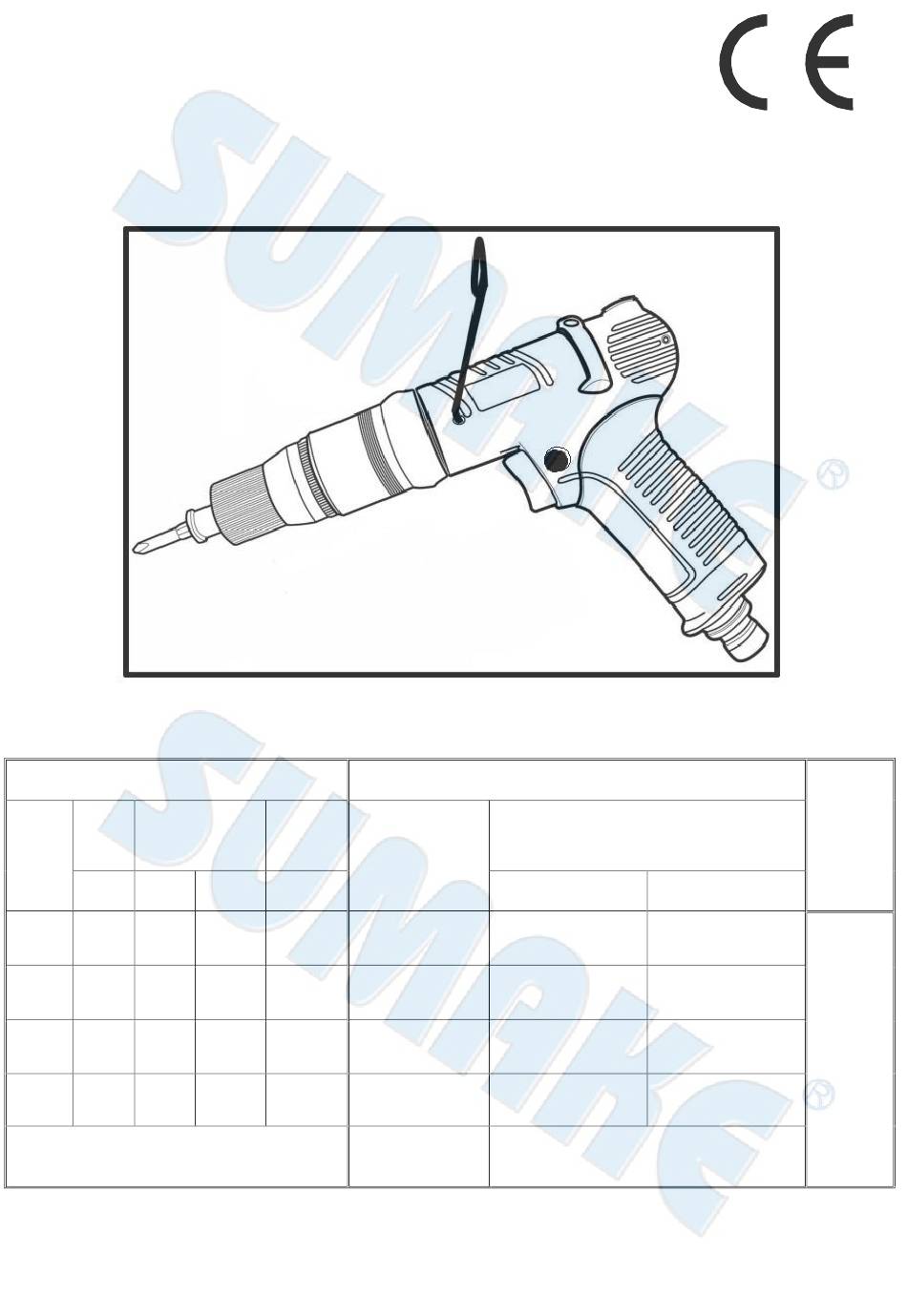

Specification:
Free
Torque range
Speed
MODEL
r/min
Nm
ABP35
2200
0.3-2.0
ABP38
1800
0.3-2.5
ABP41
1000
0.5-3.5
ABP47
550
1-5
Recommend Air Pressure: 6.0 kg/cm²
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
.
Min. air
hose bore
(±3%)
Kgf-cm
mm
3-20
5.0
3-25
5.0
5-35
5.0
10-50
5.0
PNEUMATIC TOOLS
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound pressure level
No Load: 1.0 m/s²
No Load: 73 dB(A)
No Load: 1.0 m/s²
No Load: 73 dB(A)
No Load: 1.0 m/s²
No Load: 73 dB(A)
No Load: 1.0 m/s²
No Load: 73 dB(A)
Uncertainty
K= 1.5 m/s²
Noise
EN ISO 15744
Sound power level
No Load: 84 dB(A)
No Load: 84 dB(A)
No Load: 84 dB(A)
No Load: 84 dB(A)
Uncertainty K= 3dB
ABP35(38)(41)(47)-S-2111F-MIF
Remark
P
lease always
wear ear
protector at
environment
noise level >
80 dB(A) due
to risk of
impaired
hearing!
Advertisement
Related Manuals for Sumake ABP35
Summary of Contents for Sumake ABP35
- Page 1 ABP47 10-50 No Load: 1.0 m/s² No Load: 73 dB(A) No Load: 84 dB(A) impaired hearing! Uncertainty Recommend Air Pressure: 6.0 kg/cm² Uncertainty K= 3dB K= 1.5 m/s² ABP35(38)(41)(47)-S-2111F-MIF SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：TRIGGER START-SHUT OFF AIR SCREWDRIVER (ALU.) Model/ Serial No.：ABP35(38)(41)(47) to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ... - Page 3 OPERATION MANUAL AIR SUPPLY 1. Air tools are adversely affected by moisture. Since air from compressor contains much moisture and dust, it is desirable to provide a filter and lubricator in the pipeline to remove such undesirable elements. Also take the drain out from air tank every day. 2.
- Page 4 ABP41 TRIGGER START-SHUT OFF AIR SCREWDRIVER (ALU.) ABP41-P-2308B6-MI...
-
Page 5: Parts List
ABP41 TRIGGER START-SHUT OFF AIR SCREWDRIVER (ALU.) PARTS LIST No. Parts No. Description Q'ty No. Parts No. Description Q'ty 5L2035 Pistol Housing (Sky Blue) 3S2227 Slide Base 2C2002-A Blank Cap 6N3064 Torque Spring 7Q2008 O Ring 2S7121 Washer 7S2106-1 Screw 2S2240 Anvil Bushing 7Q2007... - Page 6 SCREWDRIVER Original instructions SUMAKE Industrial Co. Ltd.
- Page 7 Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 8 2. While using an assembly power tool for threaded fasteners, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3.
- Page 9 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
